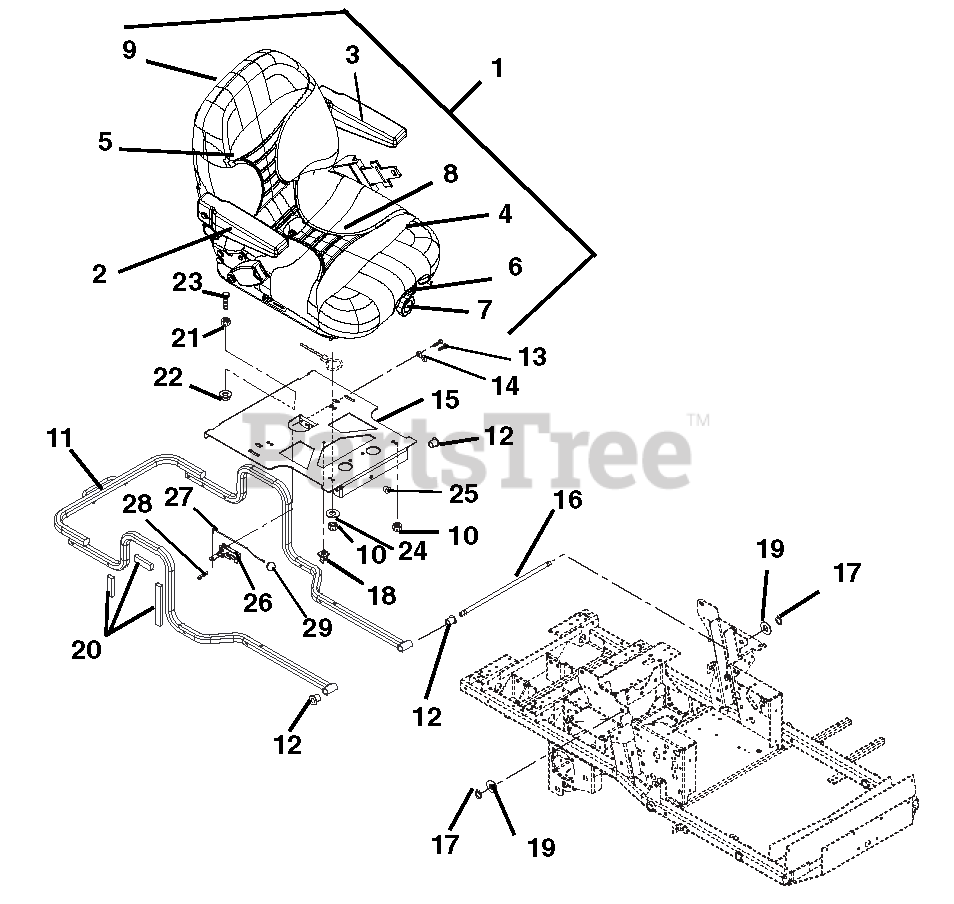

992196 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu (SN: 000101 & Above) Seat Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu

Seat Parts Diagram

  • Title

1

Gravely 04052900

SEAT,SUSP,W/SEAT BELT,LT GRY
(Superseded to 09680600)

$

$

Not available

2

Gravely 59210400

KIT-RH ARMREST ASSEMBLY REPLAC

$148.99

$

Usually ships in 4-12 days

0

3

Gravely 59210500

KIT-LH ARMREST ASSEMBLY REPLAC

$148.99

$

Usually ships in 4-12 days

0

4

Gravely 59208900

KIT-SEAT CUSHION-LIGHT GRAY

$275.99

$

In Stock, only 2 left!

0

5

Gravely 59208800

KIT-BACK CUSHION-LIGHT GRAY

$451.99

$

Usually ships in 4-12 days

0

6

Gravely 59207900

KIT-SEAT SLIDE

$

$

Not available

7

Gravely 59208000

KIT-SEAT KNOB

$36.99

$

Usually ships in 4-12 days

0

8

Gravely 59207800

KIT-SPRING AND SADDLE

$195.99

$

Usually ships in 4-12 days

0

9

Gravely 59208100

KIT-SEAT BACK PANEL

$187.99

$

Usually ships in 4-12 days

0

10

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 04046553

WMT-HOOD FRAME - RED

$

$

Not available

12

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$3.49

$

In Stock, Qty 20+

0

13

Gravely 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$2.49

$

In Stock, only 2 left!

0

14

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 04044851

PLATE, SEAT 200 XDZ WITH LATCH

$111.99

$

Usually ships in 4-12 days

0

16

Gravely 09245400

ROD - SEAT FRAME PIVOT

$138.99

$

Usually ships in 4-12 days

0

17

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$3.49

$

In Stock, Qty 14

0

18

Gravely 00367900

ROUTING CLIP (1/2" ID)

$2.49

$

In Stock, Qty 5

0

19

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 00932300

VHB TAPE 4941F

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$5.49

$

In Stock, only 2 left!

0

22

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 05962000

@BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$5.49

$

In Stock, Qty 11

0

24

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$5.49

$

In Stock, Qty 14

0

25

Gravely 05500020

BUSHING, POLYLINER-.38 SNAPIN

$3.49

$

In Stock, Qty 20+

0

26

Gravely 04054600

LATCH-ROTARY-PUSH TO CLOSE

$25.99

$

Usually ships in 4-12 days

0

27

Gravely 04058100

ROD-SEAT LATCH RELEASE

$23.99

$

Usually ships in 4-12 days

0

28

Gravely 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$1.49

$

In Stock, Qty 6

0

29

Gravely 07520500

KNOB,

$23.99

$

Usually ships in 4-12 days

0
