992197 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki, CARB (SN: 020000 - 021999) Deck, Belts, Blades And Spindles Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki, CARB

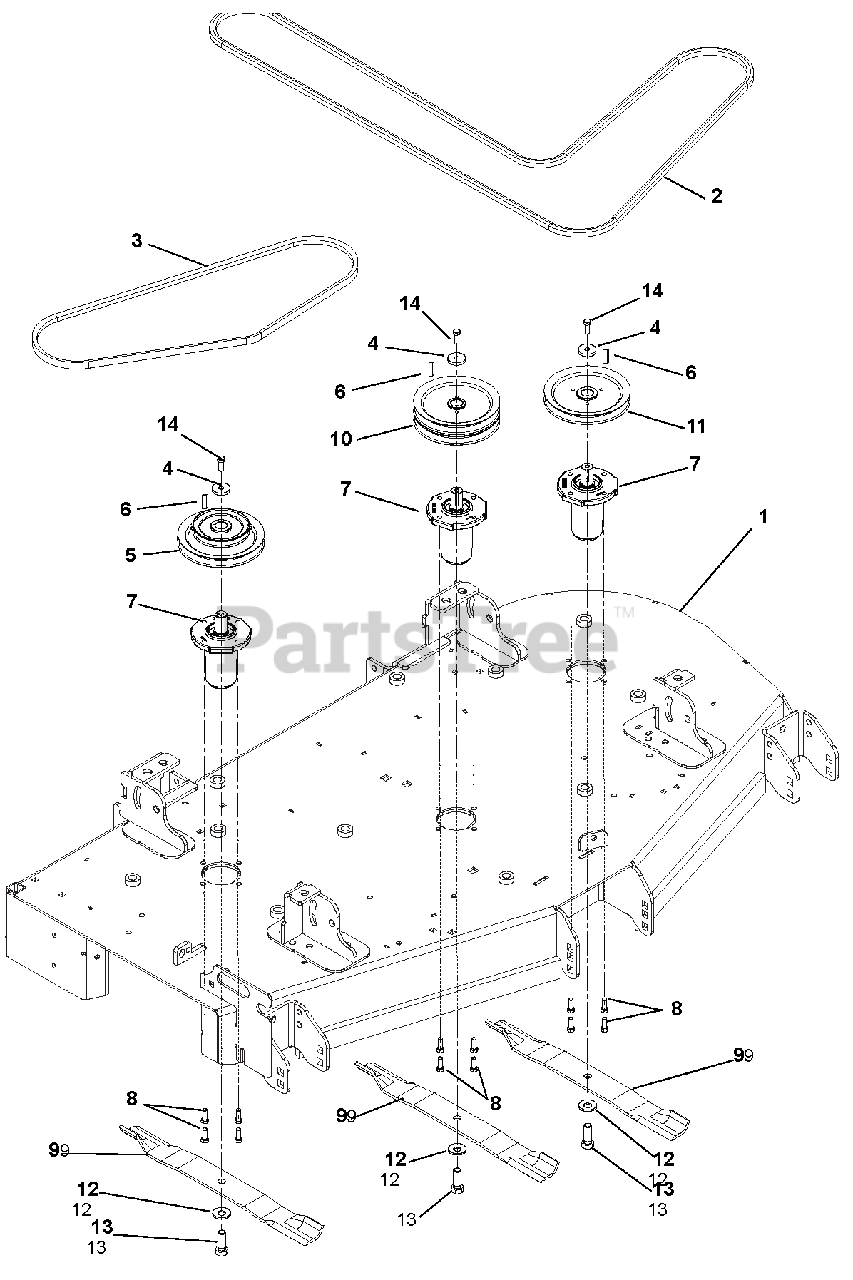

Deck, Belts, Blades And Spindles Parts Diagram

  • Title

1

Gravely 04547553

WMT, 60" SIDE DISCHARGE DECK
(Superseded to 59220800)

Note: (992201, 203, 204, 198)

$1187.99

$

Usually ships in 4-12 days

0

Gravely 04547853

WMT, 52" SIDE DISCHARGE DECK
(Superseded to 59220700)

Note: (992200, 205, 197)

$830.99

$

Usually ships in 4-12 days

0

Gravely 04531053

WMT, 72" SIDE DISCHARGE DECK

Note: (992206)

$

$

Not available

2

Gravely 07200510

HEX BELT, BB-WRAPPED

Note: (992201, 203, 204, 198)

$151.99

$

In Stock, Qty 20+

0

Gravely 07200509

HEX BELT, BB-WRAPPED

Note: (992200, 205, 197)

$134.99

$

In Stock, Qty 10

0

Gravely 07200616

HEX BELT, BB WRAPPED

Note: (992206)

$160.99

$

In Stock, only 1 left!

0

3

Gravely 07200038

V-BELT, B-COGGED

Note: (992201, 203, 204, 198)

$68.99

$

In Stock, Qty 20+

0

Gravely 07200036

V-BELT, B-COGGED

Note: (992200, 205, 197)

$63.99

$

In Stock, Qty 20+

0

Gravely 07200515

V-BELT, COGGED B-RAW EDGE

Note: (992206)

$59.99

$

In Stock, Qty 20+

0

4

Gravely 04530500

RETAINER, SHEAVE

$9.49

$

In Stock, Qty 20+

0

5

Gravely 07329167

PULLEY, DBL-1"IDX6.75"&4.25"OD

Note: (992201, 203, 204, 198)

$87.99

$

In Stock, Qty 19

0

Gravely 07332267

PULLEY, DOUBLE-1"IDX3.50"&6.0

Note: (992200, 205, 197)

$81.99

$

In Stock, Qty 10

0

Gravely 07338067

SHV-DBL 1.00"IDX8.25"&5.75"OD
(Superseded to 59217500)

Note: (992206)

$120.99

$

Usually ships in 4-12 days

0

6

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

7

Gravely 59215400

ASM, MAINT FREE SPINDLE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

8

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 09081200

BLADE, MOWER (20.50")

Note: (20.50") (992201, 203, 204, 198)

$29.99

$

In Stock, Qty 20+

0

Gravely 00450300

BLADE, 18.00" MOWER (HI-LIFT)

Note: (HI-LIFT) (992200, 205, 197)

$29.99

$

In Stock, Qty 20+

0

Gravely 00273100

BLADE, MULCH 18.00"

Note: (992200, 205, 197)

$26.99

$

In Stock, Qty 20+

0

Gravely 08866900

BLADE, MULCHING (20.50")

Note: (992201, 203, 204, 198)

$37.99

$

In Stock, Qty 6

0

Gravely 09290500

BLADE, MOWER-72" (24.50" LG)

Note: (992206)

$37.99

$

Usually ships in 4-12 days

0

Gravely 09290600

BLADE,MOWER-72"MULCH(24.5"LG)

Note: (992206)

$37.99

$

In Stock, Qty 18

0

10

Gravely 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

Note: (992201, 203, 204, 198)

$93.99

$

In Stock, Qty 20+

0

Gravely 07332367

PULLEY, DOUBLE
(Superseded to 07332300)

Note: (992200, 205, 197)

$80.99

$

In Stock, Qty 16

0

Gravely 07337667

SHEAVE-DOUBLE 1.00"IDX8.25"OD
(Superseded to 07337600)

Note: (992206)

$131.99

$

In Stock, only 2 left!

0

11

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

Note: (992201, 203, 204, 198)

$84.99

$

In Stock, Qty 20+

0

Gravely 07332167

PULLEY, SINGLE-1"ID X 6" OD
(Superseded to 59211700)

Note: (992200, 205, 197)

$83.99

$

In Stock, Qty 13

0

Gravely 07337767

SHEAVE-SINGLE 1.00"IDX8.25"OD
(Superseded to 07337700)

Note: (992206)

$93.99

$

In Stock, only 1 left!

0

12

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

13

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.99

$

In Stock, Qty 20+

0
