992197 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki, CARB (SN: 022000 & Above) Fuel System Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki, CARB

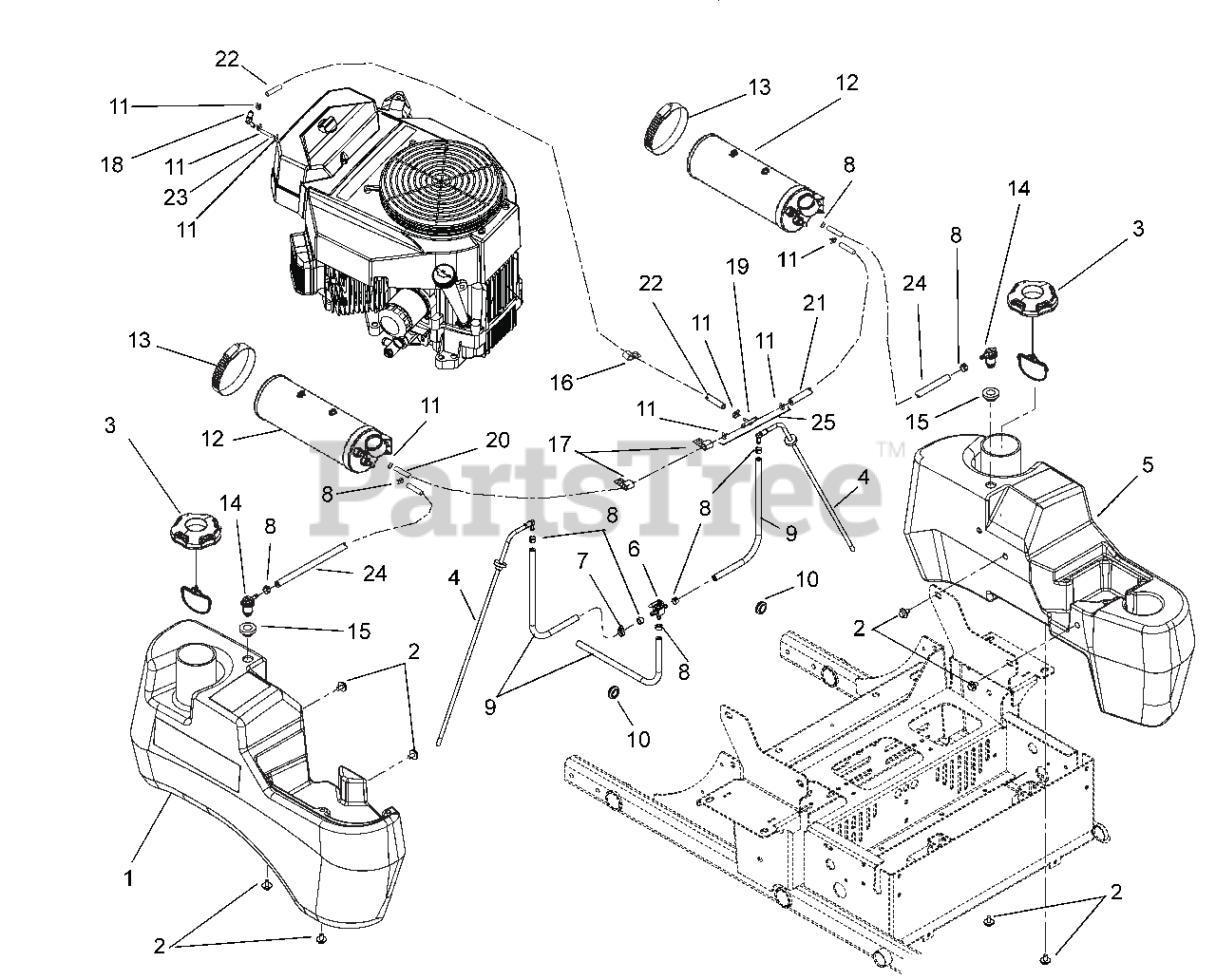

Fuel System Parts Diagram

  • Title

1

Gravely 04340800

TANK-RH LARGE GRAVELY FUEL
(Superseded to 04341200)

$

$

Not available

2

Gravely 07000018

BOLT, SEMS .31-18 X .62

$4.99

$

In Stock, Qty 20+

0

3

Gravely 04558100

CAP, FUEL NONVENT AUTOLOCK

$23.99

$

In Stock, only 1 left!

0

4

Gravely 03900200

ASS'Y, LARGE TANK FUEL PICK-UP
(Superseded to 04320800)

$36.99

$

In Stock, Qty 5

0

5

Gravely 04340900

TANK-LH LARGE GRAVELY FUEL
(Superseded to 04341300)

$

$

Not available

6

Gravely 09233600

VALVE - FUEL
(Superseded to 09164400)

$48.99

$

Usually ships in 4-12 days

0

7

Gravely 00367900

ROUTING CLIP (1/2" ID)

Note: (1/2" ID)

$2.49

$

In Stock, Qty 5

0

8

Gravely 03278800

CLAMP, FUEL LINE

$1.99

$

In Stock, Qty 20+

0

9

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07500031

GROMMET,RUBBER 5/8 ID/1.13 OD

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 04097700

CLAMP-HOSE, SPRING .188

$2.49

$

In Stock, Qty 5

0

12

Gravely 04545900

CANISTER, CARBON 9.3G CAP.

$84.99

$

Usually ships in 4-12 days

0

13

Gravely 06940200

CLAMP-HOSE,WORM 2.3/3.2 SS #44

$4.99

$

Usually ships in 4-12 days

0

14

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$19.99

$

In Stock, only 1 left!

0

15

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$4.99

$

In Stock, Qty 20+

0

16

Gravely 06909400

J-CLAMP

$4.99

$

In Stock, only 2 left!

0

17

Gravely 00367900

ROUTING CLIP (1/2" ID)

$2.49

$

In Stock, Qty 5

0

18

Gravely 04503800

90 DEG 3/16" HOSE ELBOW

$

$

Not available

19

Gravely 04571200

ASSM, VAPOR LINE (CARB)

$

$

Not available

20

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

21

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

22

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

23

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

24

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

25

Gravely 04571200

ASSM, VAPOR LINE (CARB)

Note: (CARB) (Includes items 11,18, 20, 21, 22, 23)

$

$

Not available
