992198 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki, CARB (SN: 022000 & Above) Fuel System Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki, CARB

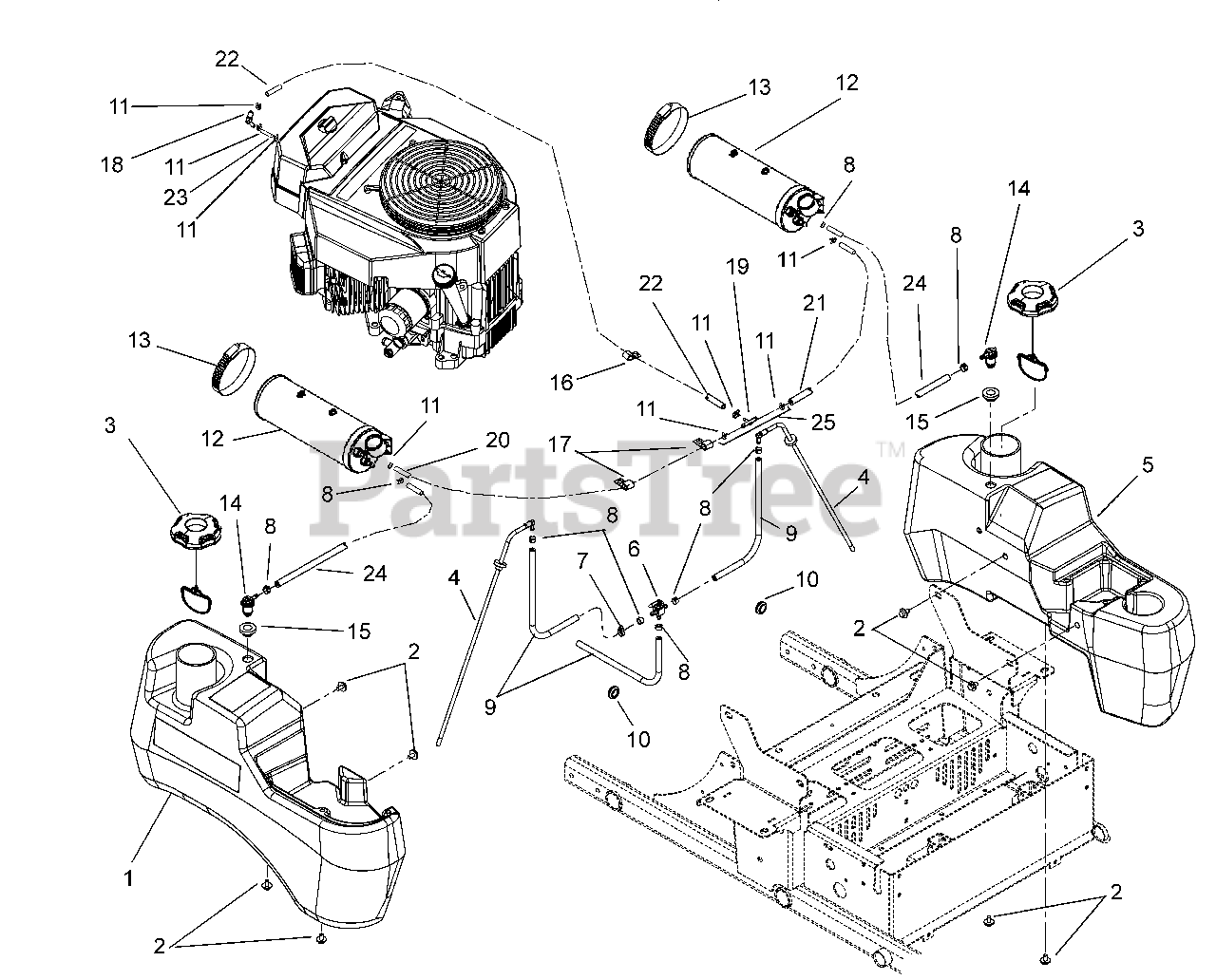

Fuel System Parts Diagram

  • Title

1

Gravely 04340800

Tank, Right Hand Fuel
(Superseded to 04341200)

$

$

Not available

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 04558100

Cap, Fuel, Non-Vented Autolock

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 03900200

Assembly, Large Tank Fuel Pick-Up
(Superseded to 04320800)

$34.99

$

In Stock, only 1 left!

0

5

Gravely 04340900

Tank, Left Hand Fuel
(Superseded to 04341300)

$230.99

$

Usually ships in 4-12 days

0

6

Gravely 09233600

Valve, Fuel
(Superseded to 09164400)

$53.99

$

In Stock, only 2 left!

0

7

Gravely 00367900

Routing Clip (1/2" ID)

Note: (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

8

Gravely 03278800

Clamp, Fuel Line .25

$1.49

$

In Stock, Qty 8

0

9

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$0.99

$

In Stock, Qty 20+

0

10

Gravely 07500031

Grommet, Rubber 5/8 ID/1.13 OD

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 04097700

Clamp, Hose, Spring .188

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 04545900

Canister, Carbon 9.36 Cap

$78.99

$

Usually ships in 4-12 days

0

13

Gravely 06940200

Clamp, Worm Hose 2.3/3/2 SS #44

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 04068910

Valve, Combination
(Superseded to 05185600)

$13.99

$

In Stock, only 2 left!

0

15

Gravely 04082700

Grommet, Remote Vent Nitrile

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 11

0

17

Gravely 00367900

Routing Clip, .50 ID

$1.49

$

In Stock, only 1 left!

0

18

Gravely 04503800

Hose, Elbow 90° .188

$

$

Not available

19

Gravely 04571200

Assembly, Vapor Line

$

$

Not available

20

Gravely 03375900

Hose, .188 Low-Perm Bulk Gas

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 03375900

Hose, .188 Low-Perm Bulk Gas

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 03375900

Hose, .188 Low-Perm Bulk Gas

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 03375900

Hose, .188 Low-Perm Bulk Gas

$3.49

$

Usually ships in 4-12 days

0

24

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$0.99

$

In Stock, Qty 20+

0

25

Gravely 04571200

Vapor Line Assembly (CARB) (Includes items 11,18, 20, 21, 22, 23)

Note: (CARB) (Includes items 11,18, 20, 21, 22, 23)

$

$

Not available
