992200 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 030000 - 030999) Deck Lift - Left Hand Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

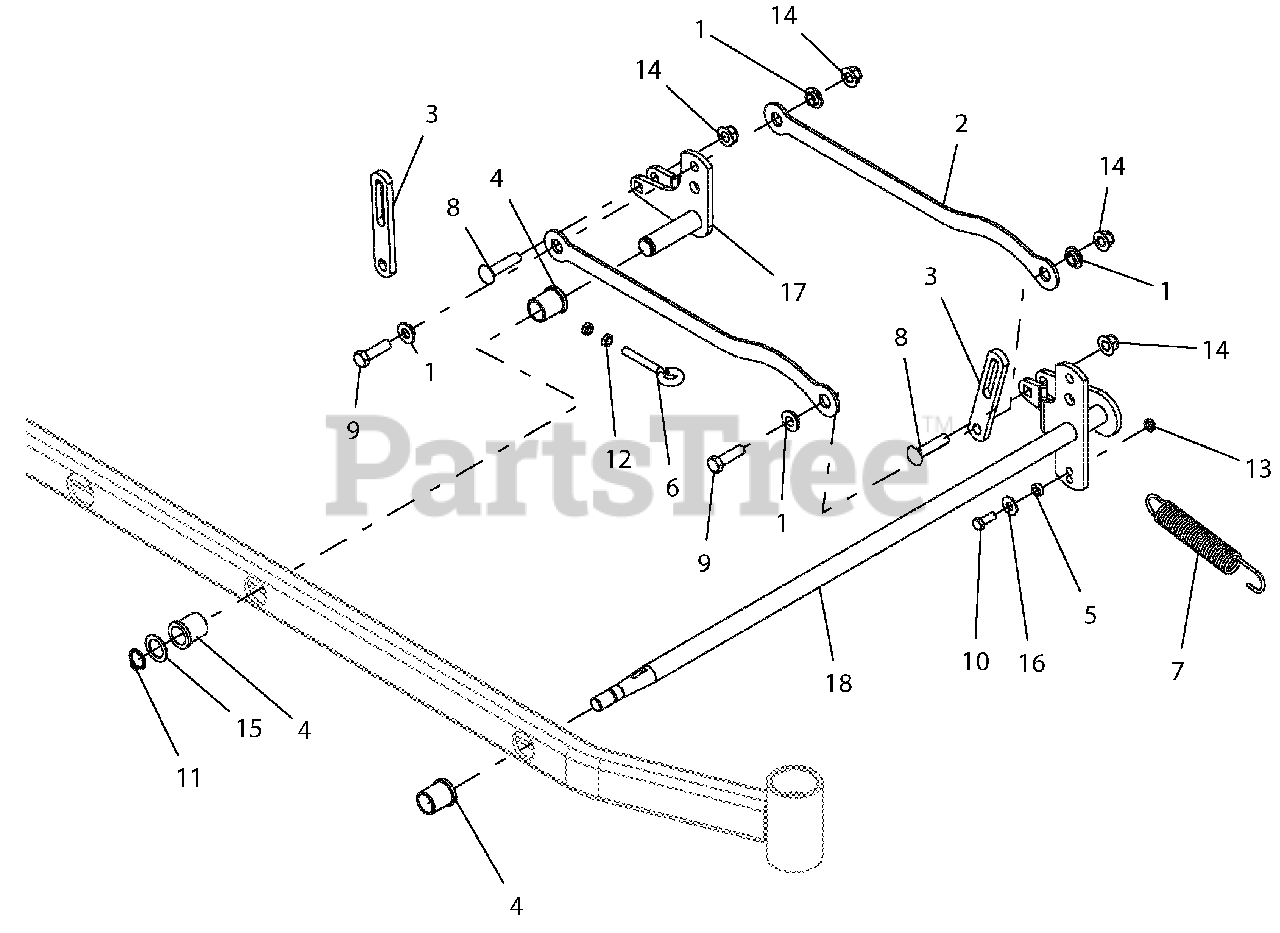

Deck Lift - Left Hand Parts Diagram

  • Title

1

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.99

$

In Stock, Qty 13

0

2

Gravely 04660351

LINK, LIFT

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 04732400

LINK-DECK LIFT - LONG

$17.99

$

Usually ships in 4-12 days

0

4

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$7.99

$

In Stock, Qty 20+

0

5

Gravely 05508900

BSHG-SLV .377X.624X.235

$9.99

$

In Stock, only 2 left!

0

6

Gravely 07030000

BLT-EYE .375-16X2.50 YWZC

$8.49

$

In Stock, Qty 6

0

7

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$34.99

$

In Stock, Qty 20+

0

8

Gravely 06200119

BLT-RDHDSQNK .50-13X2.25 G5YZ
(Superseded to 06200423)

$3.99

$

In Stock, Qty 5

0

9

Gravely 05970600

@BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$3.49

$

In Stock, Qty 9

0

12

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 03858100

WMT, LH REAR DECK LIFT

$110.99

$

Usually ships in 4-12 days

0

18

Gravely 04672367

PT200 FRT LH DECK LIFT ARM WMT

$197.99

$

Usually ships in 4-12 days

0
