992200 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 030000 - 030999) Frame, Bumper, Sub-Frame And Footplate Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

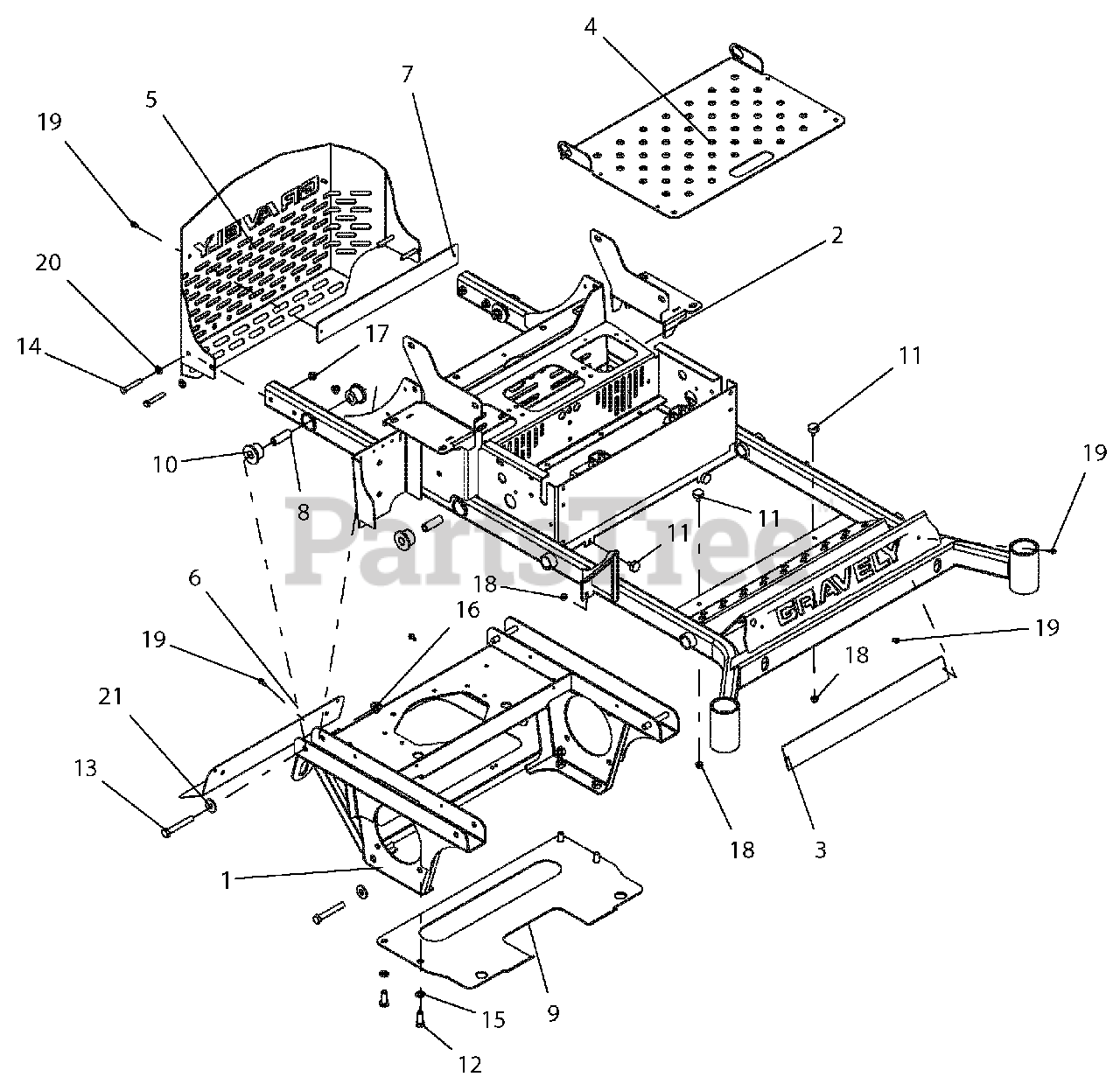

Frame, Bumper, Sub-Frame And Footplate Parts Diagram

  • Title

1

Gravely 03855553

PT200/400 AXLE/ENG FRM WMT-RED

$619.99

$

Usually ships in 4-12 days

0

2

Gravely 59221400

PT200 FRAME W/SAFETY DECALS

$

$

Not available

3

Gravely 03828551

BUMPER NAME BACKER PLATE-BLACK

$

$

Not available

4

Gravely 03862351

INSPECTION PANEL - BLACK

$97.99

$

Usually ships in 4-12 days

0

5

Gravely 59218000

PRO-TURN 200 BUMPER W/DECALS

$250.99

$

Usually ships in 4-12 days

0

6

Gravely 03948151

MUFFLER HEAT SHIELD - BLACK

$73.99

$

Usually ships in 4-12 days

0

7

Gravely 03948251

BUMPER BACKER PLATE - BLACK

$18.99

$

Usually ships in 4-12 days

0

8

Gravely 03985600

BSHG-SLV .50X.75X2.23

$9.99

$

Usually ships in 4-12 days

0

9

Gravely 04524553

PLATE-TRANSMISSION SKID

$81.99

$

Usually ships in 4-12 days

0

10

Gravely 05500924

BSHG-FLG .75X1.51X1.13X2.0 URE

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

12

Gravely 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

13

Gravely 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

14

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0
