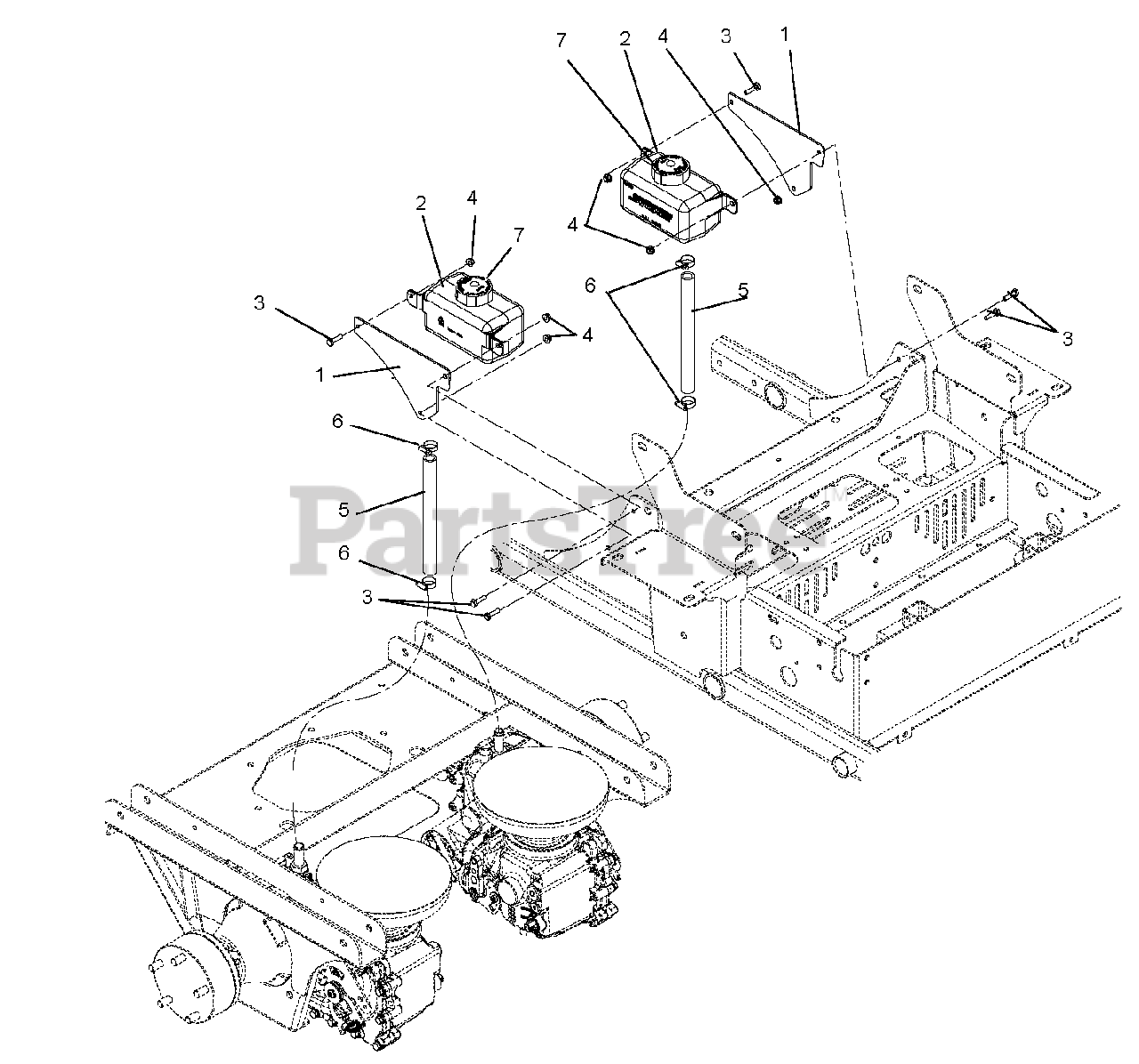

992201 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 022000 - 029999) Overflow Tanks Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

Overflow Tanks Parts Diagram

  • Title

1

Gravely 03918253

Plate, Hydro Overflow Tank Mounting

$19.99

$

In Stock, only 1 left!

0

2

Gravely 03947000

Tank, Hydraulic 1000ML

$35.99

$

In Stock, Qty 12

0

3

Gravely 05947700

Bolt, Hex .25-20 x 1.00 Grade 5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

4

Gravely 06500012

Nut, Locking Nyloc Flange .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 8

0

5

Gravely 03986400

Hose, Hydro Overflow

$17.99

$

In Stock, only 1 left!

0

6

Gravely 06923500

Clamp, .88 Dia. Hose

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 21544042

Cap, Hydro Reservoir REPLAC.

$24.99

$

Usually ships in 4-12 days

0
