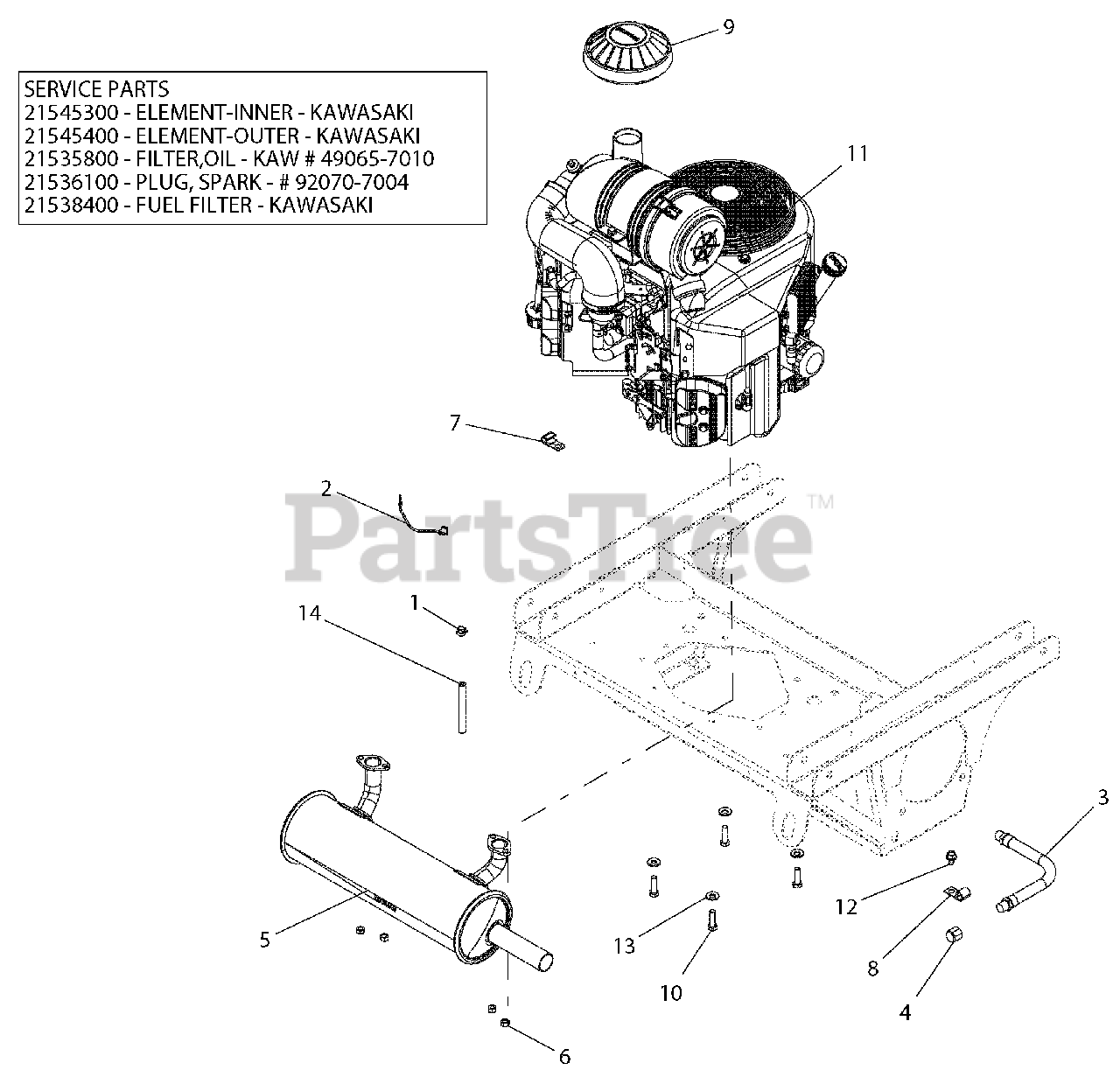

992201 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 031000 - 039999) Engine - Kawasaki FX751 Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

Engine - Kawasaki FX751 Parts Diagram

  • Title

1

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

2

Gravely 03286700

LEAD - STARTER SOLENOID

$9.49

$

In Stock, only 1 left!

0

3

Gravely 03873100

HOSE, HYD .38-11-0K M6N0-M6NO
(Superseded to 07001829)

$17.99

$

In Stock, only 1 left!

0

4

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

5

Gravely 03911000

MUFFLER, 27-31 FX KAW
(Superseded to 09386000)

$168.99

$

In Stock, only 1 left!

0

6

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

7

Gravely 06909400

CLAMP, J

$3.49

$

In Stock, Qty 11

0

8

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 09408700

CAP, AIR CLEANER INTAKE (2")

Note: (2")

$56.99

$

In Stock, only 1 left!

0

10

Gravely 05901522

BLT-HEX .38-16X1.25 GR5 YWZC NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 5

0

11

Gravely 08200723

ENGINE, KAWASAKI FX751

$

$

Not available

12

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

13

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 03278100

.25 LOW-PERM GAS HOSE 19.00" LG - RH TANK TO VALVE

$0.99

$

In Stock, Qty 20+

0
