992203 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 020000 - 021999) Anti-Scalp Rollers Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

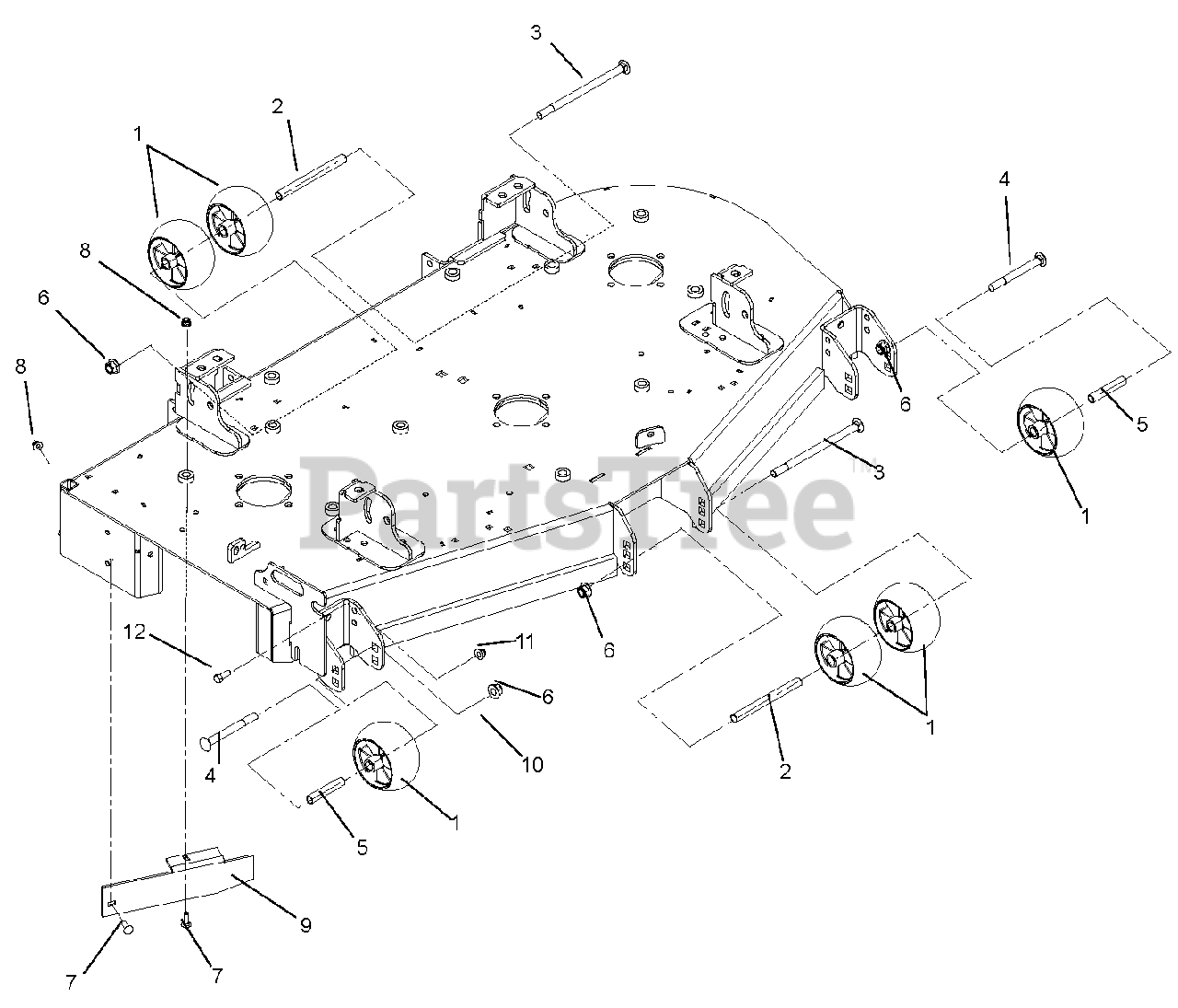

Anti-Scalp Rollers Parts Diagram

  • Title

1

Gravely 03905900

Anti-Scalp Wheel, 5 x 3 Center

$13.99

$

In Stock, Qty 20+

0

2

Gravely 00473800

Spacer, .510 x .625 x 6.70

$22.99

$

In Stock, Qty 20+

0

3

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$7.99

$

In Stock, Qty 20+

0

4

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00
(Superseded to 06200505)

$

$

Not available

5

Gravely 00473700

Spacer, .510 x .625 x 3.35

$19.99

$

In Stock, Qty 20+

0

6

Gravely 06500010

Nut, Locking Nyloc Flange .50-13
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06545400

Nut, Locking Nyloc Flange .31-18
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 00374153

Discharge Baffle 60" (992201, 203, 204, 198)

Note: (992201, 203, 204, 198)

$29.99

$

In Stock, only 4 left!

0

Gravely 00440853

Discharge Baffle 52" (992200, 205, 197)

Note: (992200, 205, 197)

$38.99

$

Usually ships in 4-12 days

0

Gravely 00442453

Discharge Baffle 72" (992206)

Note: (992206)

$56.99

$

Usually ships in 4-12 days

0

10

Gravely 00474753

Bracket, Chute Storage

$29.99

$

Usually ships in 4-12 days

0

11

Gravely 06545500

Nut, Locking Nyloc Flange .38-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0
