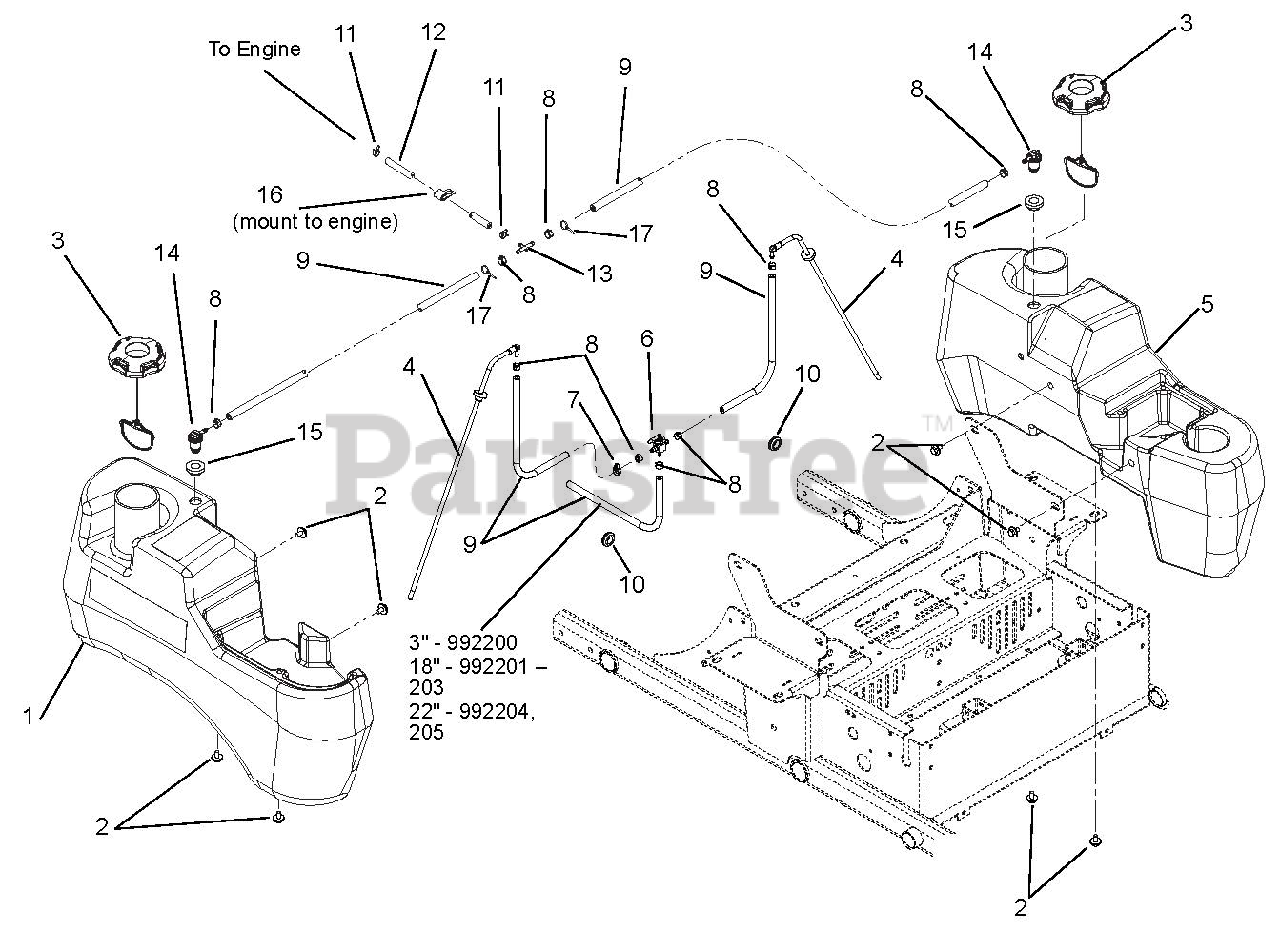

992204 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 000101 - 019999) Fuel System, Serial No. 002500 - Up Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI

Fuel System, Serial No. 002500 - Up Parts Diagram

  • Title

1

Gravely 04340800

Tank, Right Hand Fuel
(Superseded to 04341200)

$

$

Not available

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 6

0

3

Gravely 04237300

Cap, Fuel, EPA
(Superseded to 09190300)

$35.99

$

In Stock, Qty 8

0

4

Gravely 03900200

Assembly, Large Tank Fuel Pick-Up
(Superseded to 04320800)

$35.99

$

In Stock, only 2 left!

0

5

Gravely 04340900

Tank, Left Hand Fuel
(Superseded to 04341300)

$

$

Not available

6

Gravely 09233600

Valve, Fuel
(Superseded to 09164400)

$46.99

$

In Stock, only 3 left!

0

7

Gravely 00367900

Routing Clip (1/2" ID)

Note: (1/2" ID)

$1.99

$

In Stock, only 1 left!

0

8

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07500031

Grommet, Rubber 5/8 ID/1.13 OD

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 04097700

Clamp, Hose, Spring .188

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 03375900

Hose, .188 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 10

0

13

Gravely 04306900

Tee, 1/4HS Run x 3/16HS Branch

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 04068910

Valve, Combination
(Superseded to 05185600)

$18.99

$

In Stock, Qty 14

0

15

Gravely 04082700

Grommet, Remote Vent Nitrile

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06909400

J-Clamp

$3.99

$

In Stock, only 2 left!

0

17

Gravely 07500040

Cable Tie with Tree (.25 hole)

Note: (.25 hole)

$3.99

$

Usually ships in 4-12 days

0
