992204 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 000101 - 019999) Idlers And Sheaves Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI

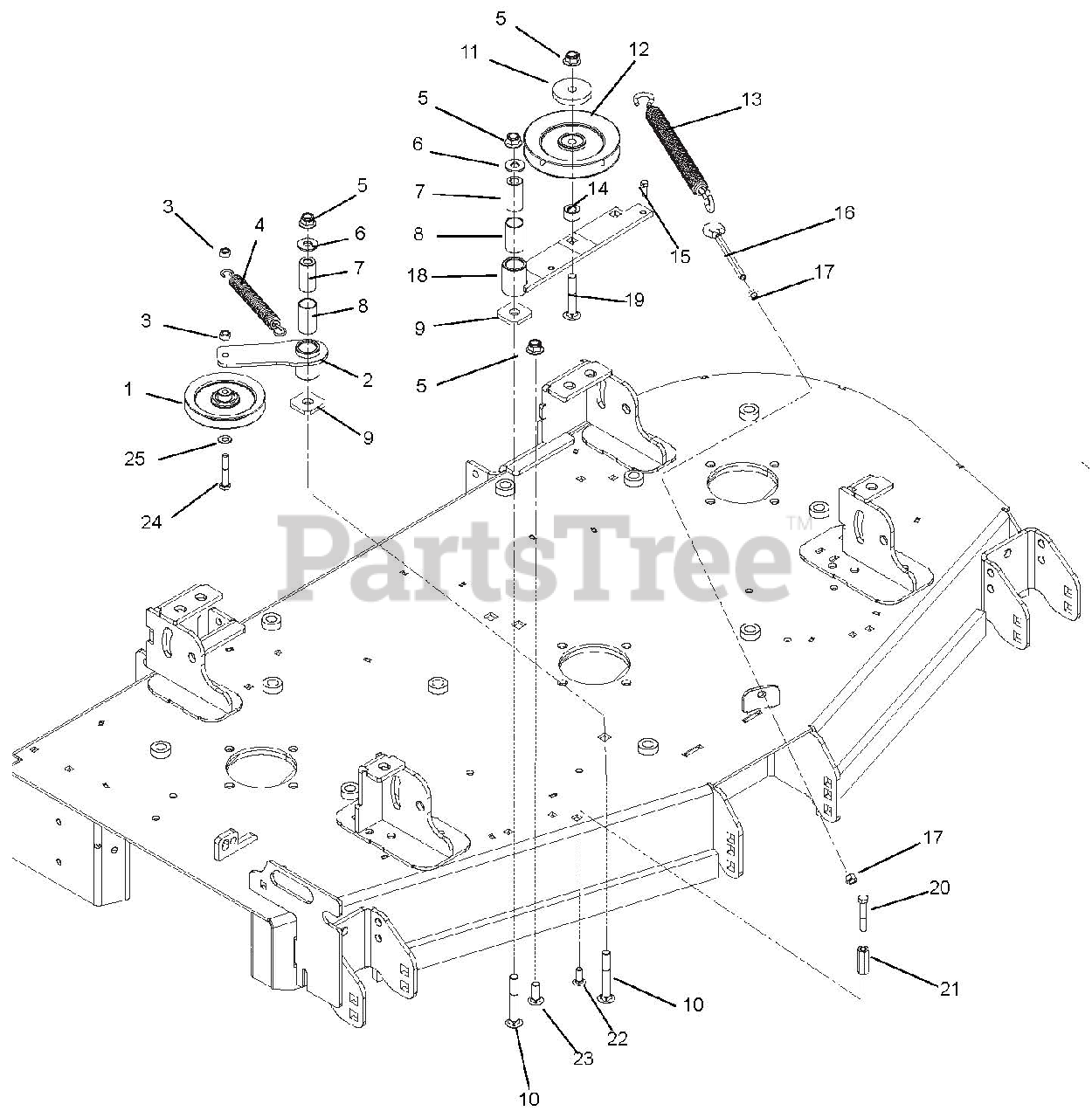

Idlers And Sheaves Parts Diagram

  • Title

1

Gravely 07300526

Sheave, .38"ID x 5.00"OD V-Idler
(Superseded to 07351800)

$31.99

$

In Stock, Qty 20+

0

2

Gravely 03774151

Weldment, Idler Arm

$52.99

$

In Stock, only 3 left!

0

3

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 08300507

Spring, Extension
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

5

Gravely 06500010

Nut, Locking Nylon Flange .50-13
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$6.99

$

In Stock, Qty 20+

0

8

Gravely 05500123

Bushing 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

9

Gravely 06400829

Washer, Flat .640 x 1.75 x .250

$4.99

$

In Stock, Qty 20+

0

10

Gravely 06225000

Bolt, Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200317)

$6.49

$

In Stock, Qty 19

0

11

Gravely 00450100

Cap, Idler Bearing Sealing

$15.99

$

In Stock, Qty 9

0

12

Gravely 07300527

Sheave, .50" ID x 6.00" OD V-Idler

$54.99

$

In Stock, Qty 20+

0

13

Gravely 08300505

Spring, Extension

$27.99

$

In Stock, Qty 20+

0

14

Gravely 05500905

Bushing, Spacer .502 x .997 x .50

$11.99

$

In Stock, Qty 13

0

15

Gravely 07000034

Bolt, Shoulder EP .38-16 x .30 Hex

$3.99

$

In Stock, Qty 10

0

16

Gravely 07001604

Bolt, .38-16 x 5.50 .62 Diameter Eye

$7.49

$

In Stock, Qty 20+

0

17

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 03774251

Weldment, Idler Arm

$70.99

$

In Stock, only 3 left!

0

19

Gravely 06224900

Bolt, Round Head Square Neck .50-13 x 3.00 Grade 5

$6.49

$

In Stock, Qty 8

0

20

Gravely 05958500

Bolt, Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

21

Gravely 06533500

Nut, Cupling .375-16 x 1.75

$3.99

$

In Stock, Qty 5

0

22

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06200006

Bolt, Round Head Square Neck .50-13 x 1.50 FULL Thread Grade 5

$6.49

$

In Stock, Qty 10

0

24

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

25

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
