992204 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 020000 - 021999) Mounting Arms And Vacuum Baffles Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI

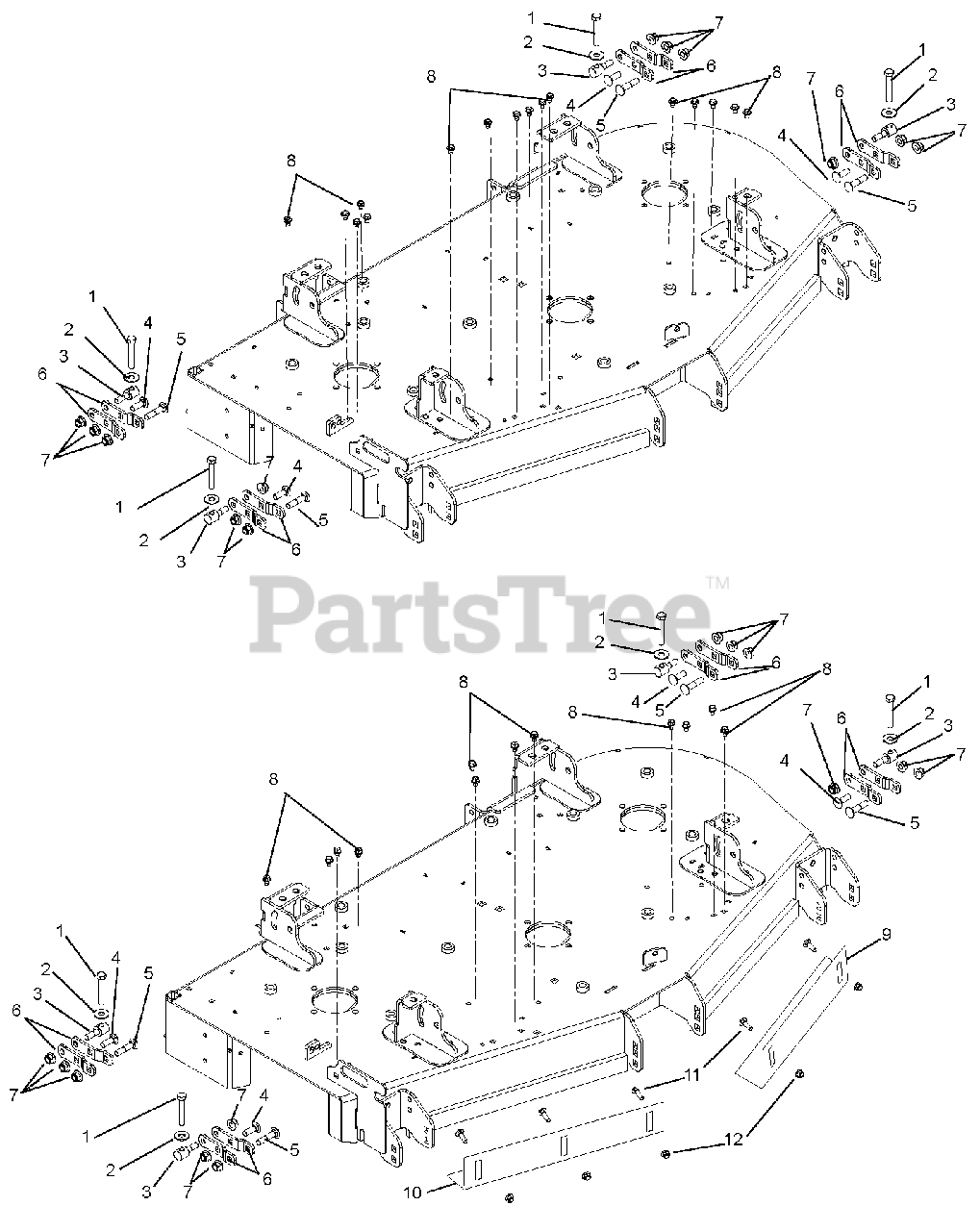

Mounting Arms And Vacuum Baffles Parts Diagram

  • Title

1

Gravely 05901421

Bolt, Hex .50-13 x 3.00 Grade 5 Full Thread
(Superseded to 05901737)

$5.49

$

In Stock, Qty 8

0

2

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 03972000

Trunnion, .50-13

$51.99

$

In Stock, only 4 left!

0

4

Gravely 06223100

Bolt, Round Head Square Neck .50-13 x 1.50 Grade 5
(Superseded to 06200421)

$5.49

$

Usually ships in 4-12 days

0

5

Gravely 06200119

Bolt, Round Head Square Neck .50-13 x 2.25 Grade 5
(Superseded to 06200423)

$3.99

$

In Stock, Qty 20+

0

6

Gravely 03966251

Deck Leveling Bracket – Black

$23.99

$

Usually ships in 4-12 days

0

7

Gravely 06500010

Nut, Locking Nyloc Flange .50-13
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head (992201, 203, 204, 206, 198)
(Superseded to 07400126)

Note: (992201, 203, 204, 206, 198)

$1.99

$

In Stock, Qty 18

0

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head (992200, 205, 197)
(Superseded to 07400126)

Note: (992200, 205, 197)

$1.99

$

In Stock, Qty 18

0

9

Gravely 00952951

Baffle, Vacuum Left Hand 52" (992200, 205, 197)
(Superseded to 05251851)

Note: (992200, 205, 197)

$37.99

$

In Stock, only 1 left!

0

Gravely 00952651

Baffle, Vacuum Left Hand 60" (992201, 203, 204, 198)
(Superseded to 05252051)

Note: (992201, 203, 204, 198)

$44.99

$

Usually ships in 4-12 days

0

Gravely 00955951

Baffle, Vacuum Left Hand 72" (992206)

Note: (992206)

$

$

Not available

10

Gravely 00952851

Baffle, Vacuum Right Hand 52" (992200, 205, 197)
(Superseded to 05251751)

Note: (992200, 205, 197)

$44.99

$

Usually ships in 4-12 days

0

Gravely 00952551

Baffle, Vacuum Right Hand 60" (992201, 203, 204, 198)
(Superseded to 05251951)

Note: (992201, 203, 204, 198)

$52.99

$

In Stock, only 4 left!

0

Gravely 00955851

Baffle, Vacuum Right Hand 72" (992206)

Note: (992206)

$

$

Not available

11

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 06530200

Nut, Lock Nyloc .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0
