992204 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 020000 - 021999) Tire Assembly Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI

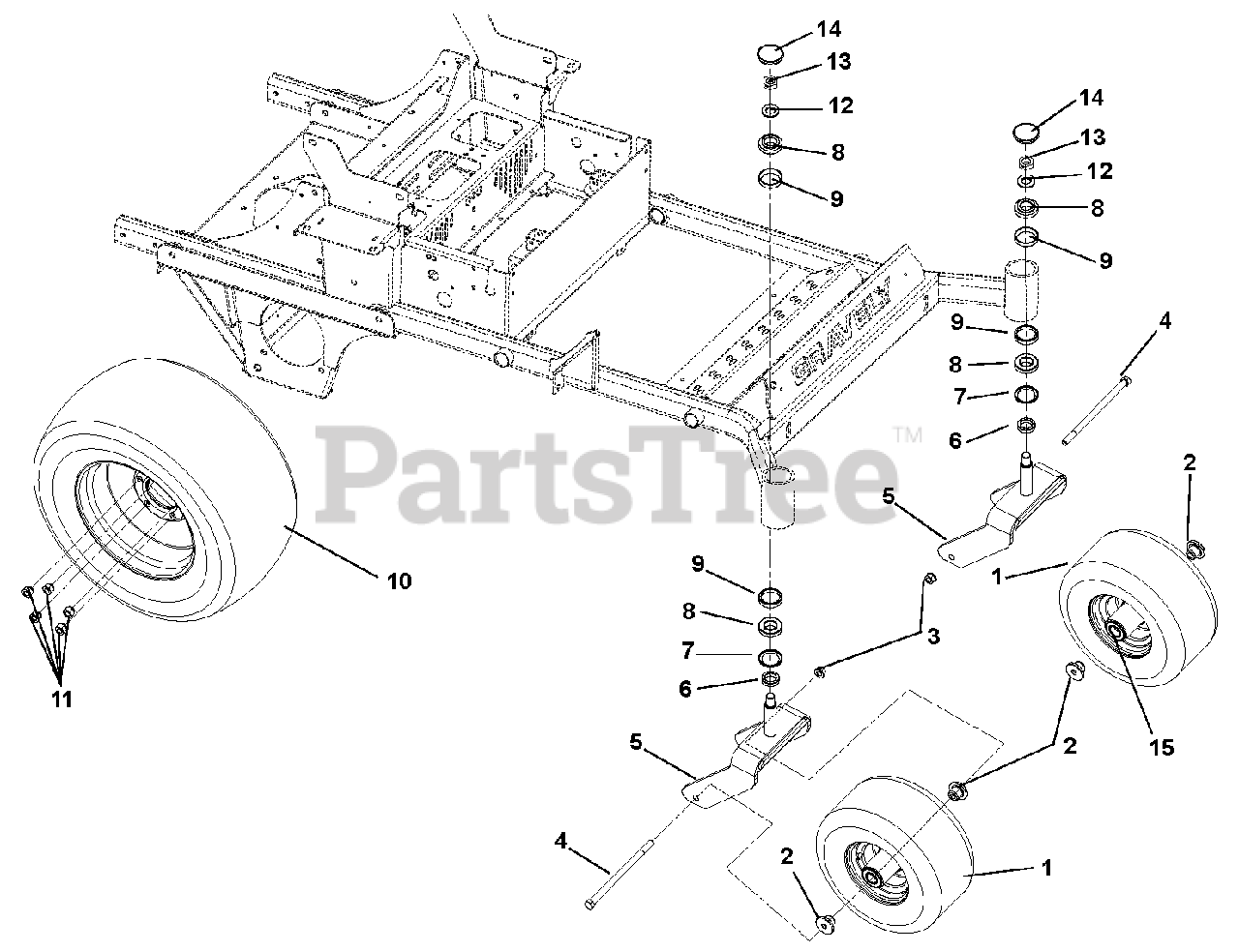

Tire Assembly Parts Diagram

  • Title

1

Gravely 07100904

Tire/Wheel Assembly, 15 x 6.00-6 Smooth
(Superseded to 59219000)

$197.99

$

In Stock, only 2 left!

0

Gravely 07100905

Tire, 15 x 6.00-6 Smooth

$87.99

$

In Stock, only 2 left!

0

2

Gravely 00675300

Spacer, Front Wheel

$9.49

$

In Stock, Qty 20+

0

3

Gravely 06500010

Nut, .Nyloc Flange 50-13
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 05961200

Bolt, Hex .50-13 x 9.00 Grade 5
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

5

Gravely 03924453

Caster Fork Weldment

$184.99

$

In Stock, only 2 left!

0

6

Gravely 03760300

Spacer 1.258 x 1.75 x .550

$34.99

$

Usually ships in 4-12 days

0

7

Gravely 05600432

Seal, Oil 1.75 x 2.332 x .312

$12.99

$

In Stock, Qty 5

0

8

Gravely 05404700

Bearing, Cone 1.25 x .66

$22.99

$

In Stock, Qty 20+

0

9

Gravely 05404600

Bearing, Cup 2.328 x .465

$15.99

$

In Stock, Qty 9

0

10

Gravely 07100207

Tire/Wheel Assembly, 24 x 11.50-12 (992201, 203, 204, 206, 198)
(Superseded to 07101040)

Note: (992201, 203, 204, 206, 198)

$300.99

$

Usually ships in 4-12 days

0

Gravely 07100208

Tire, 24 x 11.50-12 (992201, 203, 204, 206, 198)
(Superseded to 07101041)

Note: (992201, 203, 204, 206, 198)

$250.99

$

Usually ships in 4-12 days

0

Gravely 07100810

Tire/Wheel Assembly, 23 x 10.5-12 (992200, 205, 197)
(Superseded to 07101116)

Note: (992200, 205, 197)

$319.99

$

In Stock, only 1 left!

0

Gravely 07100210

Tire, 23 x 10.00-12 (992200, 205, 197)
(Superseded to 07101043)

Note: (992200, 205, 197)

$205.99

$

Usually ships in 4-12 days

0

11

Gravely 06517600

Nut, Wheel .50-20 13/16 Across Flats Automotive Type
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06439800

Washer, Flat Steel .812 x 2.00 x .148
(Superseded to 06401201)

$4.99

$

In Stock, Qty 12

0

13

Gravely 06536900

Nut, Jam Center Lock .75-16

$6.49

$

In Stock, Qty 12

0

14

Gravely 03925900

Cap, Dust

$11.99

$

In Stock, only 4 left!

0

15

Gravely 05435700

Bearing, 25 mm ID x 52 mm OD x 15 mm

$25.99

$

In Stock, Qty 20+

0
