992204 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 022000 - 029999) Clutch And Exhaust Deflector Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI

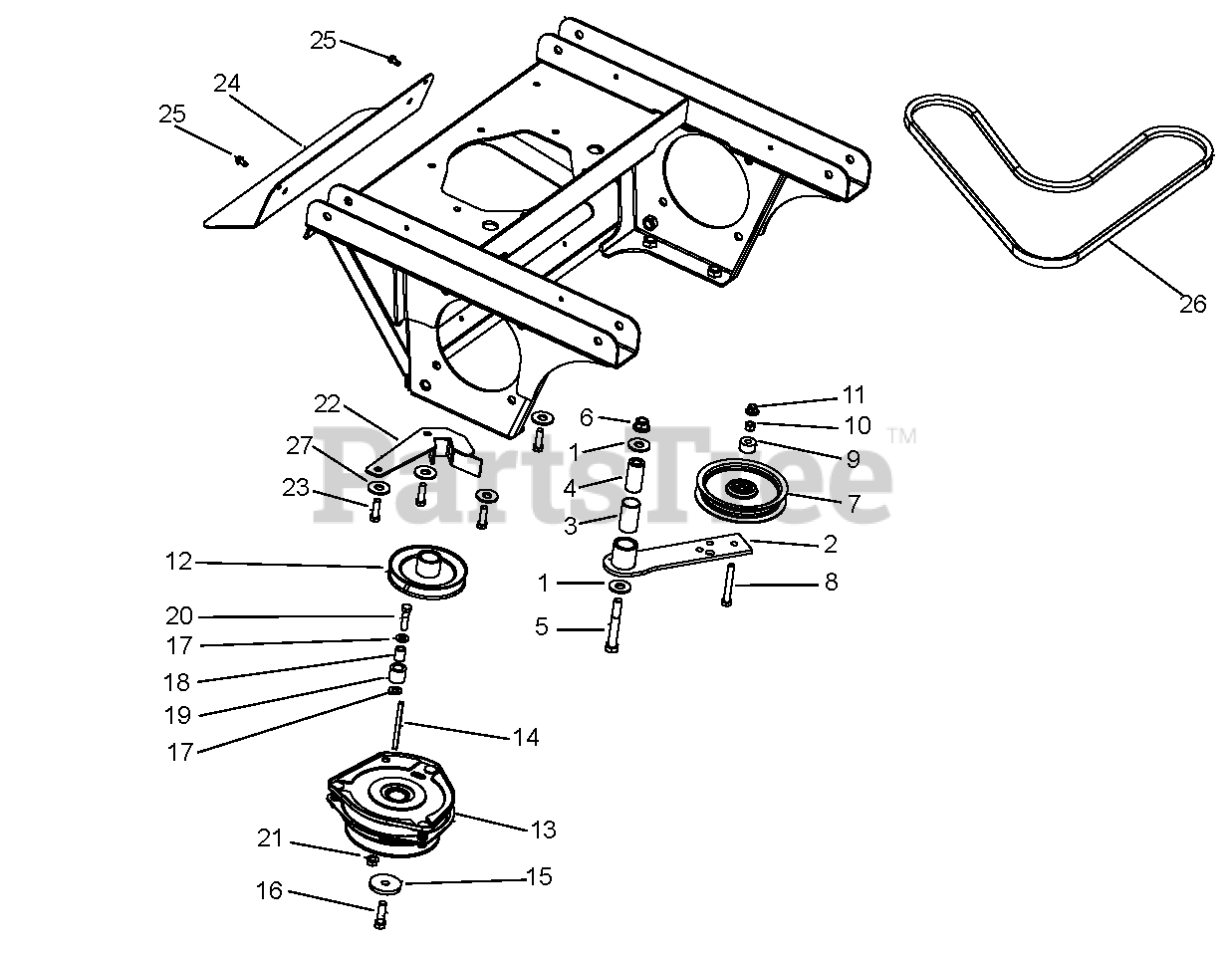

Clutch And Exhaust Deflector Parts Diagram

  • Title

1

Gravely 06442000

Washer, Flat Steel.563 x 1.38 x .109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 09219000

Weldment, Idler Arm Ground Drive

$102.99

$

In Stock, only 1 left!

0

3

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

4

Gravely 01581700

Bushing, Spacer .502 x .997 x 2.03 PM

$6.99

$

In Stock, Qty 20+

0

5

Gravely 05965800

Bolt, Hex .50-13 x 3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, Qty 11

0

6

Gravely 06500010

Nut, Locking Nyloc Flange .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07300524

Idler, Flat 5.00 x .38
(Superseded to 07334500)

$85.99

$

In Stock, Qty 17

0

8

Gravely 05961400

Bolt, Hex .38-16 x 2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 03035100

Spacer .390 x 1.000 x .562

$9.99

$

In Stock, Qty 20+

0

10

Gravely 06529600

Nut, Locking Center .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06545500

Nut, Locking Nyloc Flange .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 07340967

Sheave, Engine 5.426 x 1.127
(Superseded to 07340900)

$84.99

$

In Stock, only 2 left!

0

13

Gravely 00447100

Clutch, Electric-OGURA GT3.5-VP01R

$730.99

$

In Stock, only 1 left!

0

14

Gravely 06600003

Key, Square .25 x 3.50 x .25 SAE

$5.49

$

In Stock, only 2 left!

0

15

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

16

Gravely 05900039

Bolt, Hex .44-20 x 1.50 G5 YZ EP80
(Superseded to 05902004)

$6.49

$

In Stock, only 2 left!

0

17

Gravely 06436200

Washer, Flat Steel. 406 x .812 x .065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 08905500

Bushing, S.407 x .625 x .813 ST

$14.99

$

In Stock, only 2 left!

0

19

Gravely 07500007

Bumper, Rubber .62 x 1.0 x .88 LG

$6.49

$

In Stock, Qty 9

0

20

Gravely 05957900

Bolt, Hex .38-16 x 1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

21

Gravely 06542000

Nut, Locking Top Flange .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 03908851

Weldment, Clutch Stop

$52.99

$

In Stock, Qty 5

0

23

Gravely 05901522

Bolt, Hex .38-16 x 1.25 G5 NYTORQ (992200, 201, 203, 197, 198)
(Superseded to 05901808)

Note: (992200, 201, 203, 197, 198)

$2.49

$

In Stock, Qty 5

0

Gravely 07417400

Screw, Tap .38-16 x 1.50 Hex Washer Head TR YZ (992204, 205)
(Superseded to 07400203)

Note: (992204, 205)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 03948151

Shield, Muffler Heat

$73.99

$

In Stock, only 1 left!

0

25

Gravely 07400034

Screw, Tap .25-20 x .50 Hex Washer Head TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 07200515

V-Belt, Cogged B-Raw Edge

$59.99

$

In Stock, Qty 11

0

27

Gravely 06400927

Washer, .38 Spring Disc (992000, 201, 203, 197, 198)

Note: (992000, 201, 203, 197, 198)

$3.99

$

In Stock, only 3 left!

0
