992205 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 020000 - 021999) Belt Covers Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

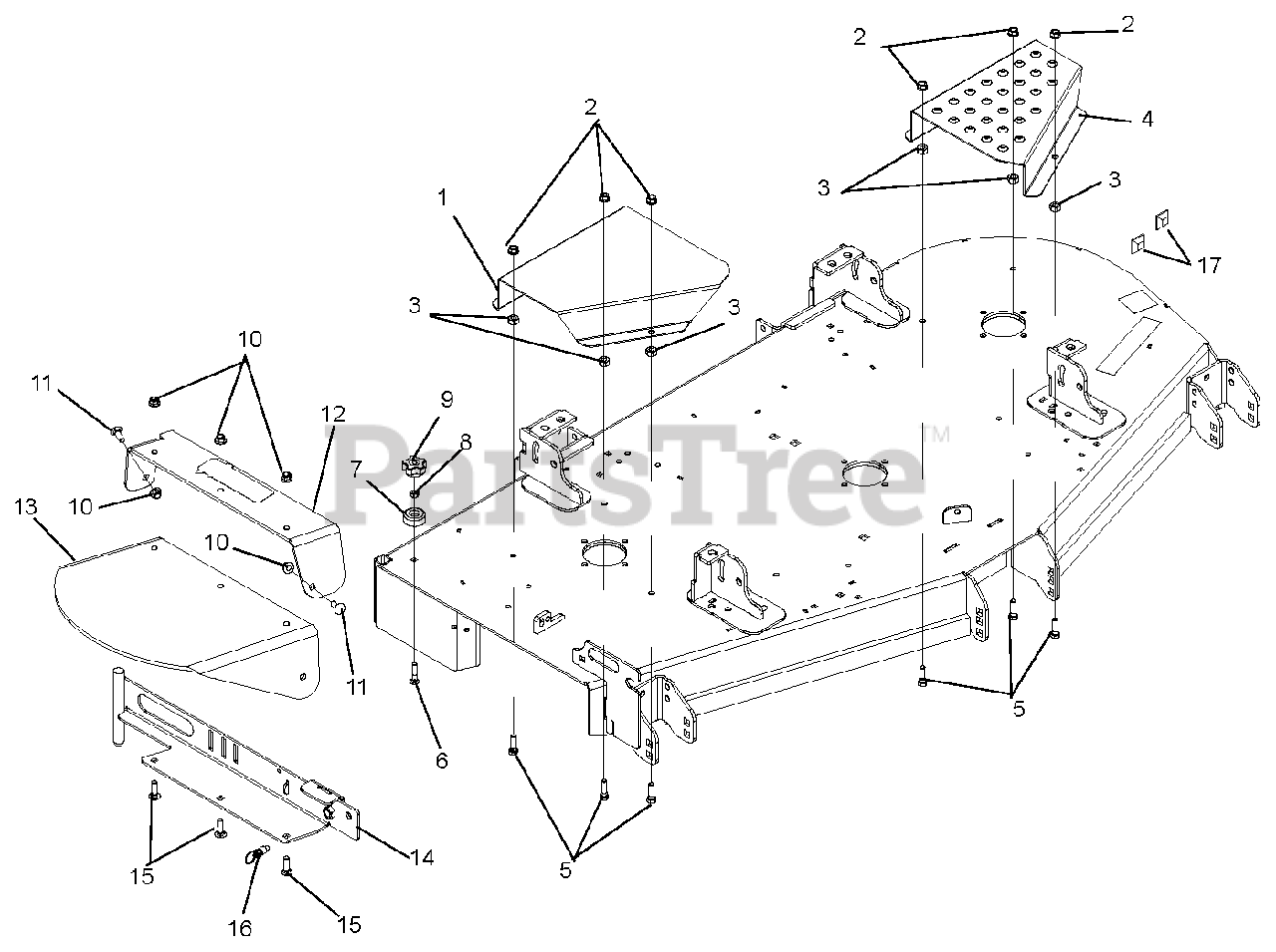

Belt Covers Parts Diagram

  • Title

1

Gravely 03982251

Guard, Deck Belt, Right Hand 60" (992201, 203, 204, 198)

Note: (992201, 203, 204, 198)

$62.99

$

Usually ships in 4-12 days

0

Gravely 03982151

Guard, Deck Belt, Right Hand 52" (992200, 205, 197)

Note: (992200, 205, 197)

$51.99

$

Usually ships in 4-12 days

0

Gravely 04437451

Guard, Deck Belt, Right Hand 72" (992206)

Note: (992206)

$

$

Not available

2

Gravely 06534900

Nut, Spin Lock-Flange .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 17

0

3

Gravely 07001525

Nut, Heavy Hex .38-16
(Superseded to 06500823)

$1.99

$

In Stock, Qty 16

0

4

Gravely 03977251

Guard, Deck Belt, Left Hand 60" (992201, 203, 204, 198)

Note: (992201, 203, 204, 198)

$73.99

$

In Stock, only 1 left!

0

Gravely 03977151

Guard, Deck Belt, Left Hand 52" (992200, 205, 197)

Note: (992200, 205, 197)

$92.99

$

Usually ships in 4-12 days

0

04518551

Guard, Deck Belt Left Hand 72" (992206)

Note: (992206)

$

$

Not available

5

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, only 2 left!

0

6

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

7

Gravely 07500009

Bumper

$6.49

$

In Stock, only 2 left!

0

8

Gravely 06529800

Nut, Locking-Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 07534800

Knob, Clamping, .312-18 Nyloc

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06545500

Nut, Locking Nyloc Flange .38-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

12

Gravely 04551553

Support, Rubber Discharge Chute

$105.99

$

Usually ships in 4-12 days

0

13

Gravely 04551600

Chute, Rubber Discharge

$70.99

$

In Stock, Qty 9

0

14

Gravely 00980553

Discharge Chute Mounting Weldment (992200, 201, 203, 204, 205, 197, 198)
(Superseded to 04727953)

Note: (992200, 201, 203, 204, 205, 197, 198)

$131.99

$

In Stock, only 1 left!

0

Gravely 00980653

Discharge Chute Mounting Weldment (992206)

Note: (992206)

$168.99

$

In Stock, only 1 left!

0

15

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 07000037

Pull Pin, .50-13 Thread x .310 Diameter Plunger

$11.99

$

In Stock, Qty 8

0

17

Gravely 07525100

Stop (992206)

Note: (992206)

$2.49

$

Usually ships in 4-12 days

0
