992205 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 031000 - 039999) Brakes Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

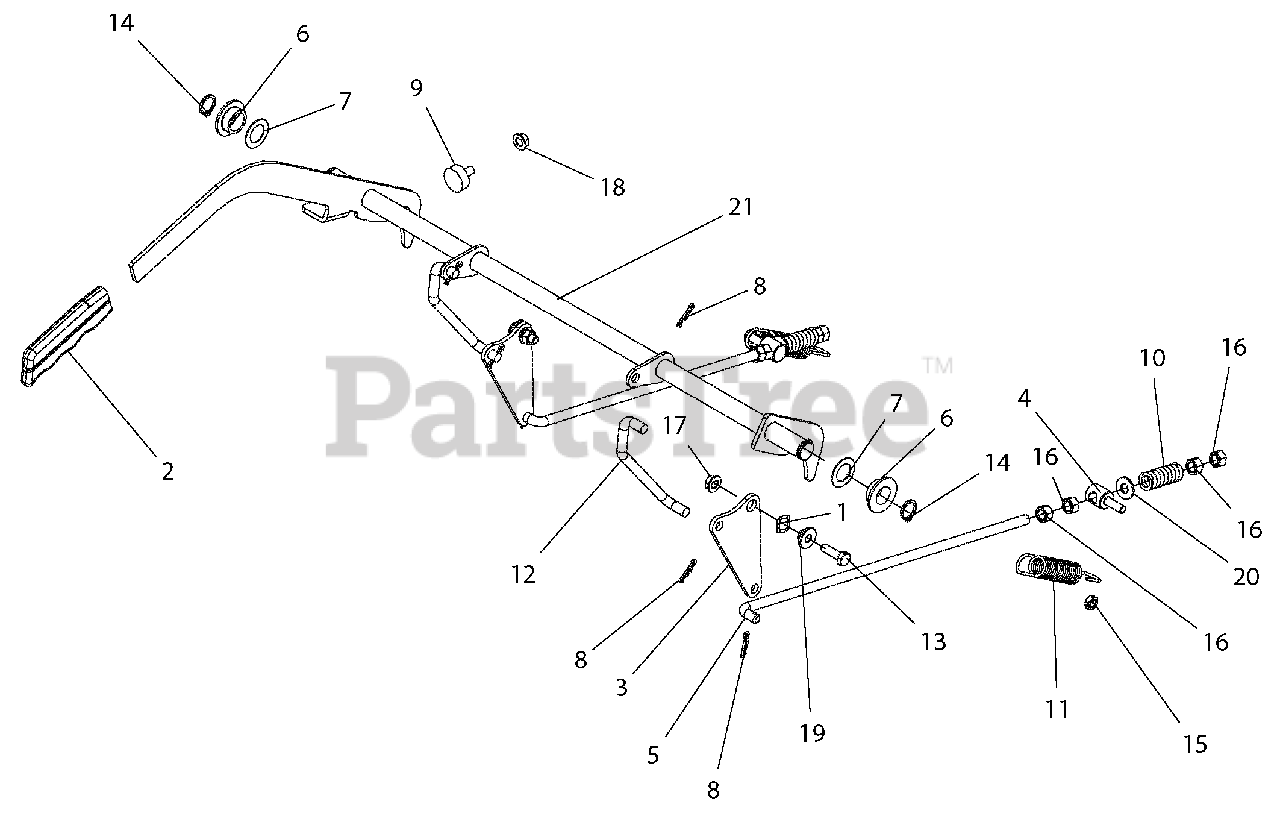

Brakes Parts Diagram

  • Title

1

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.99

$

In Stock, Qty 15

0

2

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

Note: (YELLOW)

$5.49

$

In Stock, Qty 12

0

3

Gravely 03969451

PLATE, BRAKE PIVOT

$13.99

$

Usually ships in 4-12 days

0

4

Gravely 03969600

TRUNNION, .38-16

$19.99

$

Usually ships in 4-12 days

0

5

Gravely 03975700

ROD, BRAKE ADJ.

$30.99

$

Usually ships in 4-12 days

0

6

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$3.49

$

In Stock, Qty 12

0

7

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.99

$

In Stock, only 1 left!

0

8

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 3 left!

0

10

Gravely 08300027

SG-COMP .142 X .710 X 1.75

$10.99

$

In Stock, only 2 left!

0

11

Gravely 08333200

SG-TENS .105X.85X5.00 WLD 40

$17.99

$

In Stock, Qty 6

0

12

Gravely 09268300

LINKAGE, BRAKE ACTUATING

$36.99

$

Usually ships in 4-12 days

0

13

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05714600

RG-RTNG-EXT .689X.078

$3.49

$

In Stock, only 2 left!

0

15

Gravely 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.99

$

In Stock, Qty 11

0

16

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.99

$

In Stock, Qty 20+

0

20

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 03863100

WMT, BRAKE INTERLOCK

$89.99

$

Usually ships in 4-12 days

0
