992205 (Pro-Turn 252) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 031000 - 039999) Fuel System - Non CARB Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

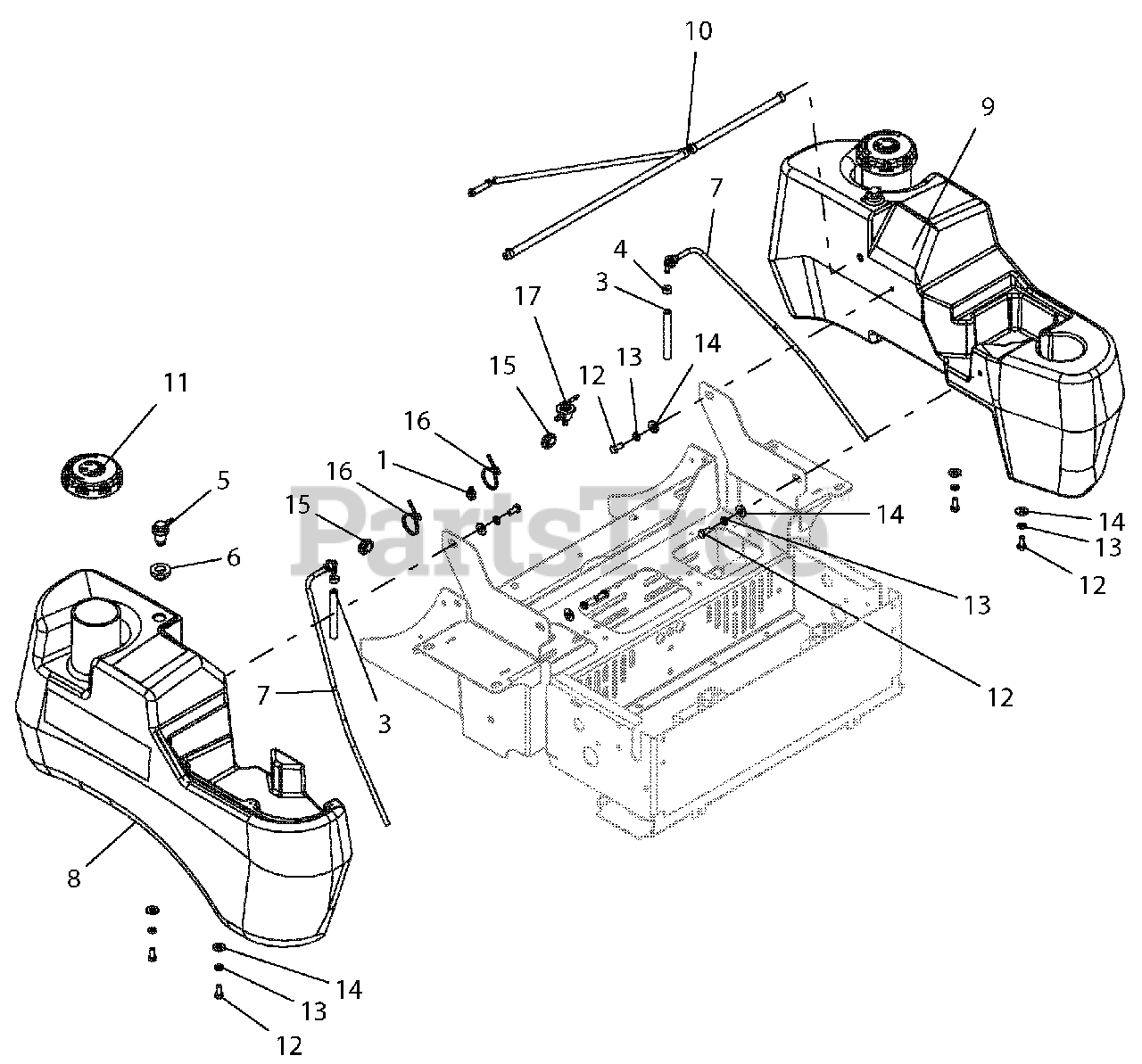

Fuel System - Non CARB Parts Diagram

  • Title

1

Gravely 00367900

ROUTING CLIP (1/2" ID)

Note: (.50 ID)

$2.49

$

In Stock, Qty 5

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

4

Gravely 03278800

CLAMP, FUEL LINE

$1.99

$

In Stock, Qty 20+

0

5

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$19.99

$

In Stock, only 1 left!

0

6

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$4.99

$

In Stock, Qty 20+

0

7

Gravely 04320800

ASS'Y,LARGE TANK FUEL PICKUP

$36.99

$

In Stock, Qty 7

0

8

Gravely 04340800

TANK-RH LARGE GRAVELY FUEL
(Superseded to 04341200)

$

$

Not available

9

Gravely 04340900

TANK-LH LARGE GRAVELY FUEL
(Superseded to 04341300)

$

$

Not available

10

Gravely 04458300

PT400, FUEL LINE ASSEMBLY

$38.99

$

Usually ships in 4-12 days

0

11

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$36.99

$

In Stock, Qty 10

0

12

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 07500031

GROMMET,RUBBER 5/8 ID/1.13 OD

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

Note: (.25 HOLE)

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 09233600

VALVE - FUEL
(Superseded to 09164400)

$48.99

$

Usually ships in 4-12 days

0
