992206 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki (SN: 020000 - 029999) Brakes Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki

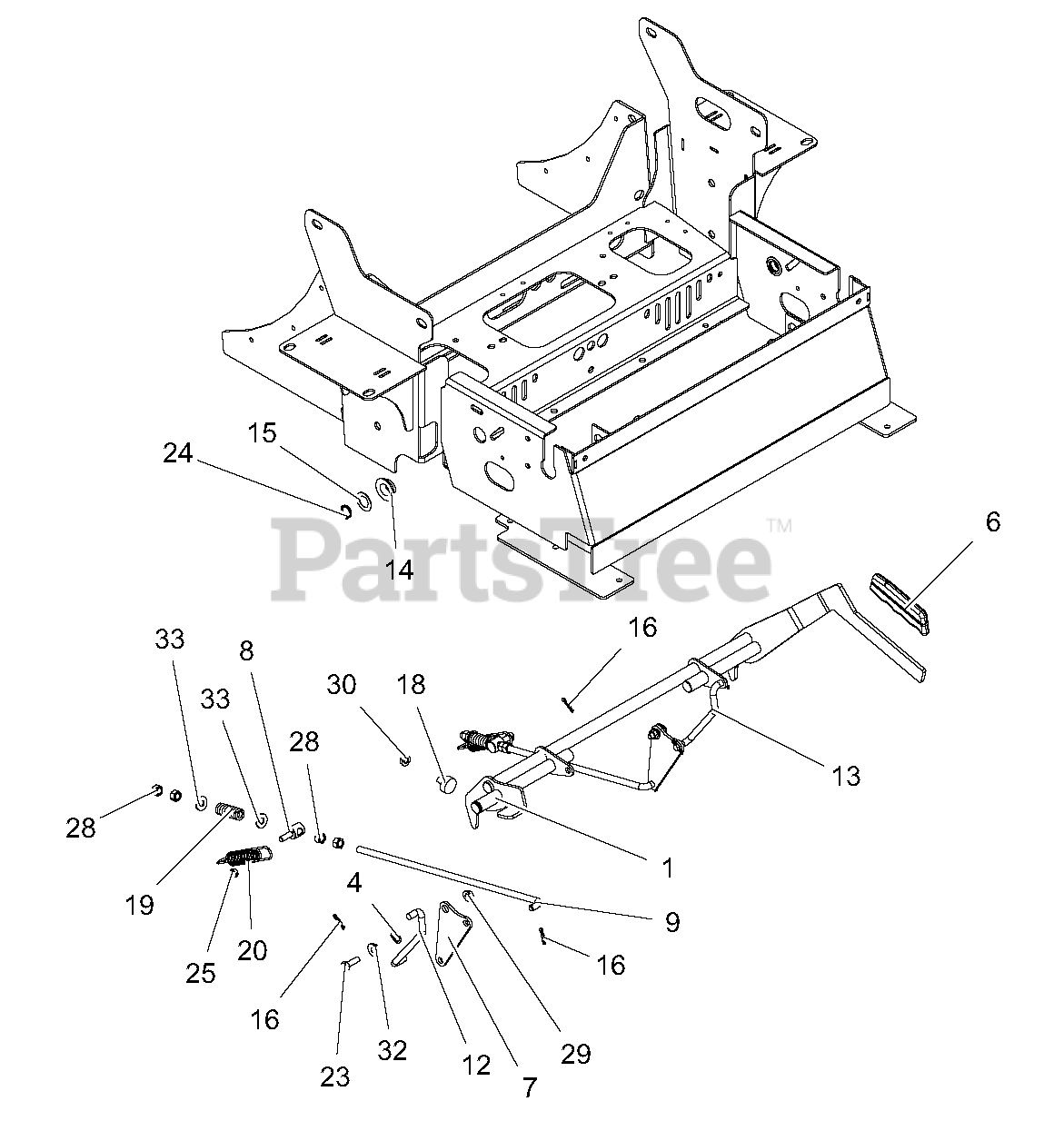

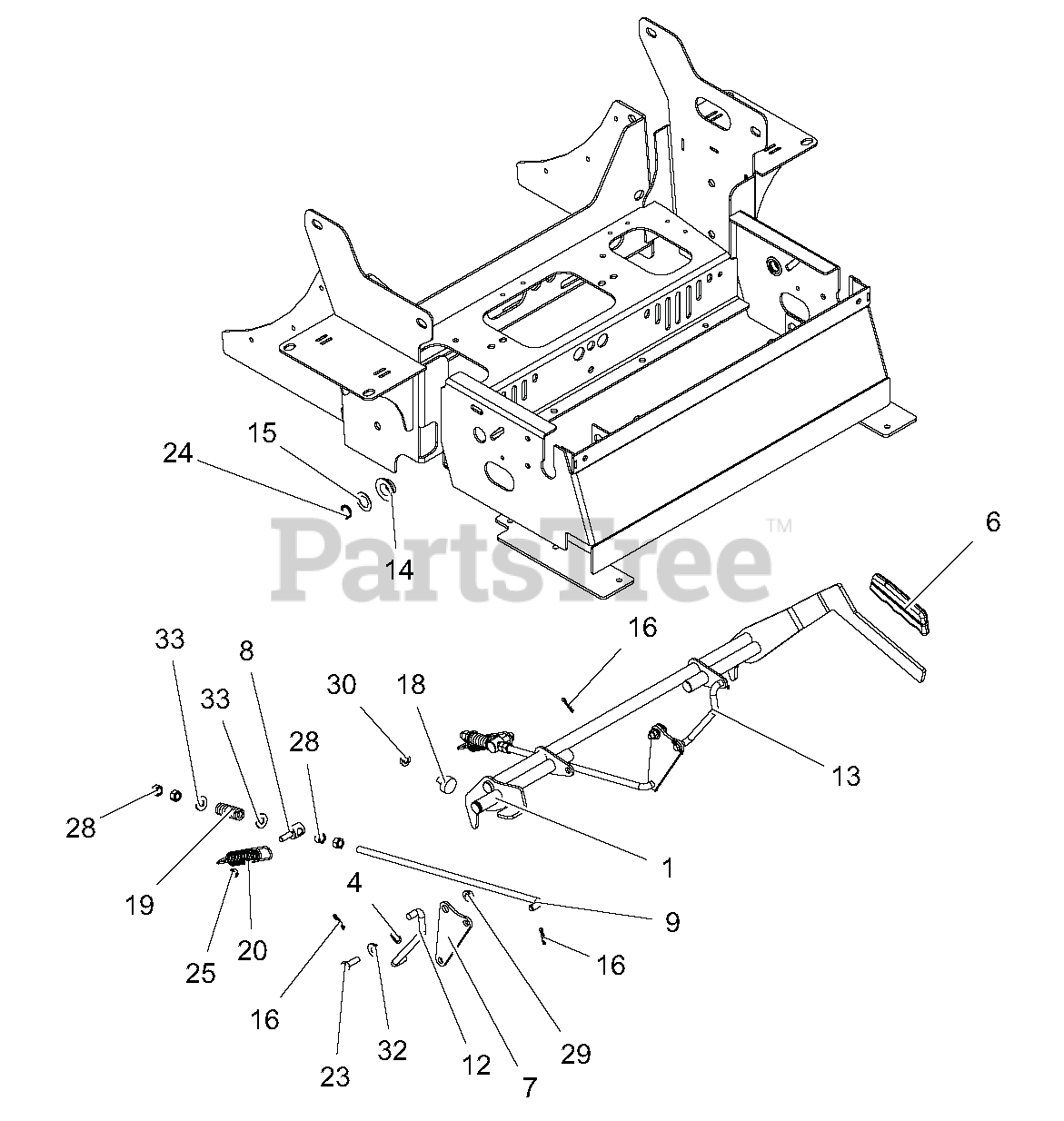

Brakes Parts Diagram

  • Title

1

Gravely 04383800

WLDMT, PARKING BRAKE LEVER

$131.99

$

Usually ships in 4-12 days

0

4

Gravely 00325400

WAVE WASHER .531X.781X.125 FH

$0.99

$

In Stock, Qty 20+

0

6

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

Note: (YELLOW)

$3.99

$

In Stock, Qty 9

0

7

Gravely 03969451

PLATE, BRAKE PIVOT-BLACK

$12.99

$

Usually ships in 4-12 days

0

8

Gravely 03969600

TRUNNION, .31-18

$17.99

$

Usually ships in 4-12 days

0

9

Gravely 03975700

ROD, BRAKE ADJ.

$28.99

$

Usually ships in 4-12 days

0

12

Gravely 04396700

LINKAGE, RH BRAKE ACTUATING

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 04396800

LINKAGE, LH BRAKE ACTUATING

$13.99

$

Usually ships in 4-12 days

0

14

Gravely 05525200

BSHG, FLANGE .762 X 1.48 X .44 NYLON
(Superseded to 05501517)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 06413400

WHST-HDND-THRST

$3.49

$

In Stock, only 2 left!

0

16

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

18

Gravely 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

19

Gravely 08300027

SPRG, COMPRESSION

$9.49

$

In Stock, only 1 left!

0

20

Gravely 08333200

SPRG, EXTENSION

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

24

Gravely 05714600

RG-RTNG-EXT .750x.078

$2.49

$

In Stock, Qty 5

0

25

Gravely 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, Qty 9

0

28

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

29

Gravely 06543100

@NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 2 left!

0

32

Gravely 05514800

BSHG, FLG .32X.500.344X.880

$3.99

$

In Stock, Qty 14

0

33

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 16

0
