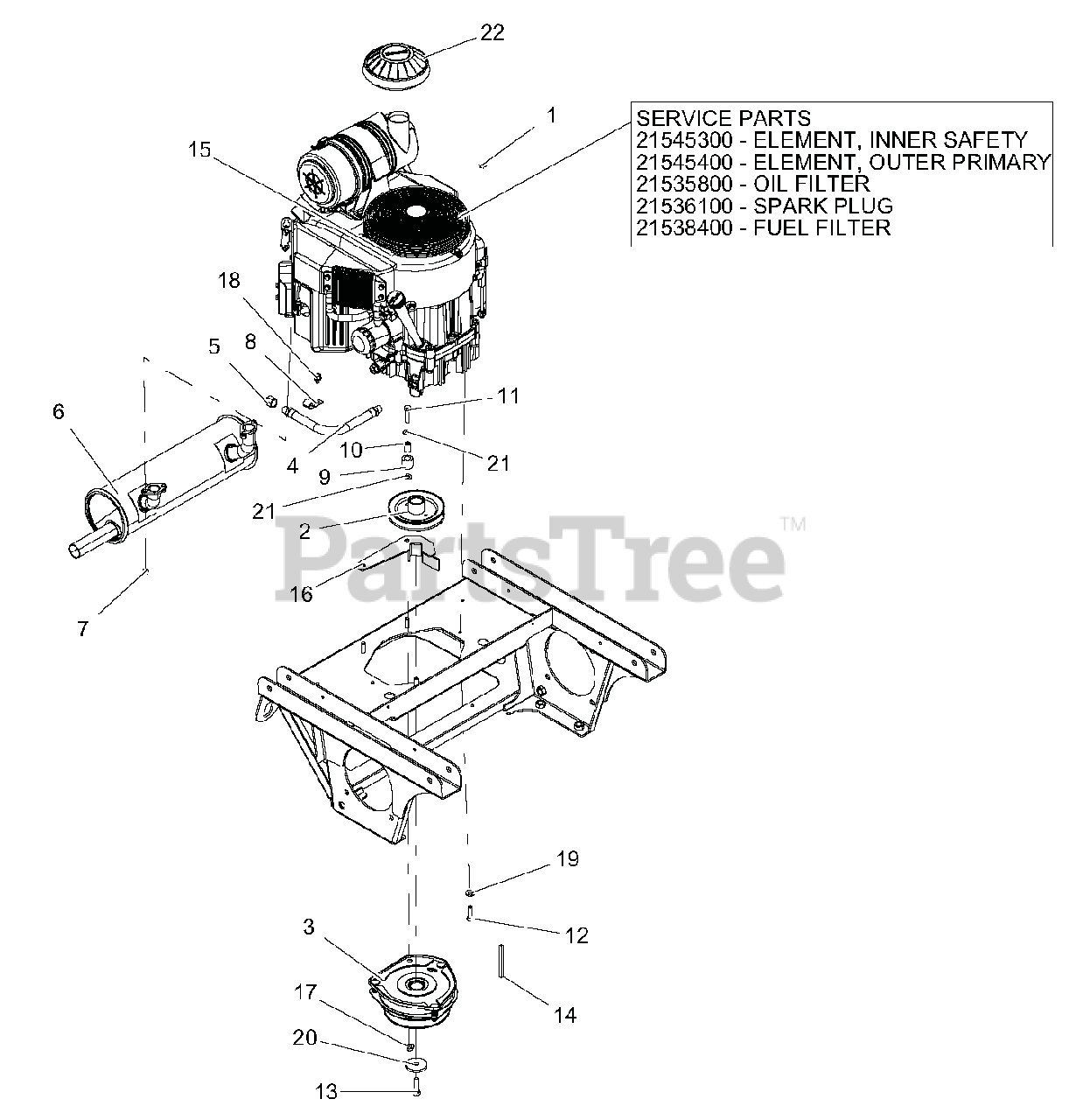

992206 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki (SN: 020000 - 029999) Engine And Clutch Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki

Engine And Clutch Parts Diagram

  • Title

1

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

2

Gravely 07340967

SHEAVE-ENGINE 1.127ID X 5.25OD
(Superseded to 07340900)

$84.99

$

In Stock, only 4 left!

0

3

Gravely 00447100

CLUTCH, ELE-OGURA GT3.5-VP01R

$512.99

$

Usually ships in 4-12 days

0

4

Gravely 03873100

HOSE,HYD .38-11-0K M6NO-M6N0
(Superseded to 07001829)

$18.99

$

In Stock, only 2 left!

0

5

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

6

Gravely 03911000

MUFFLER, 27-31 KAW
(Superseded to 09386000)

$188.99

$

In Stock, only 4 left!

0

7

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.49

$

In Stock, only 2 left!

0

10

Gravely 08905500

BUSH.,S.407X.625X.813 ST

$14.99

$

In Stock, only 2 left!

0

11

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 15

0

12

Gravely 05901522

BLT-HEX.38-16X1.25 G5YZ NYTORQ
(Superseded to 05901808)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

$6.49

$

In Stock, Qty 10

0

14

Gravely 06600003

KEY-SQ. .25X3.50X.25 SAE

$5.49

$

In Stock, Qty 5

0

15

Gravely 08200724

ENGINE, KAWASAKI FX850

$

$

Not available

16

Gravely 03908851

WMT, CLUTCH STOP

$52.99

$

In Stock, only 3 left!

0

17

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.99

$

In Stock, only 4 left!

0

20

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

21

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 09408700

CAP, AIR CLEANER INTAKE (2")

Note: (2")

$58.99

$

In Stock, Qty 5

0
