992206 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki (SN: 020000 - 029999) Overflow Tanks And Transaxles Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki

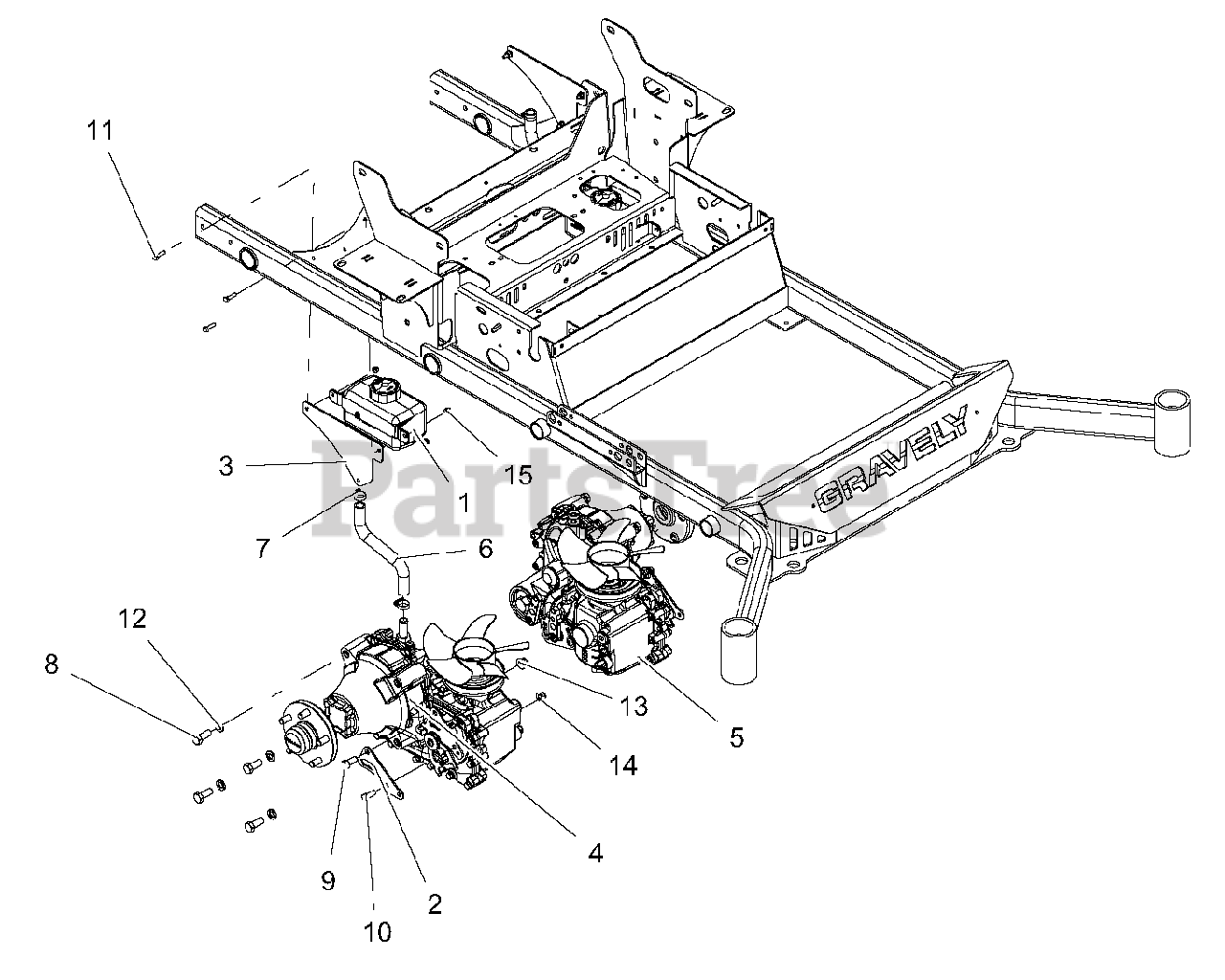

Overflow Tanks And Transaxles Parts Diagram

  • Title

1

Gravely 03947000

TANK, HYD 1000ML

$29.99

$

In Stock, only 4 left!

0

2

Gravely 03885451

BRKT., CONTROL MTG-BLACK

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 03918253

PLATE, HYDRO OVERFLOW TANK MTG

$18.99

$

In Stock, only 1 left!

0

4

Gravely 03935200

TRANS, R.H. HG ZT-5400

$2650.99

$

Usually ships in 4-12 days

0

5

Gravely 03935300

TRANS, LH HG ZT-5400

$2650.99

$

Usually ships in 4-12 days

0

6

Gravely 03986400

HOSE, HYDRO OVERFLOW

$11.99

$

In Stock, only 2 left!

0

7

Gravely 06923500

CLAMP, .88 DIA HOSE

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05958700

BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

10

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

12

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

13

Gravely 06500009

NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$5.99

$

In Stock, only 1 left!

0

14

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0
