992206 (Pro-Turn 272) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki (SN: 030000 - 030999) Electrical Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki

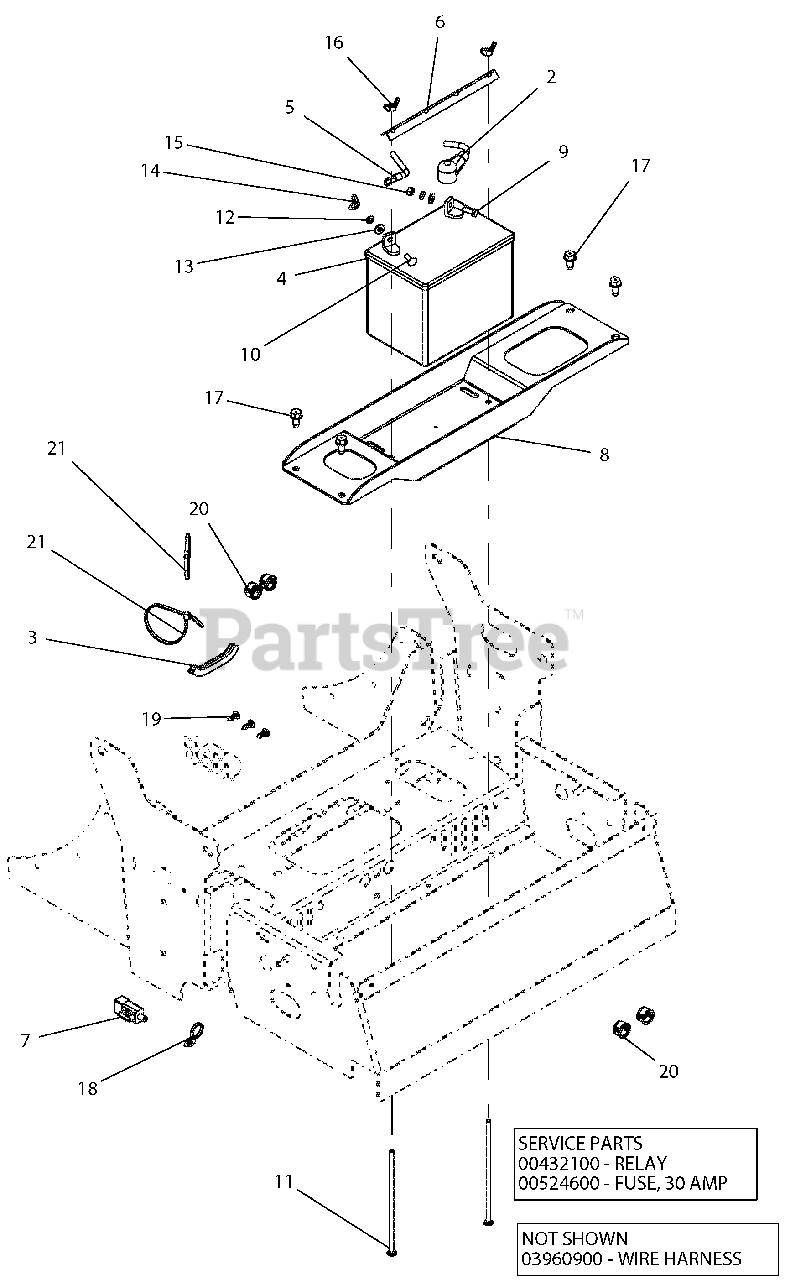

Electrical Parts Diagram

  • Title

2

Gravely 03286900

CABLE - POS BATT W/BOOTS 6X35

$40.99

$

Usually ships in 4-12 days

0

3

Gravely 00918200

STRIP, COWL

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

5

Gravely 03288200

CABLE-NEGATIVE BATTERY 35.00"

$26.99

$

Usually ships in 4-12 days

0

6

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, only 4 left!

0

7

Gravely 03834300

SWITCH, SNAP IN - N.O./N.O.

$15.99

$

In Stock, Qty 9

0

8

Gravely 04420553

PT400 GAS BATTERY TRAY - RED

$92.99

$

Usually ships in 4-12 days

0

9

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

10

Gravely 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$5.49

$

In Stock, Qty 20+

0

12

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

13

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06501200

NUT-WING .250-20 YWZC

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

16

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

17

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

Note: (.25 HOLE)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 1 left!

0

21

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0
