992207 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki, CARB (SN: 020000 & Above) Fuel System - CARB Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki, CARB

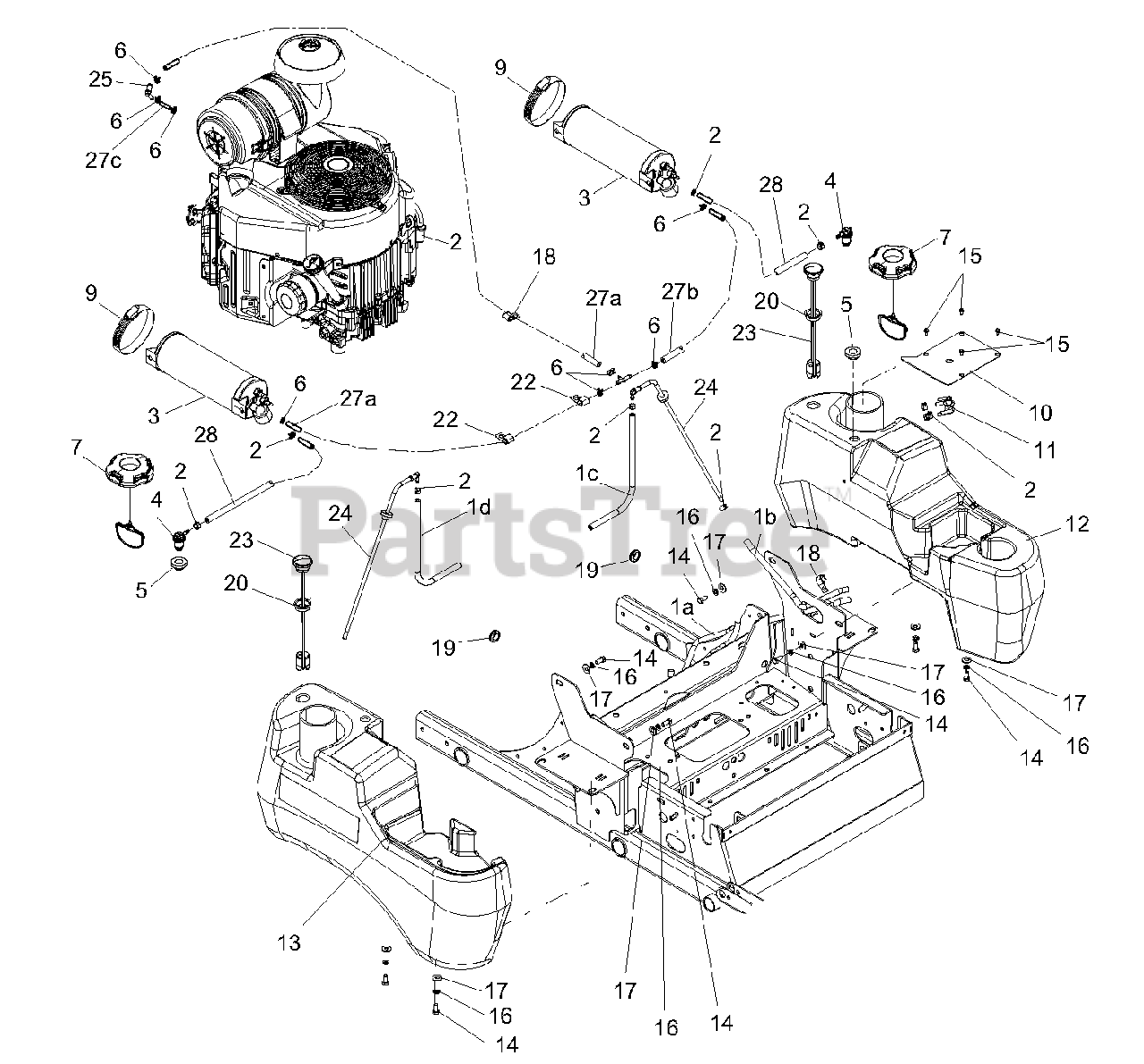

Fuel System - CARB Parts Diagram

  • Title

1a

Gravely 03278100

.25 LOW PERM GAS HOSE

$1.49

$

In Stock, Qty 20+

0

1b

Gravely 03278100

.25 LOW PERM GAS HOSE

$1.49

$

In Stock, Qty 20+

0

1c

Gravely 03278100

.25 LOW PERM GAS HOSE

$1.49

$

In Stock, Qty 20+

0

1d

Gravely 03278100

.25 LOW PERM GAS HOSE

$1.49

$

In Stock, Qty 20+

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

Usually ships in 4-12 days

0

3

Gravely 04545900

CANISTER, CARBON 9.3G CAP

$80.99

$

Usually ships in 4-12 days

0

4

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$18.99

$

In Stock, Qty 10

0

5

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

6

Gravely 04097700

CLAMP - HOSE, SPRING .188

$1.99

$

Usually ships in 4-12 days

0

7

Gravely 04558100

CAP, FUEL NONVENT AUTOLOCK

$23.99

$

In Stock, only 2 left!

0

9

Gravely 06940200

CLAMP - HOSE WORM 2.3/3.2 SS #44

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 04396053

PLATE, FUEL VALVE MOUNTING

$32.99

$

Usually ships in 4-12 days

0

11

Gravely 04426400

VALVE, FUEL
(Superseded to 09389900)

$

$

Not available

12

Gravely 04452000

TANK, LH LARGE FUEL (INCLUDES 20 & 23)
(Superseded to 04722500)

Note: (INCLUDES 20 & 23)

$368.99

$

Usually ships in 4-12 days

0

13

Gravely 04452100

TANK, RH LARGE FUEL (INCLUDES 20 & 23)
(Superseded to 04722600)

Note: (INCLUDES 20 & 23)

$367.99

$

Usually ships in 4-12 days

0

14

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06100211

SCR, HWH 10-24x.38 STAINLESS

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06909400

J-Clamp

$3.99

$

In Stock, only 2 left!

0

19

Gravely 07500031

GROMMET, RUBBER

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 07500034

GROMMET, FUEL GAGE

$6.99

$

In Stock, Qty 20+

0

22

Gravely 00367900

ROUTING CLIP (1/2" ID)

Note: (1/2" ID)

$1.99

$

In Stock, only 1 left!

0

23

Gravely 07500223

GUAGE, REMOTE FUEL, 12"
(Superseded to 07500601)

$40.99

$

Usually ships in 4-12 days

0

24

Gravely 04320800

ASSEMBLY, LARGE TANK FUEL PICKUP

$35.99

$

In Stock, only 2 left!

0

25

Gravely 04503800

90 DEG 3/16" HOSE ELBOW

$

$

Not available

26

Gravely 04571200

ASSM, VAPOR LINE (CARB) (Includes 6, 25, 27a, 27b 27c, and 28)

Note: (CARB) (Includes 6, 25, 27a, 27b 27c, and 28)

$

$

Not available

27a

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 8

0

27b

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 8

0

27c

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 8

0

28

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0
