992212 (PM 252M) - Gravely Pro-Master 52" Zero-Turn Mower, 27hp Kawasaki (SN: 003000 & Above) Steering Levers And Linkages Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Kawasaki

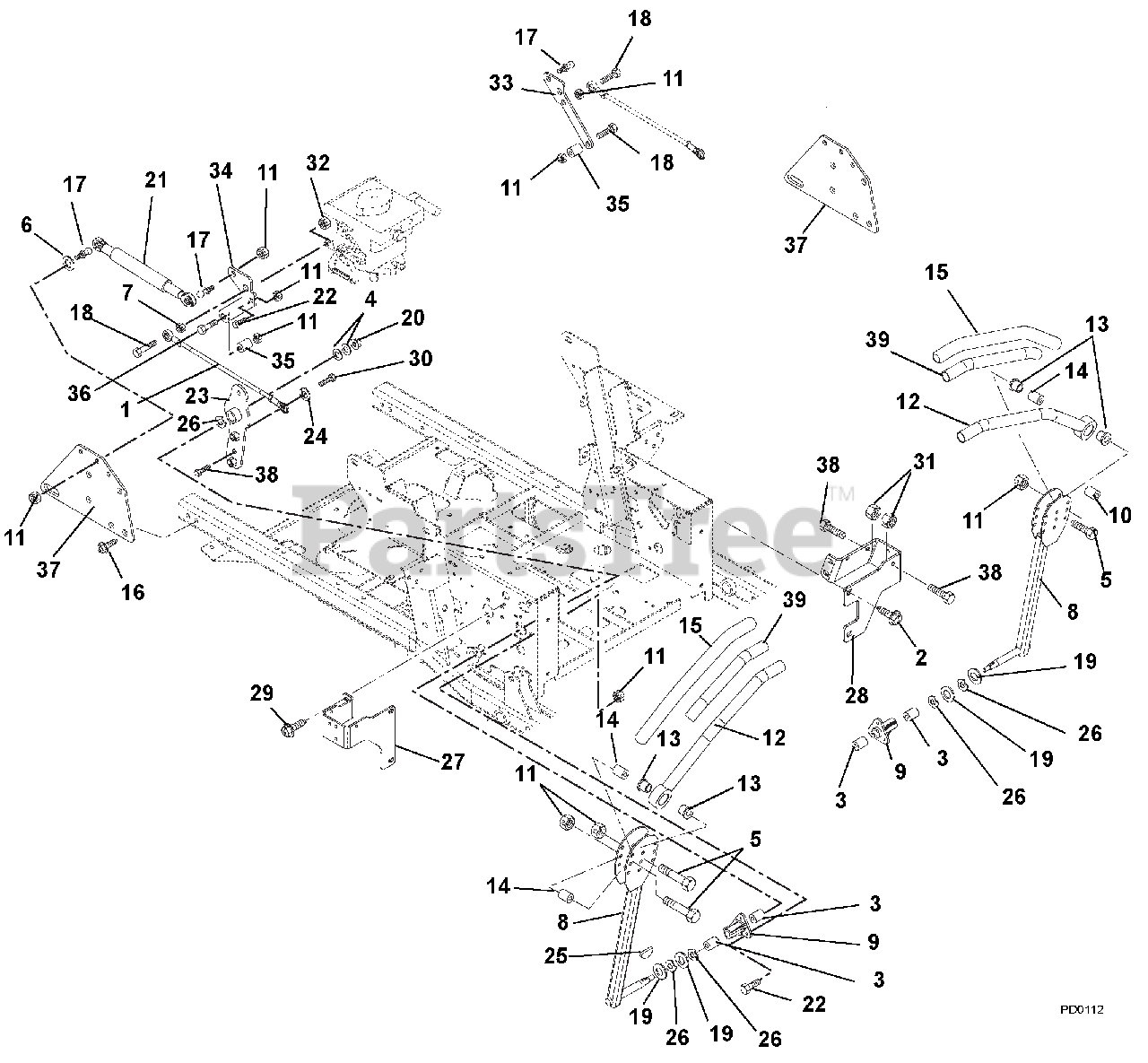

Steering Levers And Linkages Parts Diagram

  • Title

1

Gravely 00395900

ASSY,STEERING ROD .38RODX7.60

$34.99

$

In Stock, only 1 left!

0

2

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 05436800

BSHG .625X.750X.500

$10.99

$

Usually ships in 4-12 days

0

4

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.99

$

In Stock, Qty 9

0

6

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 09288651

CONTROL ARM WELDMENT - BLACK

$200.99

$

Usually ships in 4-12 days

0

9

Gravely 09294600

BUSHING, FLANGE

$36.99

$

Usually ships in 4-12 days

0

10

Gravely 05500932

BSHG, ECCENTRIC .328X.750X.970

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 09235500

HANDLE WLDMT LH

$111.99

$

In Stock, Qty 6

0

Gravely 09235600

WLDMT, RH HANDLE

$99.99

$

In Stock, only 2 left!

0

13

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$3.49

$

In Stock, Qty 12

0

14

Gravely 09235400

SPACER .328 X .76 X 1.01

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 03929100

GRIP, HANDLEBAR 1.00X1.38X11.3

$17.99

$

In Stock, only 3 left!

0

16

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 03652200

STUD- BALL

$4.99

$

In Stock, Qty 18

0

18

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.49

$

In Stock, Qty 13

0

19

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 03943800

DAMPER, STABILUS

$44.99

$

In Stock, Qty 5

0

22

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 04156300

WMT-PIVOT ARM

$156.99

$

Usually ships in 4-12 days

0

24

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06608400

KEY-WDRF .13X.63 HRD#5

$3.49

$

In Stock, only 1 left!

0

26

Gravely 03704900

WAVE WASHER .640X.875X.125FH

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 09289153

STOP, STEERING - RH

$77.99

$

Usually ships in 4-12 days

0

28

Gravely 09289253

STOP, STEERING - LH

$55.99

$

Usually ships in 4-12 days

0

29

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

30

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 00178351

BRKT, RTN DAMPER - LH

$21.99

$

Usually ships in 4-12 days

0

34

Gravely 00178251

BRKT, RTN DAMPER - RH

$23.99

$

Usually ships in 4-12 days

0

35

Gravely 03101900

SPACER .318X.430X.375

$

$

Not available

36

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$3.49

$

In Stock, Qty 12

0

37

Gravely 09289051

DAMPER BRACKET - BLACK

$10.99

$

Usually ships in 4-12 days

0

38

Gravely 05974000

BLT-HEX .375-16X1.750 FTD YWZC
(Superseded to 05901612)

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 03988300

TUBE, .88ID X 1.00OD X 10.25

$15.99

$

In Stock, only 2 left!

0
