992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Belts, Spindles, Idlers And Mower Blades Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

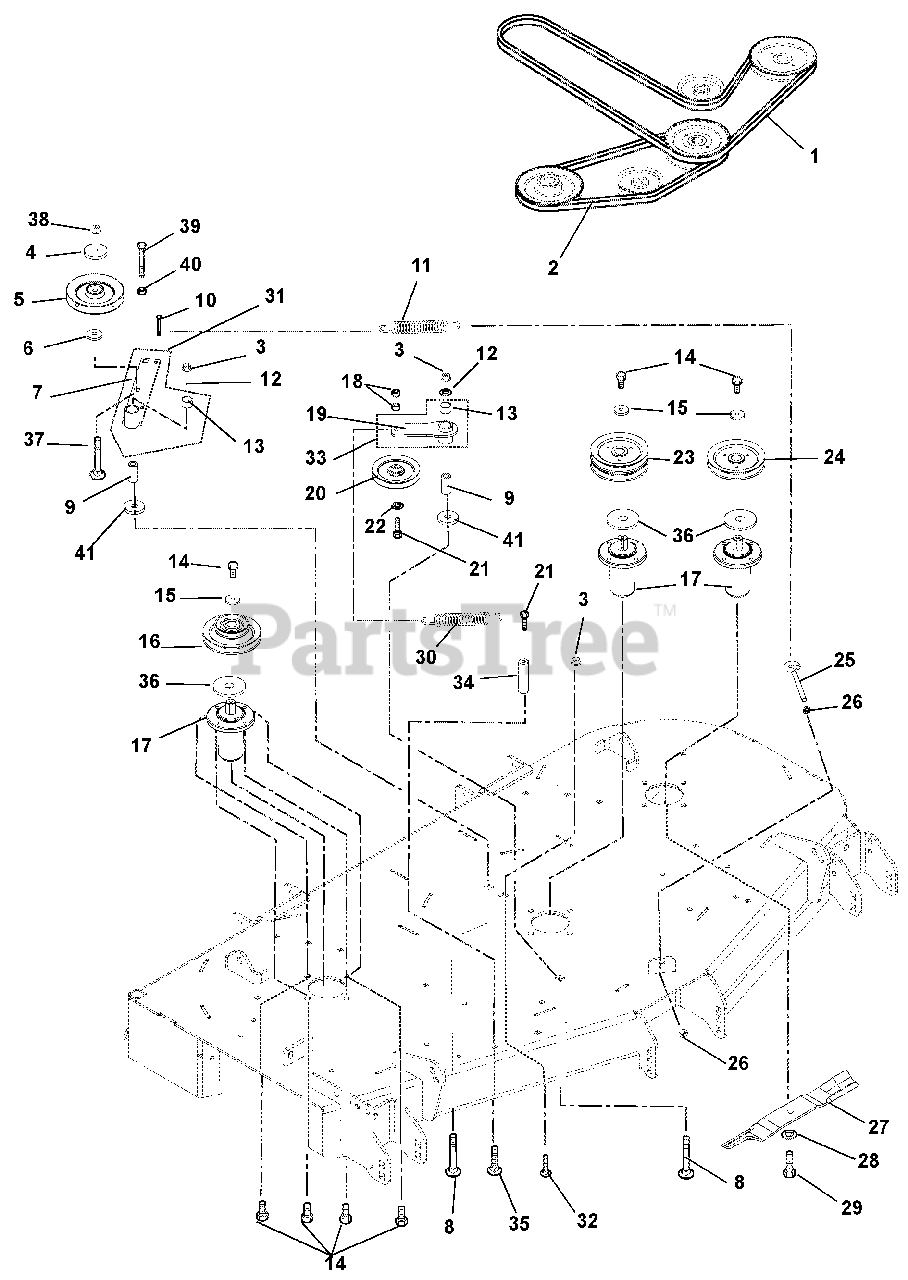

Belts, Spindles, Idlers And Mower Blades Parts Diagram

  • Title

1

Gravely 07200028

Belt, 130" Long, PTO Drive Hex

$134.99

$

In Stock, Qty 20+

0

2

Gravely 07200038

V-Belt, 63" Long Cog B-Section

$68.99

$

In Stock, Qty 20+

0

3

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 00450100

Cap, Idler Bearing Sealing

$15.99

$

In Stock, Qty 9

0

5

Gravely 07300527

Sheave, .50"ID x 6.00"OD V-Idler

$54.99

$

In Stock, Qty 20+

0

6

Gravely 05500905

Bushing, Spacer .502 x .997 x .50

$11.99

$

In Stock, Qty 13

0

7

Gravely 03774251

Idler, Pivot Arm

$70.99

$

In Stock, only 3 left!

0

8

Gravely 06225000

Bolt, Round Head Square Neck .50-13 x 3.50
(Superseded to 06200317)

$6.49

$

In Stock, Qty 19

0

9

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$6.99

$

In Stock, Qty 20+

0

10

Gravely 07000034

Bolt, Shoulder .38-16 x .30 Hex

$3.99

$

In Stock, Qty 10

0

11

Gravely 08300505

Spring, Extension

$27.99

$

In Stock, Qty 20+

0

12

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

14

Gravely 05900013

Bolt, Hex .38-16 x 1.00
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 07329167

Sheave, Double, 1" ID x 6.75" x 4.25" OD

$87.99

$

In Stock, Qty 15

0

17

Gravely 69221300

Spindle Assembly
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

18

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03774151

Idler, Pivot Arm

$52.99

$

In Stock, only 3 left!

0

20

Gravely 07300526

Assembly, V-Idler 5.00 O.D.
(Superseded to 07351800)

$31.99

$

In Stock, Qty 20+

0

21

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 07328867

Pulley, Double 1" ID x 6.75" OD
(Superseded to 59211500)

$93.99

$

In Stock, Qty 20+

0

24

Gravely 07328967

Pulley, V-1" ID x 6.75" OD
(Superseded to 59211600)

$84.99

$

In Stock, Qty 18

0

25

Gravely 07001604

Bolt, .38-16 x 5.50 .62 Diameter Eye

$7.49

$

In Stock, Qty 20+

0

26

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 09081200

Blade, Mower (20.50")

Note: (20.50")

$29.99

$

In Stock, Qty 20+

0

27

Gravely 08866900

Blade, Mulching (20.50")

Note: (20.50")

$37.99

$

In Stock, Qty 20+

0

28

Gravely 06445700

Washer, Bellville .63 x 1.625 x.14

$5.49

$

In Stock, Qty 20+

0

29

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

30

Gravely 08300507

Spring, Extension
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

31

Gravely 03796300

Assembly, PTO Idler Pivot Arm
(Superseded to 59218300)

Note: (Includes item 7 and item 13)

$81.99

$

In Stock, only 1 left!

0

32

Gravely 06200006

Bolt, Round Head Square Neck .50-13 x 1.5, Full Thread, Grade 5

$6.49

$

In Stock, Qty 10

0

33

Gravely 03796400

Assembly, Idler Pivot Arm

Note: (Includes item 13 and item 19 )

$64.99

$

In Stock, only 4 left!

0

34

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 5

0

35

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 00481000

Retainer, Grease

$10.99

$

In Stock, Qty 11

0

37

Gravely 06224900

Bolt, Round Head Square Neck .50-13 x 3.00 Grade 5

$6.49

$

In Stock, Qty 8

0

38

Gravely 06536300

Nut, Locking Center .50-13
(Superseded to 06500827)

$4.99

$

In Stock, Qty 16

0

39

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

40

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 06400829

Washer, Flat .640 x1.75 x.25

$4.99

$

In Stock, Qty 20+

0
