992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Brake Linkage Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

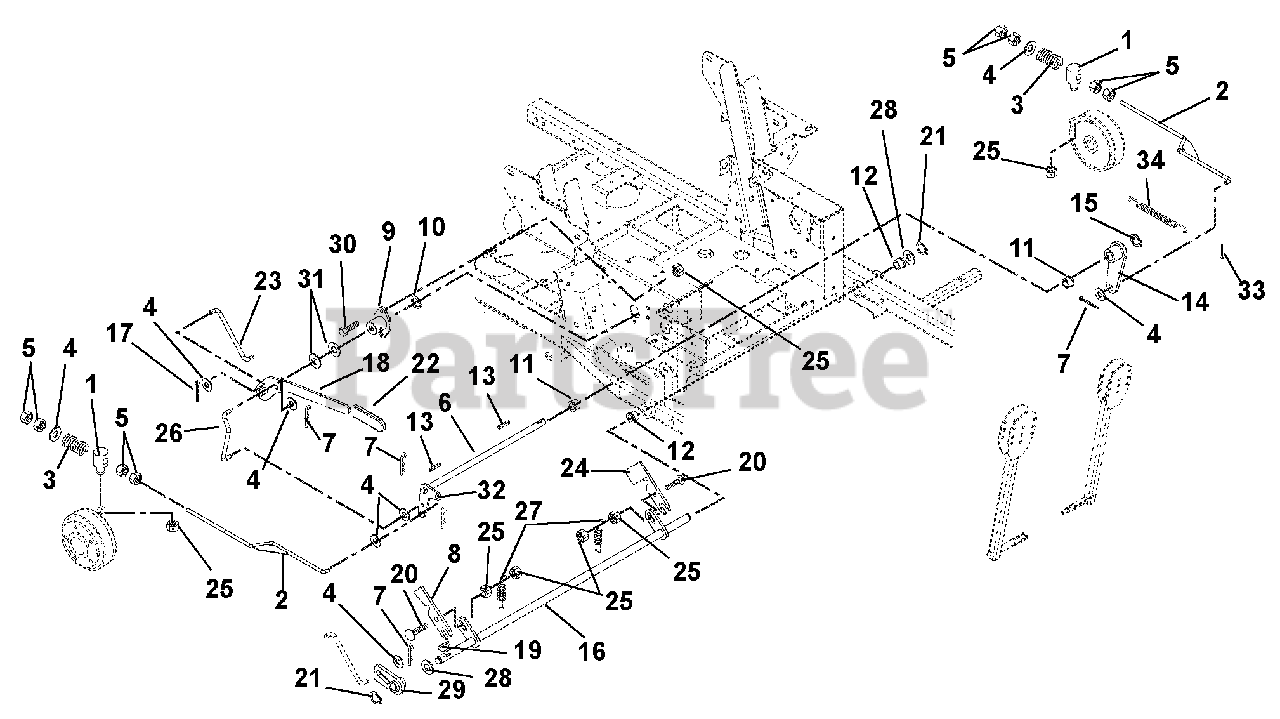

Brake Linkage Parts Diagram

  • Title

1

Gravely 09267300

Pivot, Brake Rod

$7.49

$

In Stock, only 2 left!

0

2

Gravely 00976800

Rod, Brake 200 XDZ LPG

$30.99

$

Usually ships in 4-12 days

0

3

Gravely 08300027

Spring, Compression .142 x .710 x 1.75

$9.99

$

In Stock, Qty 10

0

4

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03825800

Shaft, Brake Cross

$63.99

$

Usually ships in 4-12 days

0

7

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

8

Gravely 04156400

Slide, Interlocking Brake

$7.99

$

Usually ships in 4-12 days

0

9

Gravely 05534700

Bushing, Flange
(Superseded to 05534100)

$47.99

$

Usually ships in 4-12 days

0

10

Gravely 05709200

Ring, Retaining External .625 x .05

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 05518400

Bushing, Flange Nylon .762 x 1.00 x .58 x 1.48

$5.49

$

In Stock, Qty 20+

0

12

Gravely 05521100

Bushing, Flange .515 x .75 x .745 x 1.00

$2.99

$

In Stock, Qty 18

0

13

Gravely 06601300

Key, Square .188 x 1.00 x .188

$1.99

$

In Stock, Qty 5

0

14

Gravely 00258600

Arm, Brake Left Hand

$79.99

$

Usually ships in 4-12 days

0

15

Gravely 05714600

Ring, Retaining External .625 x .050

$2.99

$

In Stock, Qty 5

0

16

Gravely 09268000

Weldment, Mechanical Brake

$191.99

$

In Stock, only 1 left!

0

17

Gravely 06706900

Pin, Cotter External .09 x .75

$0.99

$

In Stock, Qty 8

0

18

Gravely 03254100

Weldment, Brake Handle

$115.99

$

Usually ships in 4-12 days

0

19

Gravely 06608400

Key, Woodruff .13 x .63

$2.99

$

In Stock, only 3 left!

0

20

Gravely 06219200

Bolt, Round Head Square Neck .31-18 x 1.25 Grade 5
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 05717100

Ring, Retaining External .50 x .05

$2.99

$

In Stock, only 2 left!

0

22

Gravely 07523000

Grip, Handle

$6.49

$

Usually ships in 4-12 days

0

23

Gravely 09268400

Linkage, Brake Actuating

$30.99

$

In Stock, only 1 left!

0

24

Gravely 04156500

Interlock, Safety Switch

$10.99

$

Usually ships in 4-12 days

0

25

Gravely 06543100

Nut, Locking, Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 09268300

Linkage, Brake Actuating

$34.99

$

Usually ships in 4-12 days

0

27

Gravely 08314100

Spring, Tension .063 x .44 x 1.56

$6.49

$

In Stock, Qty 6

0

28

Gravely 06439200

Washer, Flat Steel .505 x 1.00 x .062
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 09268100

Weldment, Parking Brake Hub

$194.99

$

Usually ships in 4-12 days

0

30

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06445100

Washer, Flat Steel .630 x 1.250 x .062

$2.99

$

In Stock, only 3 left!

0

32

Gravely 03825900

Weldment, 200 Brake Actuating Arm

$67.99

$

Usually ships in 4-12 days

0

33

Gravely 06707300

Pin, Cotter .12 x .75 Extended Prong Square Cut

$0.99

$

In Stock, Qty 5

0

34

Gravely 08300512

Spring, Extension

$17.99

$

In Stock, Qty 20+

0
