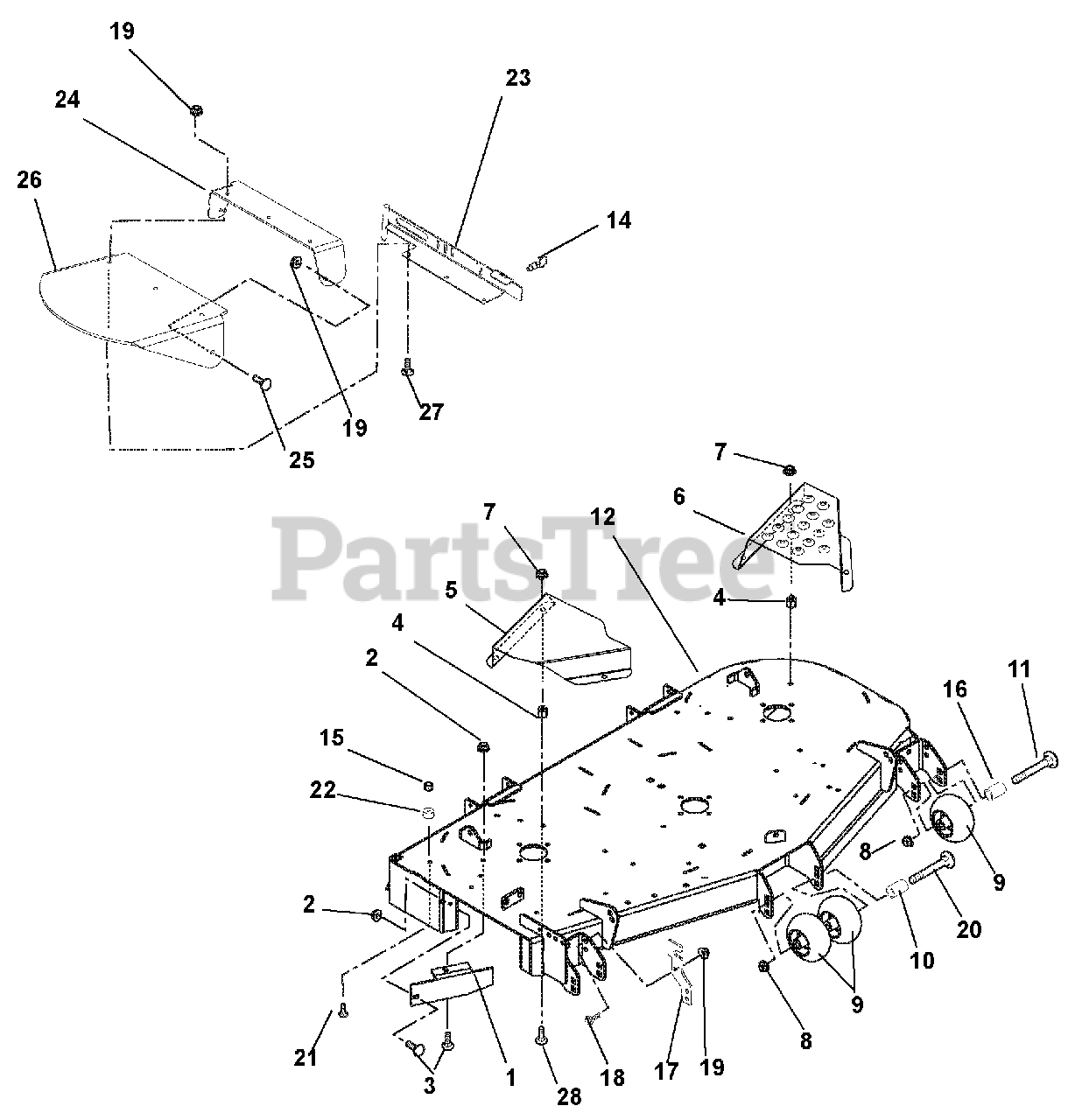

992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Deck, Discharge Chute, Anti-Scalp Rollers And Belt Covers Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

Deck, Discharge Chute, Anti-Scalp Rollers And Belt Covers Parts Diagram

  • Title

1

Gravely 00374153

60" DISCHARGE BAFFLE - RED

$30.99

$

In Stock, Qty 5

0

2

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 03982251

GUARD,RH DECK BELT,60-66

$64.99

$

Usually ships in 4-12 days

0

6

Gravely 03977251

GUARD,LH DECK BELT,60

$76.99

$

Usually ships in 4-12 days

0

7

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$14.99

$

In Stock, Qty 20+

0

10

Gravely 00473800

SPACER, .510X.625X6.50

$23.99

$

In Stock, Qty 20+

0

11

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

12

Gravely 03996653

PM260 SIDE DISCH DECK WMT -RED
(Superseded to 59224200)

$1405.99

$

Usually ships in 4-12 days

0

13

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$4.99

$

In Stock, Qty 20+

0

14

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

15

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 00473700

SPACER, .510X.625X3.35

$20.99

$

In Stock, Qty 20+

0

17

Gravely 00474753

CHUTE STORAGE BRACKET - RED

$29.99

$

Usually ships in 4-12 days

0

18

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$9.99

$

In Stock, Qty 20+

0

21

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$2.49

$

In Stock, Qty 9

0

22

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$6.99

$

In Stock, only 3 left!

0

23

Gravely 00980553

WMT, 52"-60" DISCH CHUTE MTG
(Superseded to 04727953)

$138.99

$

In Stock, only 1 left!

0

24

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$133.99

$

In Stock, only 1 left!

0

25

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

26

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$97.99

$

In Stock, only 3 left!

0

27

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.49

$

In Stock, Qty 20+

0

28

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0
