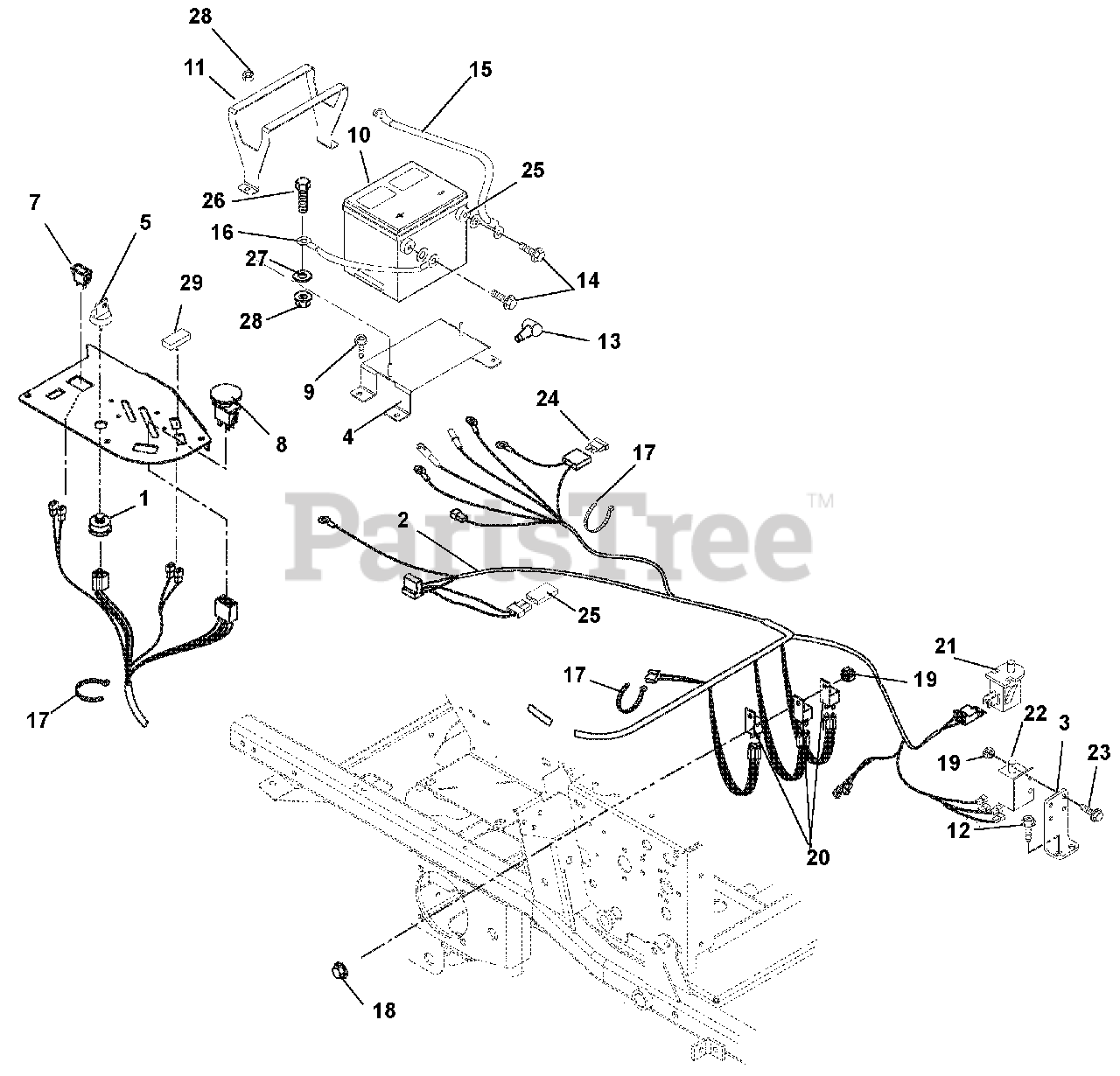

992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

Electrical System Parts Diagram

  • Title

1

Gravely 00464000

SWITCH, IGNITION
(Superseded to 04331600)

$47.99

$

In Stock, Qty 20+

0

2

Gravely 04294000

HARNESS-WIRE PM200 VERT. A/C

$193.99

$

In Stock, only 3 left!

0

3

Gravely 09275851

MOUNT, SAFETY SWITCH

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 00976351

PLATE, BATTERY MNT 200 XDZ LPG

$

$

Not available

5

Gravely 09287000

KEY, W/ SHIELD

$17.99

$

In Stock, Qty 20+

0

6

Gravely 21510400

IGNITION KEY SET

$10.99

$

In Stock, only 2 left!

0

7

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 16

0

8

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

9

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 04087300

BATTERY-GROUP 70-540 CCA

$

$

Not available

11

Gravely 04089351

BRACKET-BATTERY HOLD-DOWN

$73.99

$

Usually ships in 4-12 days

0

12

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0

14

Gravely 00526400

BATT TERMINAL SCREW

$

$

Not available

15

Gravely 00977300

CABLE,STARTER 18.O RED

$

$

Not available

16

Gravely 00977400

CABLE,GROUND 18.0 BLACK

$

$

Not available

17

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

18

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

21

Gravely 02754100

SWITCH- SNAP MTG N.O.

$9.99

$

In Stock, Qty 20+

0

22

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

23

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

24

Gravely 00191262

FUSE, 20 AMP BLADE S/O

Note: (Included with Harness)

$15.99

$

In Stock, only 2 left!

0

24

Gravely 21542101

FUSE, ATO 15 AMP

Note: (Included with Harness)

$

$

Not available

24

Gravely 02657600

FUSE-10 AMP 3AG FAST 50026426

Note: (Included with Harness)

$

$

Not available

25

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

26

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$7.99

$

In Stock, Qty 9

0
