992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

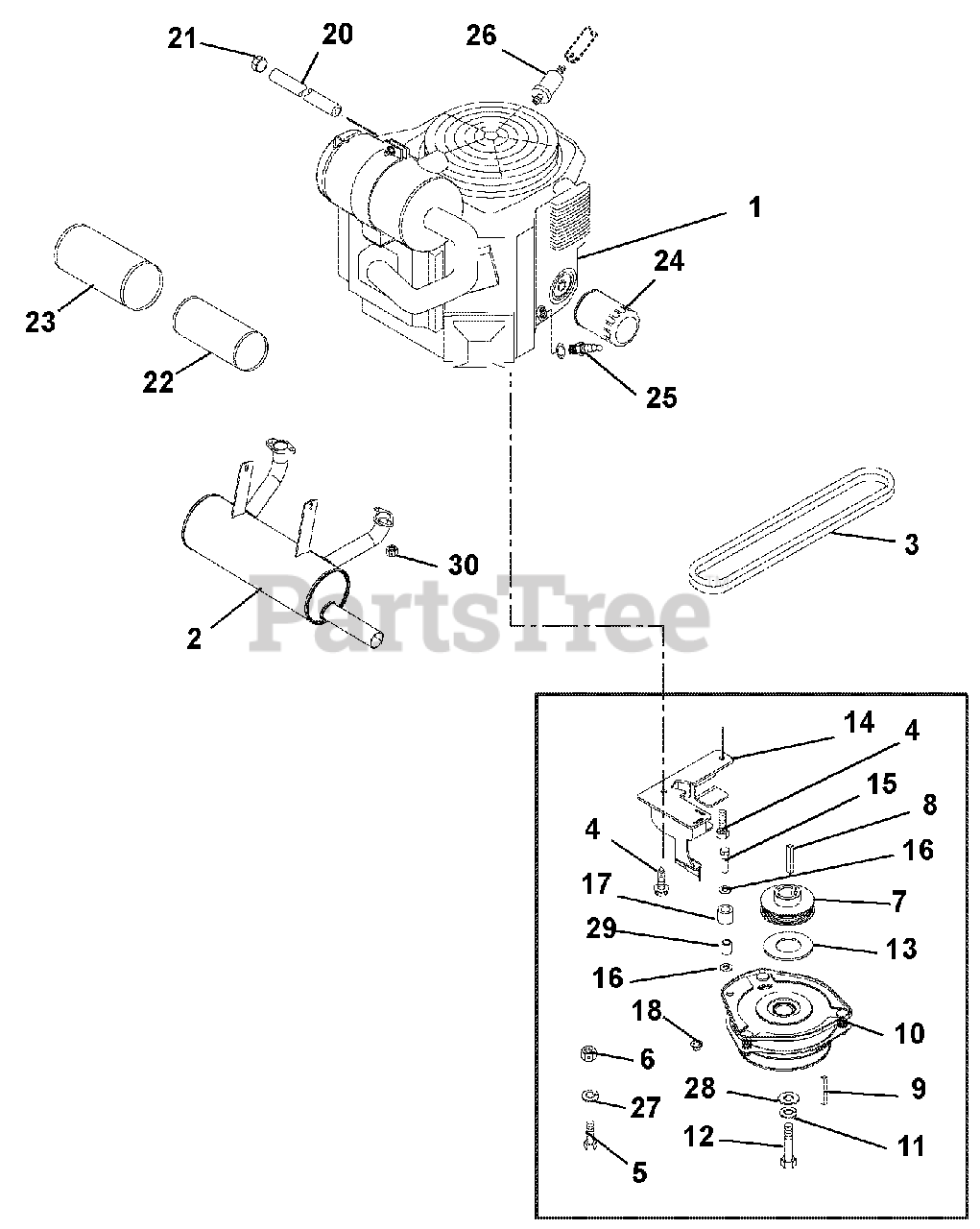

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200423

ENGINE, GENERAC GTV990 (LPG)

Note: (LPG)

$

$

Not available

2

Gravely 00976700

MUFFLER, GENERAC 990 LPG

Note: (LPG)

$

$

Not available

3

Gravely 07242000

POLY V-BELT, K-5 RIBS

$54.99

$

In Stock, Qty 18

0

4

Gravely 07417400

SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

$4.99

$

In Stock, only 2 left!

0

5

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

6

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07300440

SHEAVE - POLY-V 1.27 X 3.275

$

$

Not available

8

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 12

0

9

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 00447100

CLUTCH, ELE-OGURA GT3.5-VP01R

$512.99

$

In Stock, only 2 left!

0

11

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 05900040

BLT-HEX .44-20X2.25 G5 YZ EP80

$7.49

$

Usually ships in 4-12 days

0

13

Gravely 06400831

WASHER, 1.13IDX1.75ODX.048 ST

$

$

Not available

14

Gravely 03925851

CLUTCH STOP 200 XDZ LPG

$

$

Not available

15

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

16

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.49

$

In Stock, only 1 left!

0

18

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

20

Gravely 03873100

HOSE,HYD .38-11-0K M6NO-M6N0
(Superseded to 07001829)

$18.99

$

In Stock, only 2 left!

0

21

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

22

Gravely 21536900

ELEMENT, INNER SAFETY

$29.99

$

In Stock, Qty 11

0

23

Gravely 21537000

ELEMENT, OUTER PRIMARY

$37.99

$

In Stock, Qty 20+

0

24

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

25

Gravely 21536100

PLUG, SPARK

$10.99

$

In Stock, Qty 20+

0

26

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0

27

Gravely 06307200

WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

In Stock, Qty 9

0

28

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

29

Gravely 08905500

BUSH.,S.407X.625X.813 ST

$14.99

$

In Stock, only 2 left!

0

30

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 20+

0
