992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

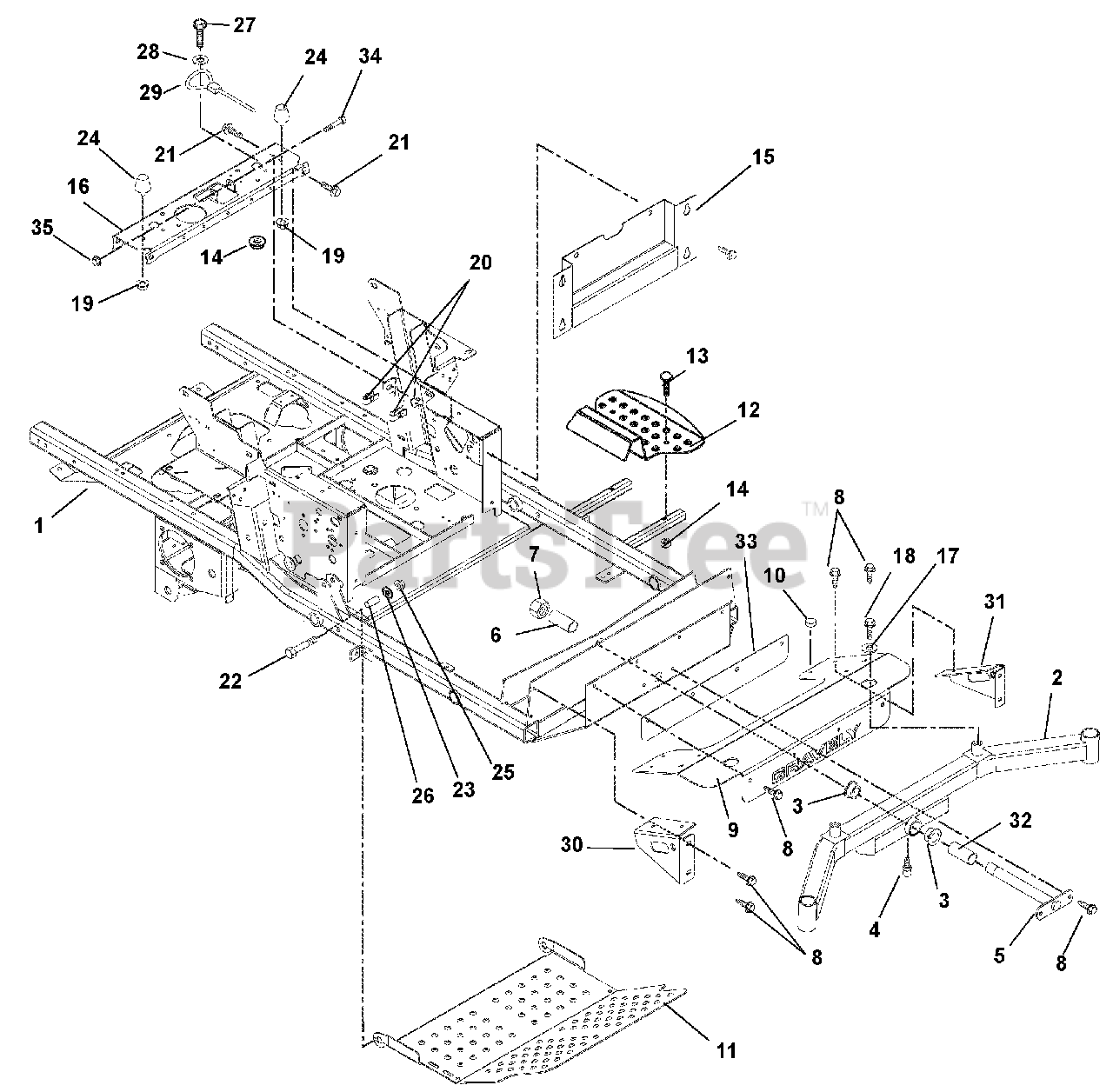

Frame Parts Diagram

  • Title

1

Gravely 00595253

WLDMT, FRAME

$

$

Not available

2

Gravely 00978153

WMT, FRONT AXLE

$727.99

$

Usually ships in 4-12 days

0

3

Gravely 05500914

BUSH, FLG 1.25X1.50X1.00X.200

$23.99

$

In Stock, Qty 10

0

4

Gravely 07012700

FTG,LUBE 45 DEG

$5.49

$

In Stock, only 2 left!

0

5

Gravely 09232000

PIN - AXLE

$72.99

$

In Stock, only 1 left!

0

6

Gravely 09231900

SPACER 1.009 X 1.250 X 4.23

$22.99

$

In Stock, only 4 left!

0

7

Gravely 06543200

NUT-LK-NYL 1.0-14 YWZC

$10.99

$

In Stock, only 1 left!

0

8

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 03998953

AXLE COVER

$149.99

$

Usually ships in 4-12 days

0

10

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 2 left!

0

11

Gravely 04180451

PANEL-INSPECTION

$

$

Not available

12

Gravely 09231251

STEP, INGRESS (BLACK)

$

$

Not available

13

Gravely 06220200

BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.99

$

In Stock, Qty 13

0

14

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 03795553

KICKPLATE, 200 SERIES

$

$

Not available

16

Gravely 04044953

BRACE, SEAT CROSS WITH LATCH

$

$

Not available

17

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$5.49

$

In Stock, Qty 20+

0

18

Gravely 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$4.99

$

In Stock, only 2 left!

0

19

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 07053300

NUT-RTNR .375-16X.37

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 05960000

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$4.99

$

In Stock, Qty 19

0

23

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 20+

0

24

Gravely 07533000

BUMPER, RUBBER CONE,STUD MOUNT

$15.99

$

In Stock, only 2 left!

0

25

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 05532100

BSHG-FLG .515X.750X.285X1.120

$

$

Not available

27

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

28

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$5.49

$

In Stock, Qty 14

0

29

Gravely 06900010

CABLE, SEAT PROP.

$54.99

$

Usually ships in 4-12 days

0

30

Gravely 03972253

WMT - RH AXLE COVER SUPPORT

$90.99

$

Usually ships in 4-12 days

0

31

Gravely 03972353

WMT - LH AXLE COVER SUPPORT

$90.99

$

Usually ships in 4-12 days

0

32

Gravely 00978200

SPCR, 1.25ODX1.0IDX3.63

$27.99

$

In Stock, only 4 left!

0

33

Gravely 03999051

PLATE, BACKER

$18.99

$

Usually ships in 4-12 days

0

34

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$3.49

$

In Stock, Qty 11

0

35

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0
