992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Fuel Tanks And Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

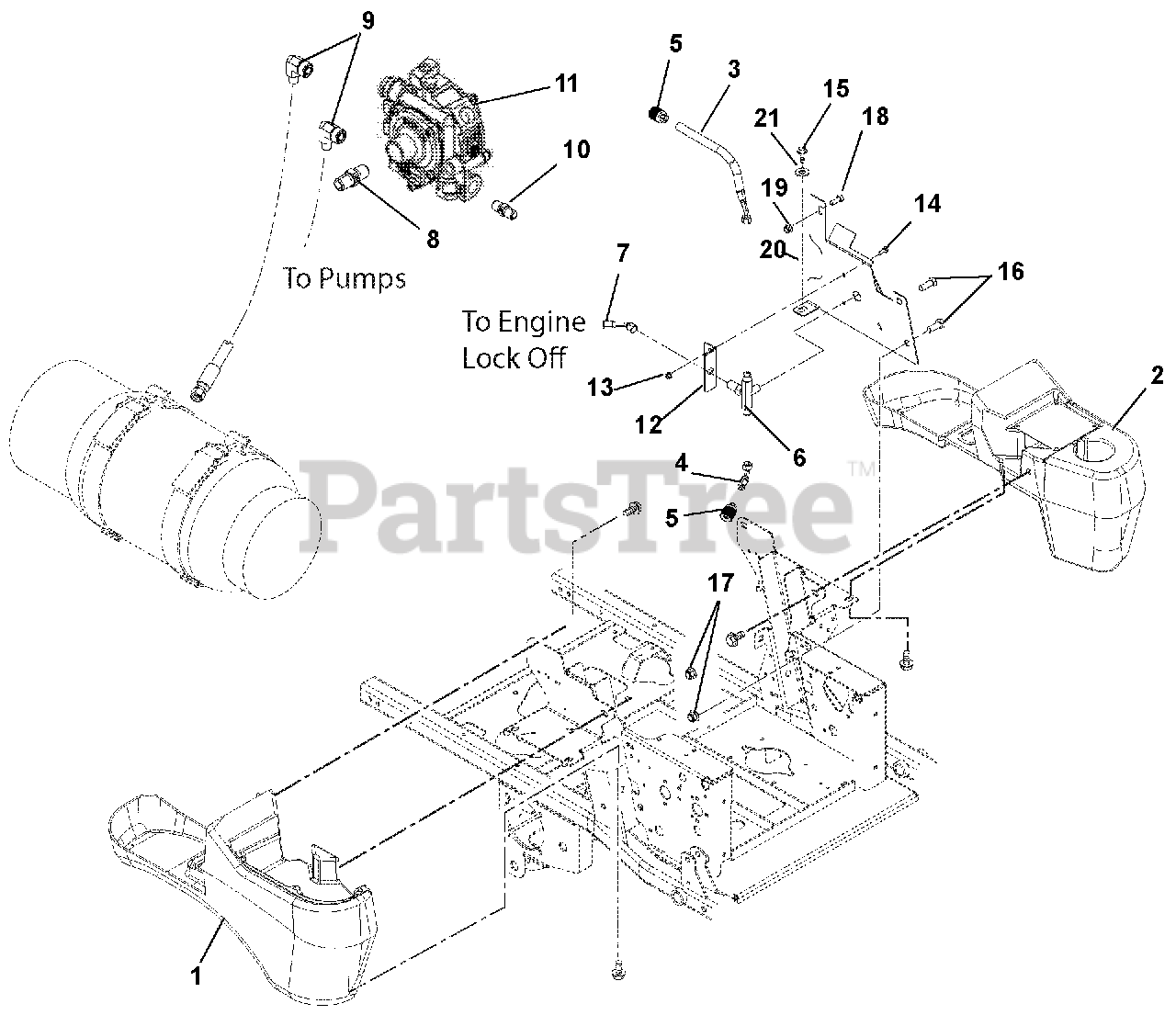

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 00973900

Fender, Right Hand 200 Series LPG

$

$

Not available

2

Gravely 00973800

Fender, Left Hand 200 Series LPG

$

$

Not available

3

Gravely 03962900

Hose, LPG

$

$

Not available

4

Gravely 03962800

Hose, LPG

$

$

Not available

5

Gravely 07001515

Fitting, LPG Tank

$

$

Not available

6

Gravely 03877900

Valve, Sherwood T

$287.99

$

Usually ships in 4-12 days

0

7

Gravely 03962700

Hose, LPG

$

$

Not available

8

Gravely 03878100

Fitting, Barb .50-.38

$10.99

$

Usually ships in 4-12 days

0

9

Gravely 03878000

Fitting, Barb 1/4NPT x 8ORF 90 Degree

$

$

Not available

10

Gravely 07001512

Fitting, LPG Straight 1/4NPT Parker 216P-4

$

$

Not available

11

Gravely 03878300

Regulator, LPG IMPCO T60

$

$

Not available

12

Gravely 03962451

Mount, Fuel T

$

$

Not available

13

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 03962351

Weldment, Support Fuel T

$

$

Not available

16

Gravely 05958900

Bolt, Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, Qty 12

0

17

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

19

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 07414100

Screw, Tapping .38-16 x 1.00 Hex Washer Head
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0
