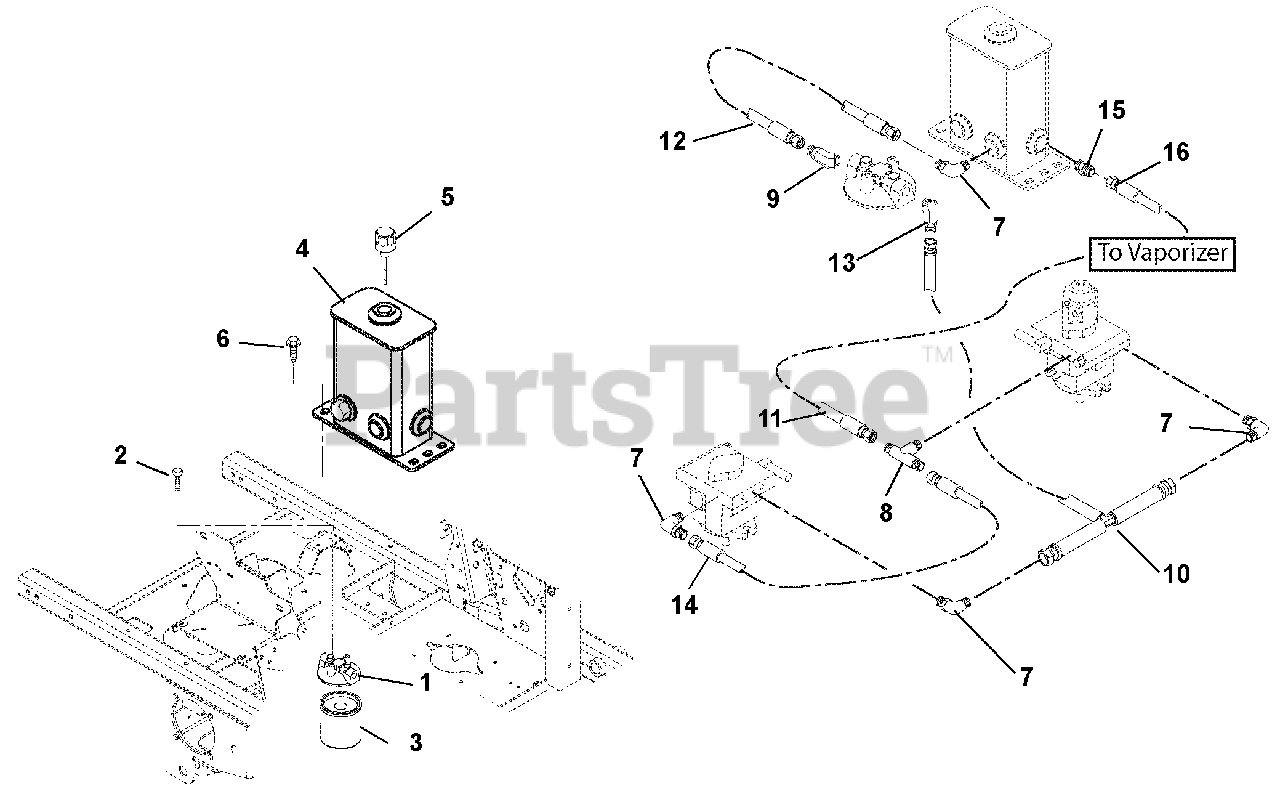

992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Hydraulic Tank, Filter, Pumps and Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

Hydraulic Tank, Filter, Pumps and Hoses Parts Diagram

  • Title

1

Gravely 00672000

Head, Filter

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Epoxy Grade 5
(Superseded to 05901918)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 03931900

Oil Filter

$30.99

$

In Stock, Qty 12

0

4

Gravely 02985251

Weldment, Formed Hydraulic Tank – 2 PORT

$200.99

$

Usually ships in 4-12 days

0

5

Gravely 00463000

Dipstick, Breather

$51.99

$

In Stock, only 1 left!

0

6

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07069600

Fitting, Hydraulic, 90 Degree Elbow, Steel M8F-M80

$35.99

$

Usually ships in 4-12 days

0

8

Gravely 07069500

Fitting, Hydraulic Tee M80-M80-M80

$62.99

$

Usually ships in 4-12 days

0

9

Gravely 07059900

Fitting, Hydraulic Straight M80-M80

$9.99

$

Usually ships in 4-12 days

0

10

Gravely 00364800

Hose, Tee Assembly, .50

$157.99

$

Usually ships in 4-12 days

0

11

Gravely 00602000

Hose, Hydraulic .50-31 F8F0-F8F0

$

$

Not available

12

Gravely 00589900

Hose, Hydraulic Molded

$

$

Not available

13

Gravely 07066200

Fitting, Hydraulic 45° M80-M80

$62.99

$

Usually ships in 4-12 days

0

14

Gravely 00364700

Hose, Hydraulic

$78.99

$

Usually ships in 4-12 days

0

15

Gravely 07066200

Fitting, Hydraulic 45 Degree M8F-M80

$62.99

$

Usually ships in 4-12 days

0

16

Gravely 03933700

Hose, Hydraulic .50-13-OK F8F0-F8F0

$

$

Not available
