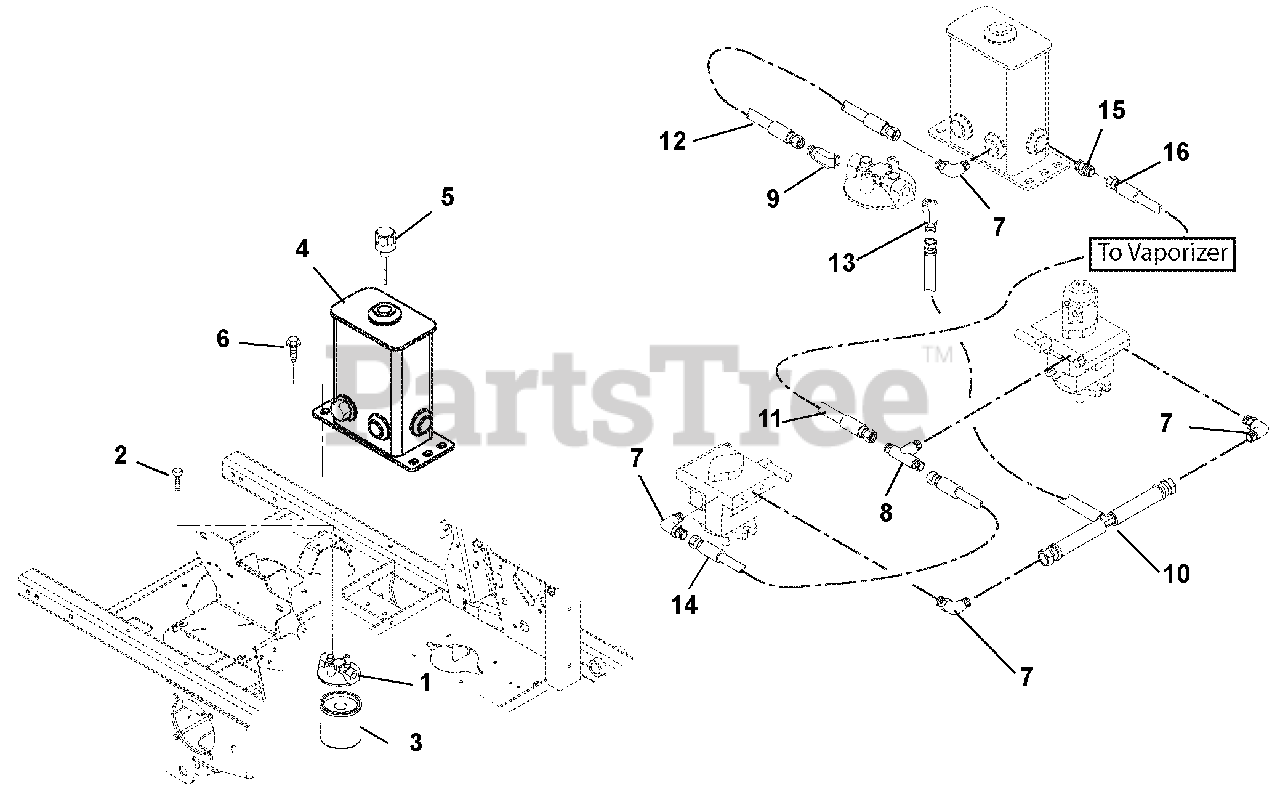

992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Hydraulic Tank, Filter, Pumps and Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

Hydraulic Tank, Filter, Pumps and Hoses Parts Diagram

  • Title

1

Gravely 00672000

HEAD, FILTER

$26.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

BLT-HEX .25-20X.50 GR5 EPOXY
(Superseded to 05901918)

$2.99

$

In Stock, Qty 13

0

3

Gravely 03931900

FILTER,OIL-W/BYPASS

$31.99

$

In Stock, Qty 18

0

4

Gravely 02985251

WMT,FORMED HYD TANK-2 PORT

$209.99

$

Usually ships in 4-12 days

0

5

Gravely 00463000

BREATHER, DIPSTICK

$

$

Not available

6

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 07069600

FTG. HYD. 90 EL M8F-M8O

$36.99

$

Usually ships in 4-12 days

0

8

Gravely 07069500

FTG.HYD TEE M8O-M8O-M8O

$64.99

$

Usually ships in 4-12 days

0

9

Gravely 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$10.99

$

In Stock, only 2 left!

0

10

Gravely 00364800

HOSE, TEE ASSM .50" 8O-8O-8O

$164.99

$

Usually ships in 4-12 days

0

11

Gravely 00602000

HOSE,HYD. .50-31 F8F0-F8F0

$

$

Not available

12

Gravely 00589900

ASSY, HYDRAULIC LINE

$

$

Not available

13

Gravely 07066200

FTG,HYD 45DEG M8F-M80

$64.99

$

Usually ships in 4-12 days

0

14

Gravely 00364700

HOSE,HYD..50-16-0K FO8J0-FO8J0

$82.99

$

Usually ships in 4-12 days

0

15

Gravely 07066200

FTG,HYD 45DEG M8F-M80

$64.99

$

Usually ships in 4-12 days

0

16

Gravely 03933700

HOSE,HYD .50-13-OK F8F0-F8F0

$

$

Not available
