992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Hydro-Gear Hydrostatic Pump Left Hand Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

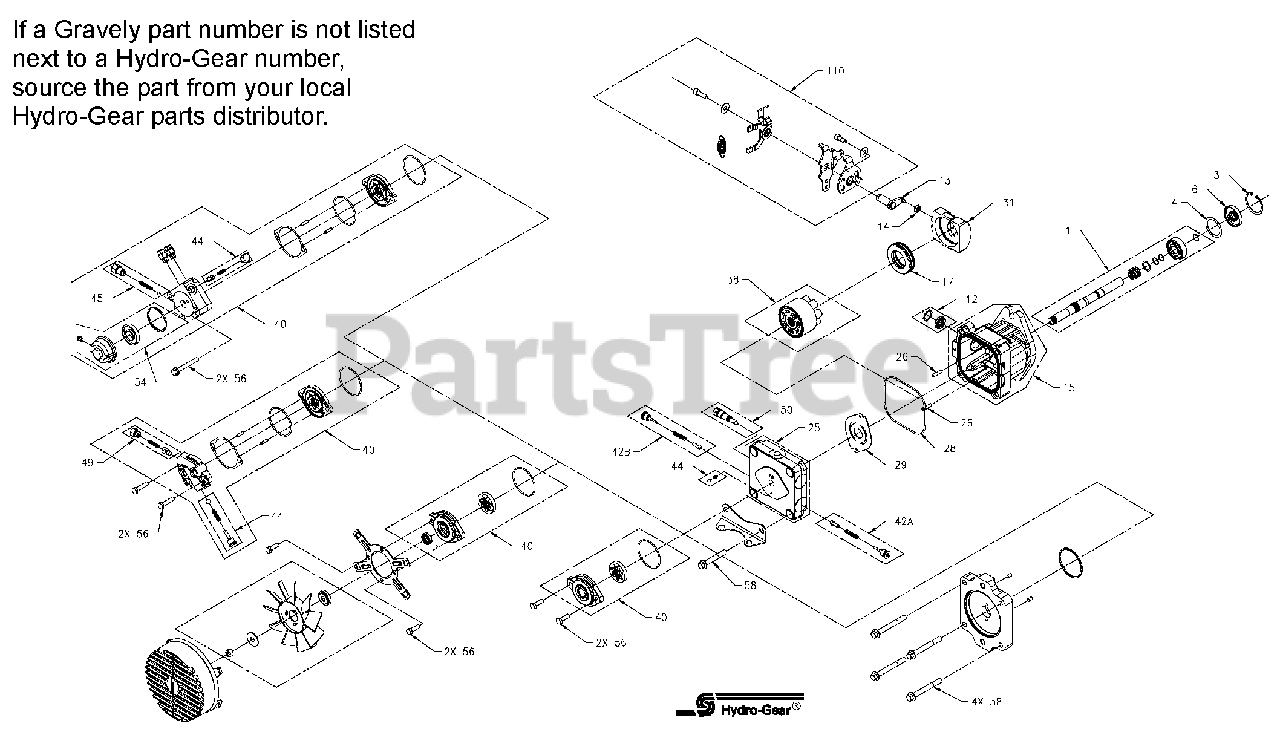

Hydro-Gear Hydrostatic Pump Left Hand Parts Diagram

  • Title

1

Gravely 21543908

Kit, Input Shaft

Note: Hydro-Gear P/N 70581

$209.99

$

Usually ships in 4-12 days

0

3

Gravely 21543962

Ring, Retaining

Note: Hydro-Gear P/N 2000038

$4.49

$

Usually ships in 4-12 days

0

4

Gravely 21543961

Washer, 1.45 x 1.84 x .04

Note: Hydro-Gear P/N 2000023

$

$

Not available

6

Gravely 21543796

Lip Seal, 17 x 47 x 8

Note: Hydro-Gear P/N 51092

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 21543922

Kit, Trunnion Seal

Note: Hydro-Gear P/N 70739

$8.49

$

Usually ships in 4-12 days

0

13

Gravely 21543842

Trunnion Arm, Taper Square

Note: Hydro-Gear P/N 51596

$

$

Not available

14

Gravely 08610700

Slot Guide

Note: Hydro-Gear P/N 2000015

$

$

Not available

15

Gravely 21543943

Kit, Housing

Note: Hydro-Gear P/N 71060

$401.99

$

Usually ships in 4-12 days

0

17

Gravely 21543747

Assembly, Thrust Ball Bearing

Note: Hydro-Gear P/N 50552

$

$

Not available

25

Gravely 21543970

Kit, Endcap

Note: Hydro-Gear P/N 2510069

$305.99

$

Usually ships in 4-12 days

0

26

Gravely 21543750

Pin

Note: Hydro-Gear P/N 50641

$

$

Not available

28

Gravely 21543742

O-Ring

Note: Hydro-Gear P/N 50381

$7.49

$

Usually ships in 4-12 days

0

29

Gravely 21543852

Valve Plate

Note: Hydro-Gear P/N 51764

$

$

Not available

31

Gravely 21543729

Variable Swashplate

Note: Hydro-Gear P/N 50203

$

$

Not available

38

Gravely 21543879

Kit, Cylinder Block

Note: Hydro-Gear P/N 70082

$103.99

$

Usually ships in 4-12 days

0

40

Gravely N/A

Kit, Charge Pump

Note: Hydro-Gear P/N 70924

$

$

Currently unavailable

42

Gravely 21543923

Kit, Shock Valve

Note: Hydro-Gear P/N 70743

$

$

Not available

44

Gravely 21543956

Kit, Charge Relief

Note: Hydro-Gear P/N 71361

$

$

Not available

45

Gravely 21543974

Kit, Auxilary Relief Valve

Note: Hydro-Gear P/N 2510082

$23.99

$

Usually ships in 4-12 days

0

49

Gravely N/A

Kit, Auxilary Bypass/Check Kit

Note: Hydro-Gear P/N 2510020

$

$

Currently unavailable

50

Gravely 21543979

Kit, Bypass Valve

Note: Hydro-Gear P/N 2513030

$29.99

$

Usually ships in 4-12 days

0

54

Gravely 59210300

Kit, Auxilary Filter Kit

Note: Hydro-Gear P/N 2510090

$

$

Not available

56

Gravely 21543784

Screw, 5/16-18 x 2.5

Note: Hydro-Gear P/N 51055

$

$

Not available

58

Gravely 21543942

Kit, HSG Bolt

Note: Hydro-Gear P/N 71059

$

$

Not available

NS

Gravely N/A

Kit, Overhaul Seal Kit

Note: Hydro-Gear P/N 2510073

$

$

Currently unavailable

110

Gravely 21543936

Kit, Return

Note: Hydro-Gear P/N 70870

$84.99

$

In Stock, only 1 left!

0
