992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Hydrostatic Pumps And Idlers Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

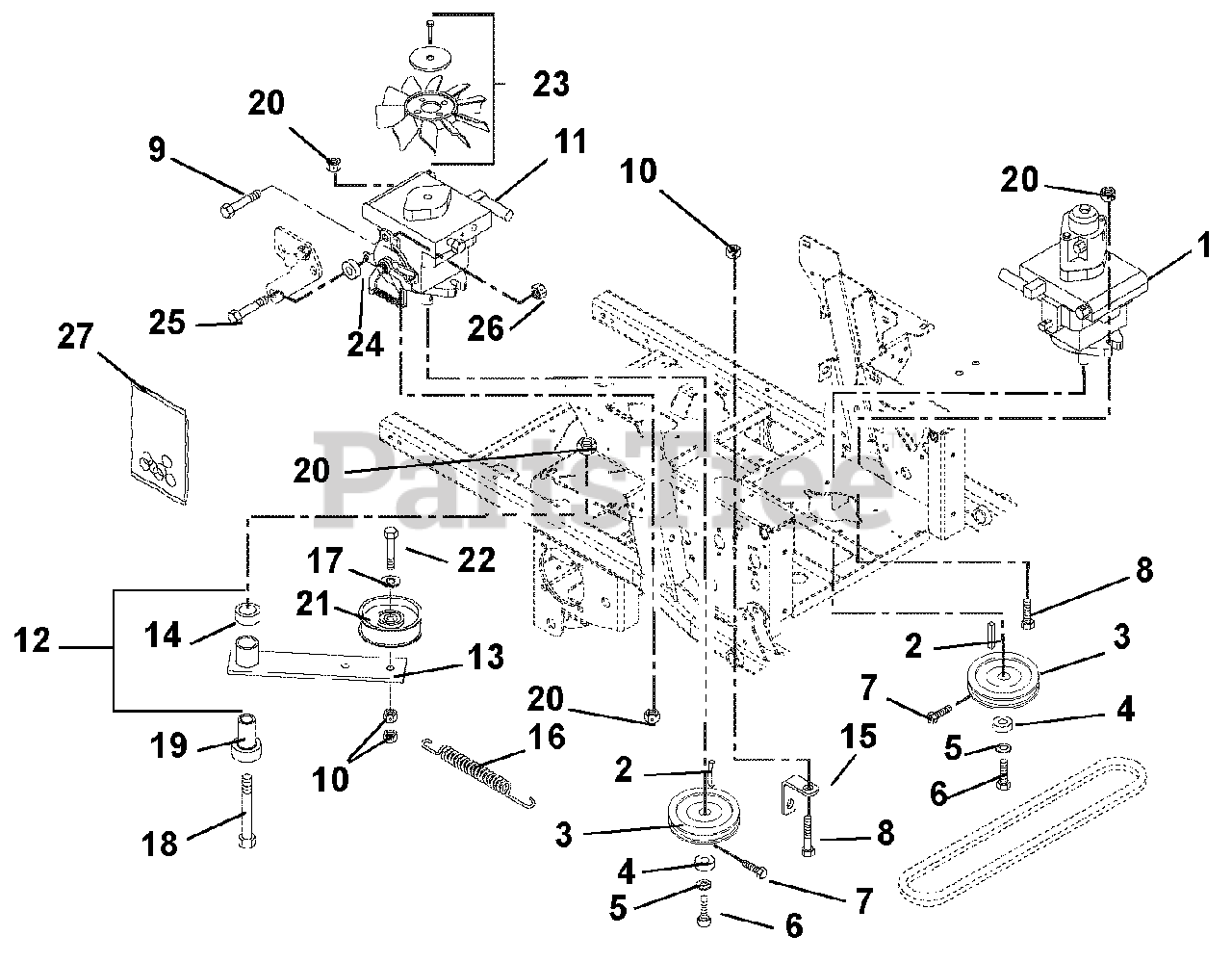

Hydrostatic Pumps And Idlers Parts Diagram

  • Title

1

Gravely 00583400

Pump, Hydraulic with Auxiliary

$1905.99

$

Usually ships in 4-12 days

0

2

Gravely 06611300

Key, Square 5 x 5 x 30mm Plain

$2.49

$

In Stock, Qty 8

0

3

Gravely 07300037

Sheave, Poly V .671 x 4.125

$77.99

$

In Stock, only 2 left!

0

4

Gravely 06426600

Washer, Flat Steel .281 x 1.000 x .063
(Superseded to 06401020)

$0.99

$

In Stock, only 2 left!

0

5

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

6

Gravely 05900017

Bolt, Hex M6 x 1.0 x 12 YZ EP30

$5.99

$

In Stock, only 1 left!

0

7

Gravely 05900127

Screw, Socket Head .25-20 x .50 EP80

$3.99

$

In Stock, only 2 left!

0

8

Gravely 05962000

Bolt, Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

9

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

10

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00583600

Pump, Hydraulic BDP-21 with Thru Fan

$1612.99

$

Usually ships in 4-12 days

0

12

Gravely 09219000

Assembly, Idler Arm Guard Drive

Note: (Includes 13 & 14)

$100.99

$

In Stock, only 1 left!

0

13

Gravely 09217051

Weldment, Idler Arm Ground Drive
(Superseded to 09217000)

$111.99

$

Usually ships in 4-12 days

0

14

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$10.99

$

In Stock, Qty 7

0

15

Gravely 09291151

Anchor, Spring Idler
(Superseded to 04411951)

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 08300507

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 9

0

17

Gravely 06444300

Washer, Flat Steel .39 x .75 x.125

$7.99

$

In Stock, Qty 9

0

18

Gravely 05965800

Bolt, Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

19

Gravely 07000031

Bearing, Pedestal

$79.99

$

In Stock, Qty 7

0

20

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07312500

Idler, Flay 4.00 x .38
(Superseded to 07300101)

$62.99

$

In Stock, Qty 16

0

22

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 03368800

Fan, Hydro Pump Cooling

$32.99

$

In Stock, Qty 6

0

24

Gravely 03101900

Spacer .318 x .43 x .375

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

26

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 59203700

Kit, Pump Seal (BDP-21A)

Note: (One kit required for each pump)

$90.99

$

Usually ships in 4-12 days

0
