992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

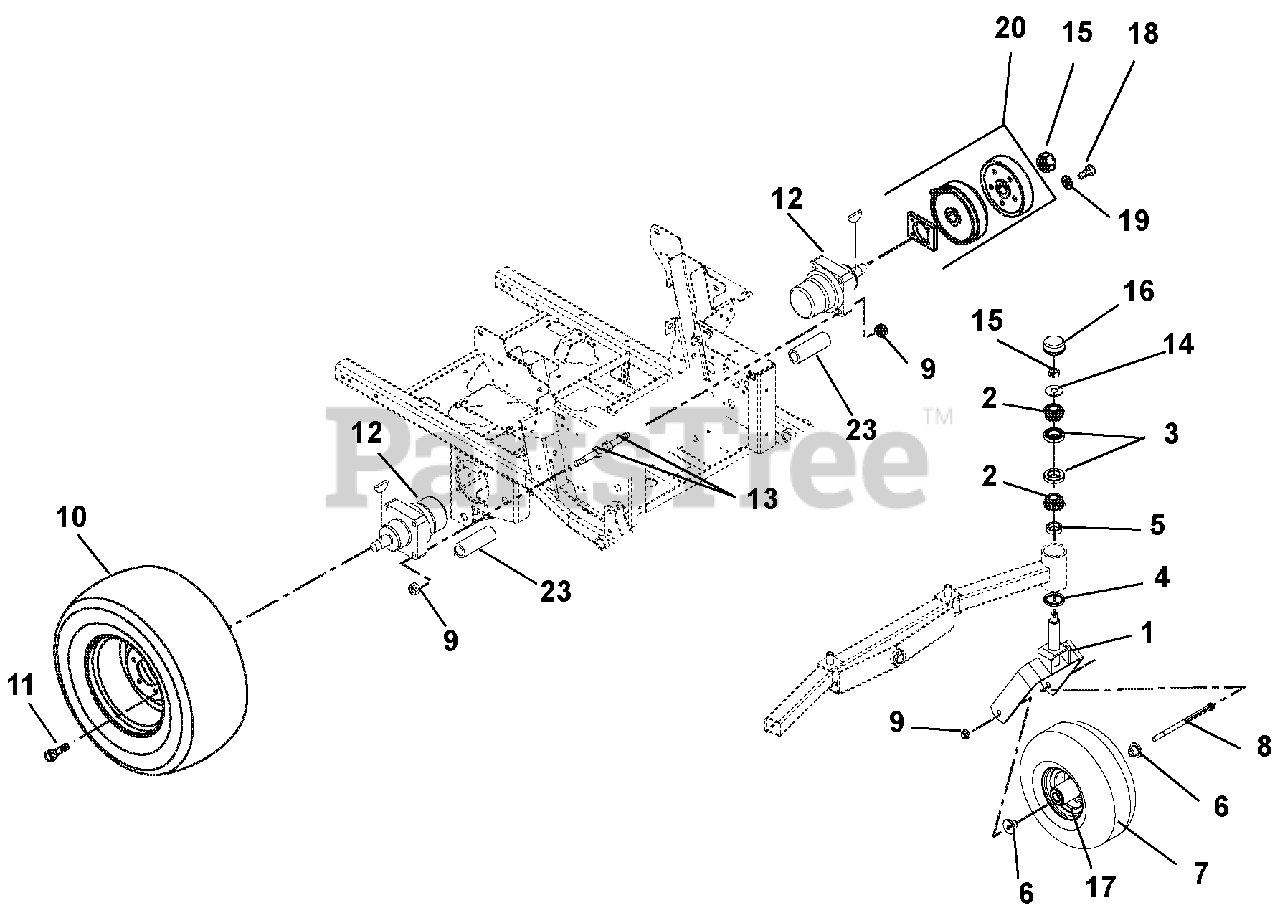

Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

  • Title

1

Gravely 03758753

Fork, Front

$168.99

$

In Stock, only 3 left!

0

2

Gravely 05404700

Bearing, Cone

$22.99

$

In Stock, Qty 19

0

3

Gravely 05404600

Bearing, Cup 2.328 x .465

$15.99

$

In Stock, Qty 9

0

4

Gravely 05600432

Bearing Seal 1.75 x 2.332 x .312

$12.99

$

In Stock, only 4 left!

0

5

Gravely 03760300

Spacer, 1.258ID x 1.750OD x .550

$34.99

$

Usually ships in 4-12 days

0

6

Gravely 00675300

Spacer, Wheel

$9.49

$

In Stock, Qty 20+

0

7

Gravely 07100904

Wheel/Tire Assembly – 15 x 6-6, Smooth
(Superseded to 59219000)

$197.99

$

In Stock, only 2 left!

0

7

Gravely 07100905

Tire, 15 x 6-6, Smooth

$87.99

$

In Stock, only 2 left!

0

8

Gravely 05961200

Bolt, Hex .50-13 x 9.00 Grade 5
(Superseded to 05901930)

$11.99

$

In Stock, Qty 19

0

9

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07100207

Tire/Wheel Assembly, 24 x 11.50-12
(Superseded to 07101040)

$300.99

$

Usually ships in 4-12 days

0

10

Gravely 07100208

Tire, 24 x 11.50-12
(Superseded to 07101041)

$250.99

$

Usually ships in 4-12 days

0

11

Gravely 07000143

Bolt, Lug .50-20 x 1.38

$3.99

$

In Stock, Qty 20+

0

12

Gravely 09263100

Wheel Motor, Parker

$963.99

$

Usually ships in 4-12 days

0

12

Gravely 21544028

Seal Kit

Note: (for 09263100 Wheel Motor) (Not Shown)

$139.99

$

Usually ships in 4-12 days

0

13

Gravely 07067300

Bolt, Wheel Motor .50-13 x 5.00

$7.49

$

Usually ships in 4-12 days

0

14

Gravely 06439800

Washer, Flat Steel, .812 x 2.00 x .148
(Superseded to 06401201)

$4.99

$

In Stock, Qty 12

0

15

Gravely 06541900

Nut, Locking Jam Patch 1.00-20

$33.99

$

In Stock, only 1 left!

0

16

Gravely 03925900

Cap, Dust

$11.99

$

In Stock, only 4 left!

0

17

Gravely 05435700

Bearing, 25mm I.D. x 52mm OD x 15mm

$25.99

$

In Stock, Qty 20+

0

18

Gravely 05981600

Bolt, Hex .31-18 x 1.50 Grade 8 EP30

$3.99

$

In Stock, Qty 6

0

19

Gravely 06308600

Washer, Lock .31 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 58904300

Kit, Parking Brake Service

$611.99

$

Usually ships in 4-12 days

0

21

Gravely 06607800

Key, Woodruff .31 x 1.00

$4.99

$

Usually ships in 4-12 days

0

22

Gravely 21544029

Kit, Parker TF Motors Seal

$242.99

$

Usually ships in 4-12 days

0

23

Gravely 05531400

Bushing, Sleeve .513 x .748 x 2.129

$14.99

$

Usually ships in 4-12 days

0
