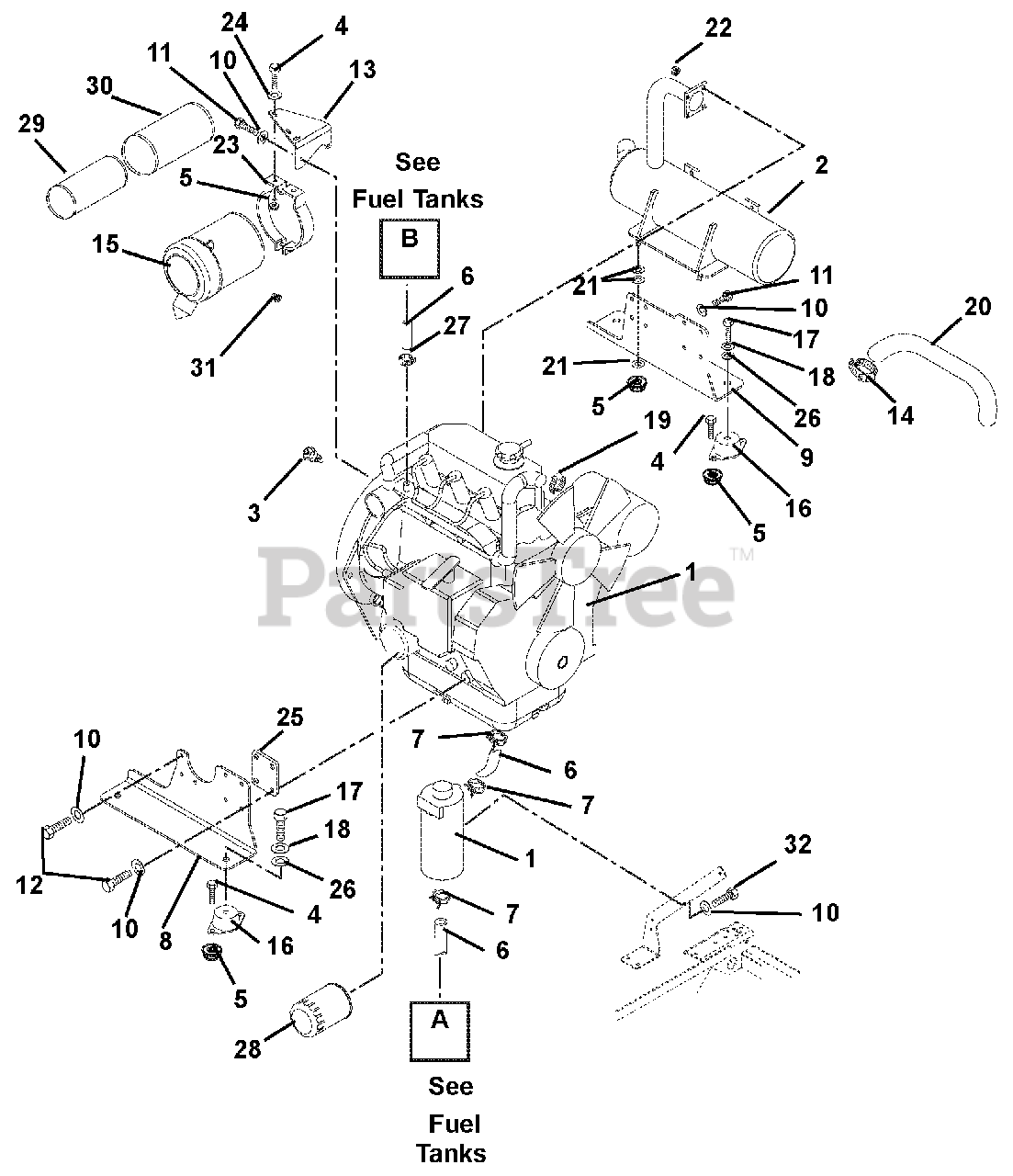

992215 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 002999) Engine, Muffler & Air Filter Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

Engine, Muffler & Air Filter Parts Diagram

  • Title

1

Gravely 08270300

ENGINE, 27HP DIESEL (DAIHATSU)

Note: (950D) (582447-0405-E2) (215)

$

$

Not available

Gravely 08267100

ENGINE, 31HP DIESEL (DAIHATSU)

Note: (950DT) (588447-0305-E2) (216)

$

$

Not available

2

Gravely 09297800

MUFFLER

Note: (215)

$562.99

$

Usually ships in 4-12 days

0

Gravely 09265900

MUFFLER

Note: (216)

$521.99

$

Usually ships in 4-12 days

0

3

Gravely 09263300

SENDER, TEMPERATURE

$55.99

$

Usually ships in 4-12 days

0

4

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 10

0

5

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 00922600

HOSE,5/16 ID

$0.99

$

Usually ships in 4-12 days

0

7

Gravely 06947900

CLAMP, HOSE WIRE .520/.550

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 09265251

MOUNT, ENGINE RH (DIESEL)

$

$

Not available

9

Gravely 09265351

MOUNT, ENGINE LH (DIESEL)

$82.99

$

Usually ships in 4-12 days

0

10

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 05964900

BLT, HEX M8-1.25X25 GR8.8YWZC

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 09295051

BRKT, AIR CLEANER - BLACK

$82.99

$

In Stock, only 1 left!

0

14

Gravely 06934700

CLAMP, HOSE #32 (1.56"-2.50")

Note: (1.56" - 2.50")

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 03782600

CLEANER, AIR

$177.99

$

Usually ships in 4-12 days

0

16

Gravely 05034800

MOUNT, ENGINE, VIBRATION ISO

$22.99

$

Usually ships in 4-12 days

0

17

Gravely 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$3.49

$

In Stock, only 4 left!

0

18

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

19

Gravely 06922200

CLAMP-HOSE 1.50X.81X1.42

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 09295400

HOSE, AIR CLEANER

Note: (215)

$

$

Not available

Gravely 00172600

HOSE, AIR CLEANER

Note: (216)

$

$

Not available

21

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

Usually ships in 4-12 days

0

22

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

23

Gravely 09257600

BRACKET, AIR CLEANER MOUNT

$87.99

$

In Stock, only 1 left!

0

24

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

Usually ships in 4-12 days

0

25

Gravely 09277251

SPACER, ENGINE MTG (DIESEL)

$

$

Not available

26

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06948200

CLAMP, HOSE, IDEAL 6202 SIZE 4

$

$

Not available

28

Gravely 21539000

FILTER, OIL

$

$

Not available

29

Gravely 21536900

ELEMENT, INNER SAFETY

$28.99

$

In Stock, only 3 left!

0

30

Gravely 21537000

ELEMENT, OUTER PRIMARY

$28.99

$

In Stock, Qty 20+

0

31

Gravely 07052700

PLUG, PIPE .125-27 SLHD YWZC

$3.49

$

Usually ships in 4-12 days

0

32

Gravely 05975900

@BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0
