992215 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 002999) Hydraulic Lift Cylinder Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

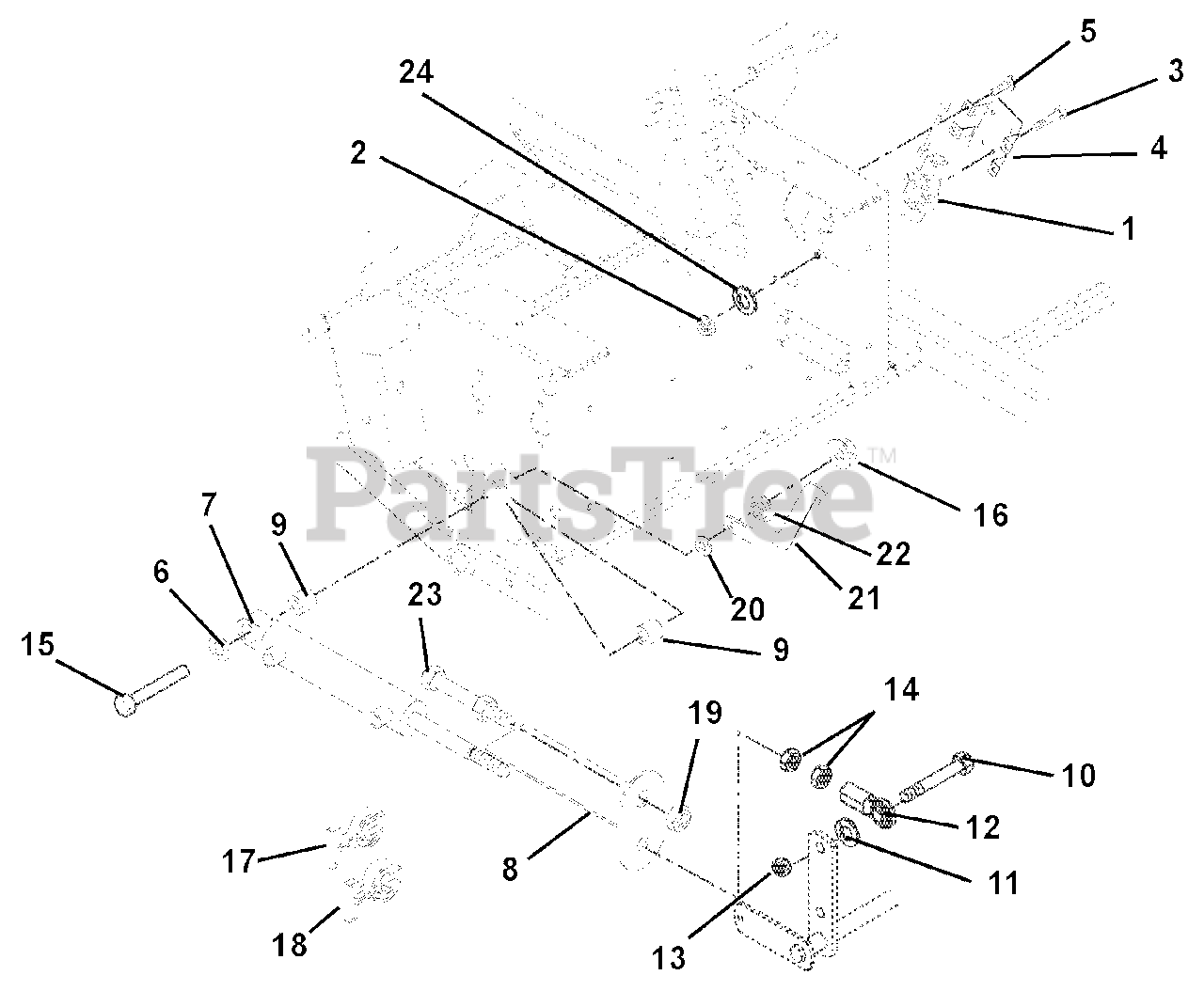

Hydraulic Lift Cylinder Parts Diagram

  • Title

1

Gravely 03791700

VALVE - HYDRAULIC LIFT

$193.99

$

Usually ships in 4-12 days

0

2

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 12

0

4

Gravely 03791851

BRACKET - VALVE MOUNTING

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

6

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, Qty 18

0

7

Gravely 09264800

CYLINDER, LIFT
(Superseded to 04864700)

$516.99

$

Usually ships in 4-12 days

0

8

Gravely 00184551

CUT INDICATOR/GUARD - BLACK

$75.99

$

Usually ships in 4-12 days

0

9

Gravely 09215200

BUSHING, .516X1.000X1.050 LG

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06309500

@WSHR-LK .62X.156 REG YWZC

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 09221600

ROD END, 5/8 RH - FEMALE

$25.99

$

Usually ships in 4-12 days

0

13

Gravely 06535300

@NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

14

Gravely 06539600

NUT-JAM .625-18 YWZC

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 05960100

@BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$5.99

$

In Stock, only 1 left!

0

16

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 09212200

STOP, CYLINDER .34 THK

$9.99

$

In Stock, Qty 14

0

18

Gravely 09212300

STOP, CYLINDER .680 THK

$7.99

$

In Stock, Qty 16

0

19

Gravely 06539900

NUT-JAM .75-16 YWZC

$3.49

$

In Stock, only 2 left!

0

20

Gravely 09252000

WASHER-WAVE .760X1.120X.080

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 09293200

LATCH, FOOTBOARD HOOK

$

$

Not available

22

Gravely 05532100

BSHG-FLG .515X.750X.285X1.120

$

$

Not available

23

Gravely 09260800

ASM,FSTNR 30" ROTARY MWR

$

$

Not available

24

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0
