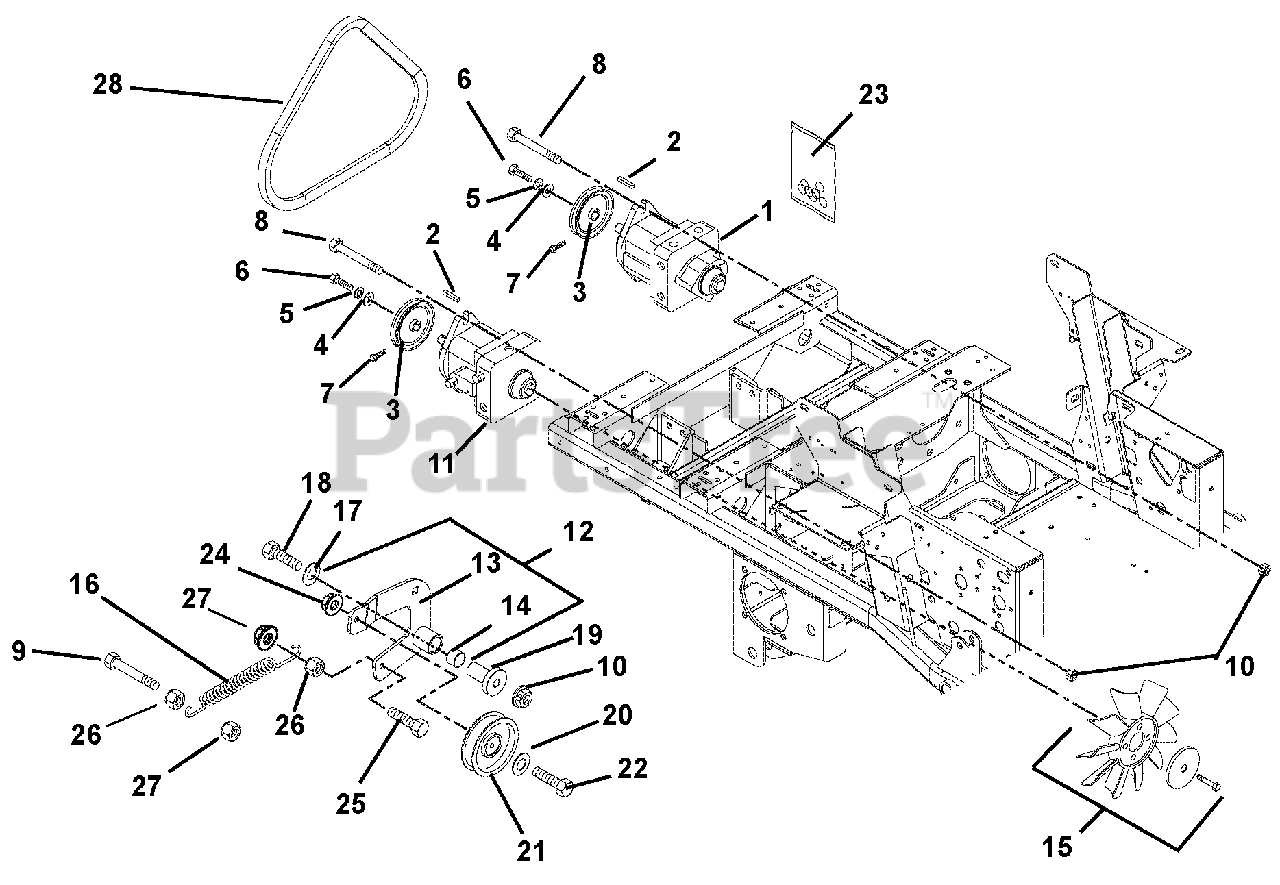

992215 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 002999) Hydrostatic Pumps, Idlers, & Belts Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

Hydrostatic Pumps, Idlers, & Belts Parts Diagram

  • Title

1

Gravely 00583100

PUMP - HYDRAULIC RTN W/AUX

Note: (RTN) with Auxiliary

$1202.99

$

Usually ships in 4-12 days

0

2

Gravely 06611300

KEY, SQ 5 X 5 X 30MM PLAIN

$2.49

$

In Stock, Qty 8

0

3

Gravely 07300037

SHEAVE - POLY-V .671 X 4.125

$77.99

$

In Stock, only 2 left!

0

4

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, only 2 left!

0

5

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

6

Gravely 05900017

BLT-HEX M6X1.0X12 YZ EP30

$5.99

$

In Stock, only 1 left!

0

7

Gravely 05900127

SCR-SKH .25-20X.50 YZ EP80

$3.99

$

In Stock, only 2 left!

0

8

Gravely 05962000

@BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

9

Gravely 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, only 4 left!

0

10

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00583300

PUMP-HYD RTN THRU SHAFT F/FAN

Note: (RTN)

$1034.99

$

In Stock, only 1 left!

0

12

Gravely 09264300

ASSEMBLY, IDLER ARM

Note: (Includes 13 & 14)

$168.99

$

Usually ships in 4-12 days

0

13

Gravely 09264251

WMT, IDLER ARM

$84.99

$

Usually ships in 4-12 days

0

14

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

15

Gravely 09420500

FAN KIT, HYDROGEAR 70618

$25.99

$

Usually ships in 4-12 days

0

16

Gravely 08321200

SG-TENS .135X.69X5.75 WLD 150

$21.99

$

Usually ships in 4-12 days

0

17

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

18

Gravely 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

19

Gravely 07000031

BEARING, PEDESTAL

$79.99

$

In Stock, Qty 7

0

20

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

22

Gravely 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, Qty 9

0

23

Gravely 59203700

KIT, PUMP SEAL (BDP-21L)

Note: (One kit required for each pump)

$90.99

$

Usually ships in 4-12 days

0

24

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

26

Gravely 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 14

0

27

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07242800

POLY V-BELT, K-5 RIBS

$34.99

$

In Stock, only 3 left!

0
