992217 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 - 002999) Deck, Discharge Chute, Anti-Scalp Rollers & Belt Covers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki

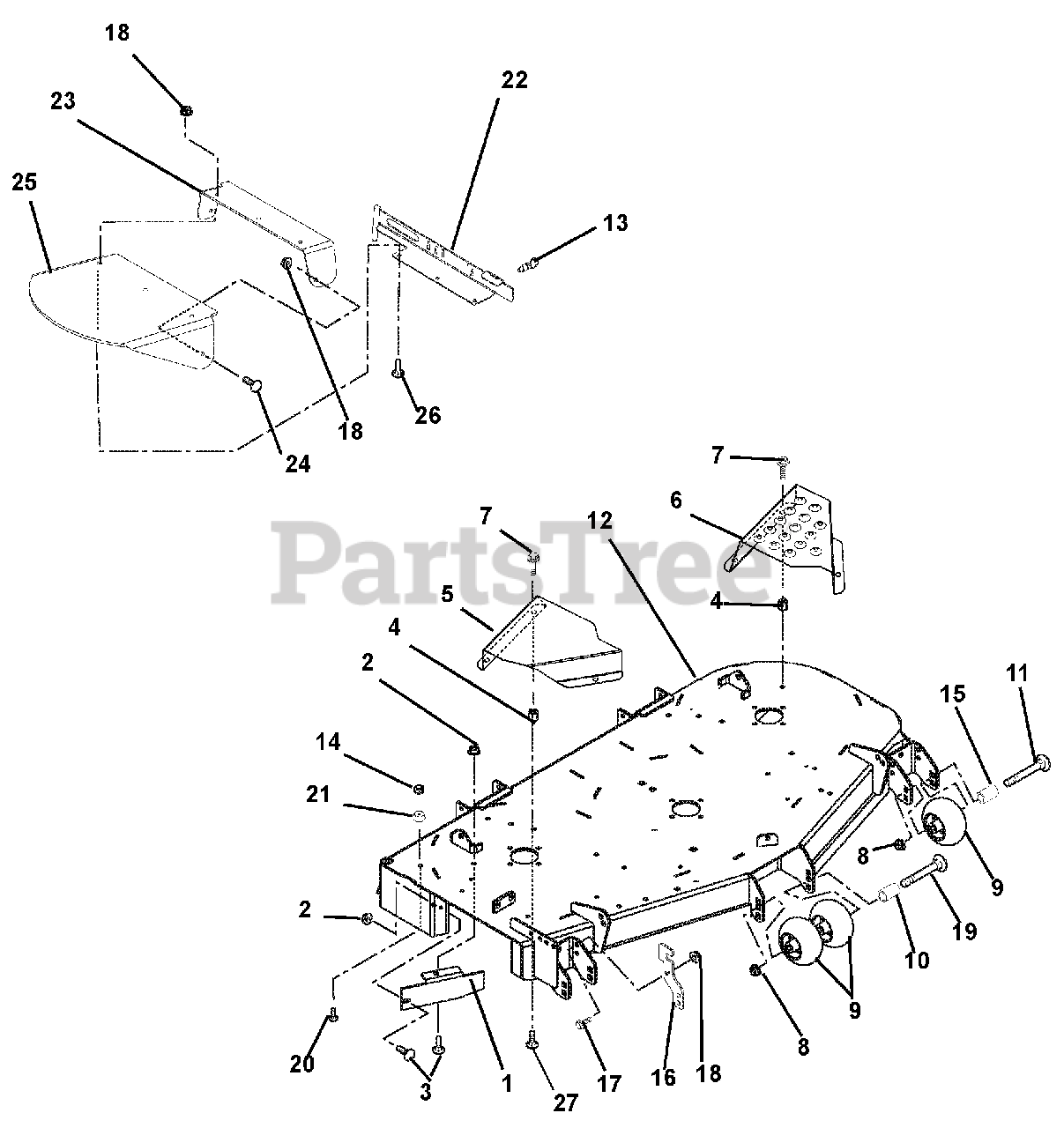

Deck, Discharge Chute, Anti-Scalp Rollers & Belt Covers Parts Diagram

  • Title

1

Gravely 00440853

52-in. Discharge Baffle (992212)

Note: (992212)

$38.99

$

Usually ships in 4-12 days

0

Gravely 00374153

60-in. Discharge Baffle (992210, 217)

Note: (992210, 217)

$29.99

$

In Stock, only 4 left!

0

Gravely 00442453

72-in. Discharge Baffle (992213)

Note: (992213)

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 07001525

Nut, Heavy Hex .38-16
(Superseded to 06500823)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 03982151

52-in. Right Hand Spindle Guard (992212)

Note: (992212)

$51.99

$

Usually ships in 4-12 days

0

Gravely 03982251

60/66-in. Right Hand Spindle Guard (992210, 217)

Note: (992210, 217)

$62.99

$

Usually ships in 4-12 days

0

Gravely 04051451

72-in. Right Hand Spindle Guard (992213)

Note: (992213)

$79.99

$

Usually ships in 4-12 days

0

6

Gravely 03977151

52-in. Left Hand Spindle Guard (992212)

Note: (992212)

$92.99

$

In Stock, only 1 left!

0

Gravely 03977251

60-in. Left Hand Spindle Guard (992210, 217)

Note: (992210, 217)

$73.99

$

In Stock, only 1 left!

0

Gravely 04051351

72-in. Left Hand Spindle Guard (992213)
(Superseded to 59228800)

Note: (992213)

$120.99

$

Usually ships in 4-12 days

0

7

Gravely 06534900

Nut, Spin Lock-Flange .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 03905900

Anti-Scalp Wheel

$13.99

$

In Stock, Qty 20+

0

10

Gravely 00473800

Spacer

$22.99

$

In Stock, Qty 20+

0

11

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00
(Superseded to 06200505)

$

$

Not available

12

Gravely 03996553

52-in. Pro-Master 200 Side Discharge Deck Weldment (992212)
(Superseded to 59224300)

Note: (992212)

$1345.99

$

Usually ships in 4-12 days

0

Gravely 03996653

60-in. Pro-Master 200 Side Discharge Deck Weldment (992210, 217)
(Superseded to 59224200)

Note: (992210, 217)

$1345.99

$

Usually ships in 4-12 days

0

Gravely 03996853

72-in. Pro-Master 200 Side Discharge Deck Weldment (992213)

Note: (992213)

$1315.99

$

Usually ships in 4-12 days

0

13

Gravely 07000037

Pin, Plunger Pull .50-13 Thread x .310 Diameter

$11.99

$

In Stock, Qty 8

0

14

Gravely 06529800

Nut, Locking, Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 00473700

Spacer, .510 x .625 x 3.35

$19.99

$

In Stock, Qty 20+

0

16

Gravely 00474753

Chute, Storage Bracket

$29.99

$

Usually ships in 4-12 days

0

17

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$7.99

$

In Stock, Qty 20+

0

20

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

21

Gravely 07500009

Bumper, Recessed 1.50 x .63 , .31 Thru Hole

$6.49

$

In Stock, only 2 left!

0

22

Gravely 00472553

Weldment, 52-inch and 60-inch Discharge Chute Mounting (992210, 212, 217)
(Superseded to 04727953)

Note: (992210, 212, 217)

$131.99

$

In Stock, only 1 left!

0

Gravely 00472653

Weldment, 66/72-inch Discharge Chute Mounting (992213)
(Superseded to 00980653)

Note: (992213)

$168.99

$

In Stock, only 1 left!

0

23

Gravely 00472353

Rubber Discharge Chute Support

$127.99

$

Usually ships in 4-12 days

0

24

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

25

Gravely 00377800

Chute, Rubber Discharge

$93.99

$

In Stock, only 2 left!

0

26

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

27

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, Qty 8

0
