992217 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki (SN: 030000 - 040999) Deck, Discharge Chute, Anti-Scalp Rollers, And Belt Covers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki

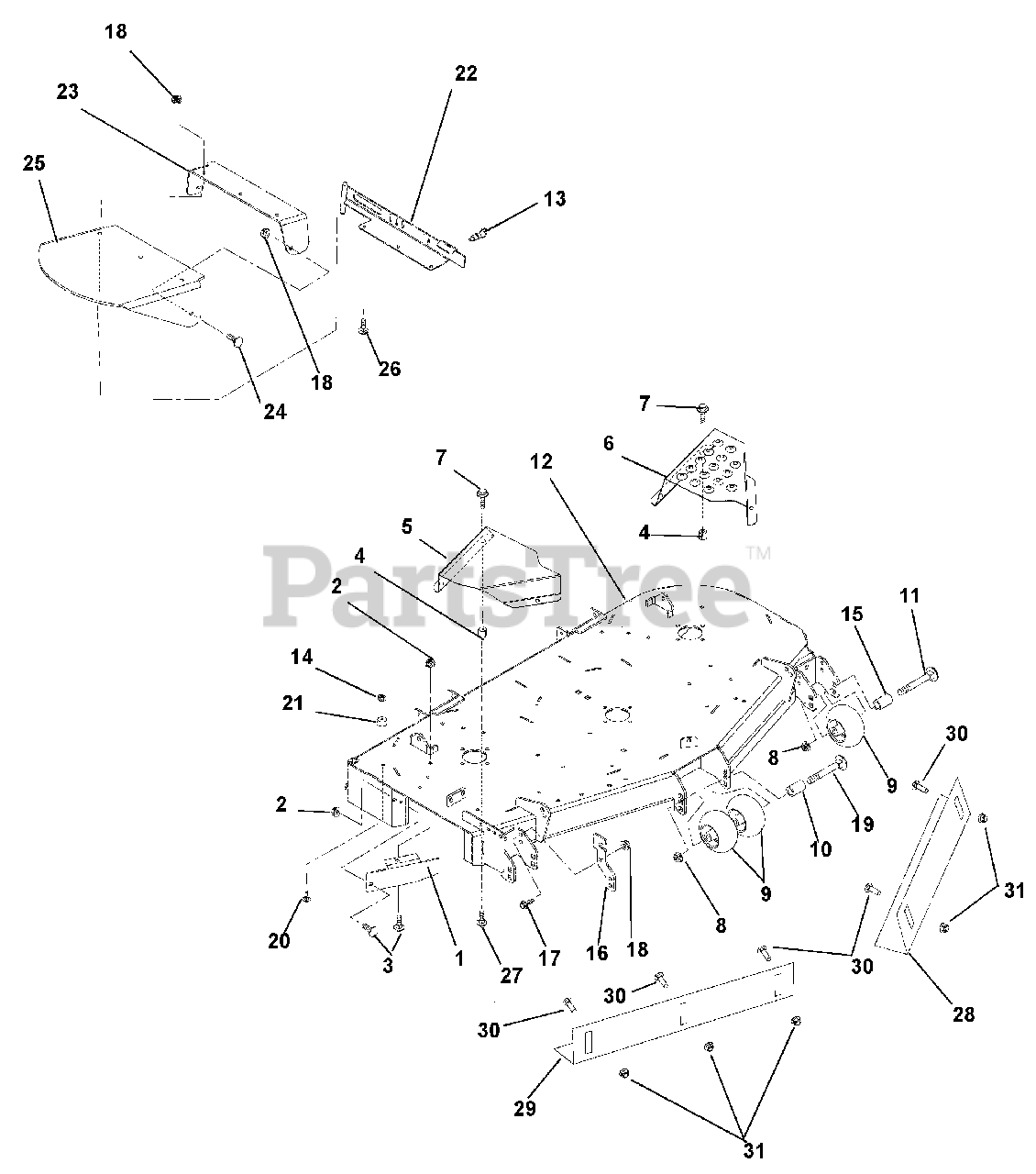

Deck, Discharge Chute, Anti-Scalp Rollers, And Belt Covers Parts Diagram

  • Title

1

Gravely 00374153

60-in. Discharge Baffle

$29.99

$

In Stock, only 4 left!

0

2

Gravely 06545400

Nut, Nyloc Flange .31-18
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 07001525

Nut, Heavy Hex .38-16
(Superseded to 06500823)

$1.99

$

In Stock, Qty 16

0

5

Gravely 03982251

60" Spindle Guard Right Hand

$62.99

$

Usually ships in 4-12 days

0

6

Gravely 03977251

60" Spindle Guard Left Hand

$73.99

$

In Stock, only 1 left!

0

7

Gravely 06534900

Nut, Spin Lock Flange .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 11

0

8

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 03905900

Anti-Scalp Wheel

$13.99

$

In Stock, Qty 20+

0

10

Gravely 00473800

Spacer

$22.99

$

In Stock, Qty 20+

0

11

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00
(Superseded to 06200505)

$

$

Not available

12

Gravely 04546553

60" Pro-Master 200 Side Discharge Deck Weldment
(Superseded to 59226300)

$1015.99

$

Usually ships in 4-12 days

0

13

Gravely 07000037

Pin, Plunger Pull .50-13 Thread x .310 Diameter

$11.99

$

In Stock, Qty 7

0

14

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 00473700

Spacer, .510 x .625 x 3.35

$19.99

$

In Stock, Qty 20+

0

16

Gravely 00474753

Chute, Storage Bracket

$29.99

$

Usually ships in 4-12 days

0

17

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$7.99

$

In Stock, Qty 20+

0

20

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

21

Gravely 07500009

Bumper, Recessed 1.50 x .63 , .31 Thru Hole

$6.49

$

In Stock, only 2 left!

0

22

Gravely 00472553

Weldment, 60" Discharge Chute Mounting
(Superseded to 04727953)

$131.99

$

In Stock, only 1 left!

0

23

Gravely 59218500

Discharge Chute Support with Decal

$104.99

$

Usually ships in 4-12 days

0

24

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

25

Gravely 04551600

Chute, Rubber Discharge

$70.99

$

In Stock, Qty 8

0

26

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

27

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, only 2 left!

0

28

Gravely 00952651

Baffle, 60" Vacuum Left Hand
(Superseded to 05252051)

$44.99

$

Usually ships in 4-12 days

0

29

Gravely 00952551

Baffle, 60" Vacuum Right Hand
(Superseded to 05251951)

$52.99

$

In Stock, only 4 left!

0

30

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 06530200

Nut, Lock Nyloc .31-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0
