992218 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 019999) Belts, Pulleys & Idlers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

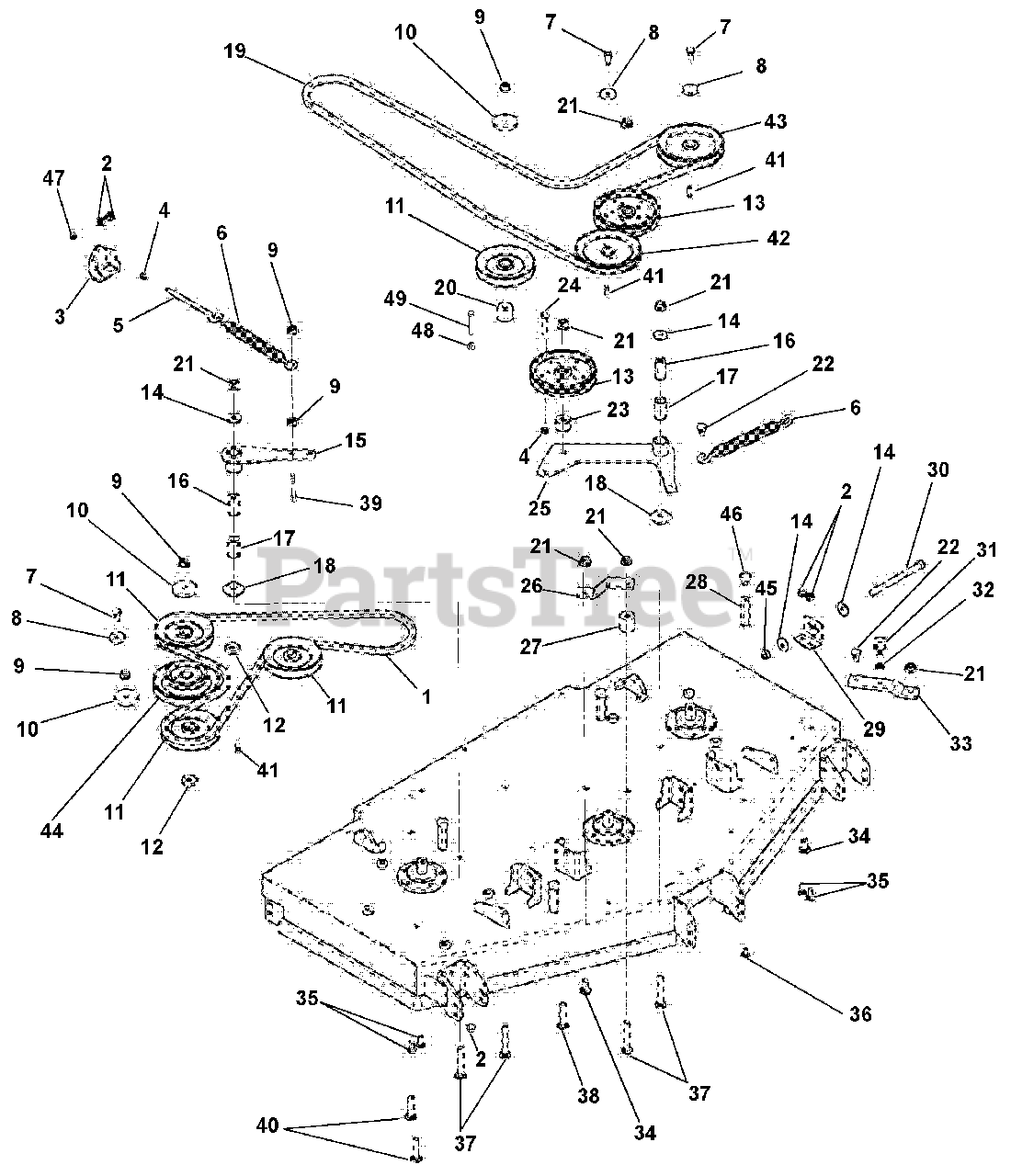

Belts, Pulleys & Idlers Parts Diagram

  • Title

1

Gravely 07200613

HEX BELT, BB

$93.99

$

Usually ships in 4-12 days

0

2

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 04365153

BRAKET, SPRING MOUNT

$17.99

$

Usually ships in 4-12 days

0

4

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07001604

BOLT, .38-16X6.00 .62 DIA EYE

$7.49

$

In Stock, Qty 20+

0

6

Gravely 08300505

SPRING, EXTENSION

$27.99

$

In Stock, Qty 20+

0

7

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 00450100

CAP, IDLER BEARING SEALING

$15.99

$

In Stock, Qty 10

0

11

Gravely 07300527

SHV, .50"ID X 6.00"OD V-IDLER

$54.99

$

In Stock, Qty 20+

0

12

Gravely 04355200

SPACER, .516 X 1.5 X .2894

$45.99

$

Usually ships in 4-12 days

0

13

Gravely 07316700

IDLER-FLAT-PLY 6.75X.510

$65.99

$

In Stock, only 3 left!

0

14

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 04352151

ARM, IDLER PIVOT (RD)

$58.99

$

Usually ships in 4-12 days

0

16

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

17

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

18

Gravely 06400829

WSHR-FLT .640X1.75X.250

$4.99

$

In Stock, Qty 20+

0

19

Gravely 07200611

V-BELT, HB-WRAPPED

$104.99

$

Usually ships in 4-12 days

0

20

Gravely 04297400

SPACER, .516 X 1.5 X 1.345

$45.99

$

Usually ships in 4-12 days

0

21

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 17

0

23

Gravely 04352600

SPACER,.516 X 1.5 X .924

$45.99

$

Usually ships in 4-12 days

0

24

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

25

Gravely 04348151

WLDMT, IDLER ARM (60"RD)

$91.99

$

Usually ships in 4-12 days

0

26

Gravely 04385453

BRKT, IDLER MOUNT

$40.99

$

Usually ships in 4-12 days

0

27

Gravely 04358000

SPACER,.516 X 1.5 X 1.517

$

$

Not available

28

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$29.99

$

In Stock, Qty 17

0

29

Gravely 04367453

BRKT, SPRG MOUNT (LH)

$33.99

$

Usually ships in 4-12 days

0

30

Gravely 05901505

BOLT, .5-13X7.00 GR5 HHFTH CLZ

$

$

Not available

31

Gravely 04367200

TRUNNION,SPRG ADJUST .50-13

$104.99

$

Usually ships in 4-12 days

0

32

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 20+

0

33

Gravely 04367553

ARM, SPRING TENSIONER

$104.99

$

Usually ships in 4-12 days

0

34

Gravely 06224700

BLT-RDHDSQNK .50-13X1.25 G5YZ
(Superseded to 06200325)

$6.99

$

Usually ships in 4-12 days

0

35

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

36

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$4.99

$

In Stock, Qty 20+

0

37

Gravely 06225000

BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$6.49

$

In Stock, Qty 20+

0

38

Gravely 06225700

BLT-RDHDSQNK .50-13X2.75 G5YZ
(Superseded to 06200327)

$10.99

$

Usually ships in 4-12 days

0

39

Gravely 05966600

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 1 left!

0

40

Gravely 06225500

BLT-RDHDSQNK .50-13X2.50 G5YZ

$6.49

$

Usually ships in 4-12 days

0

41

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

42

Gravely 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

$93.99

$

In Stock, Qty 20+

0

43

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

$84.99

$

In Stock, Qty 20+

0

44

Gravely 07329167

PULLEY, DBL-1"IDX6.75"&4.25"OD

$87.99

$

In Stock, Qty 19

0

45

Gravely 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.99

$

In Stock, Qty 20+

0

46

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

47

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

49

Gravely 05960900

BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$4.99

$

In Stock, Qty 20+

0
