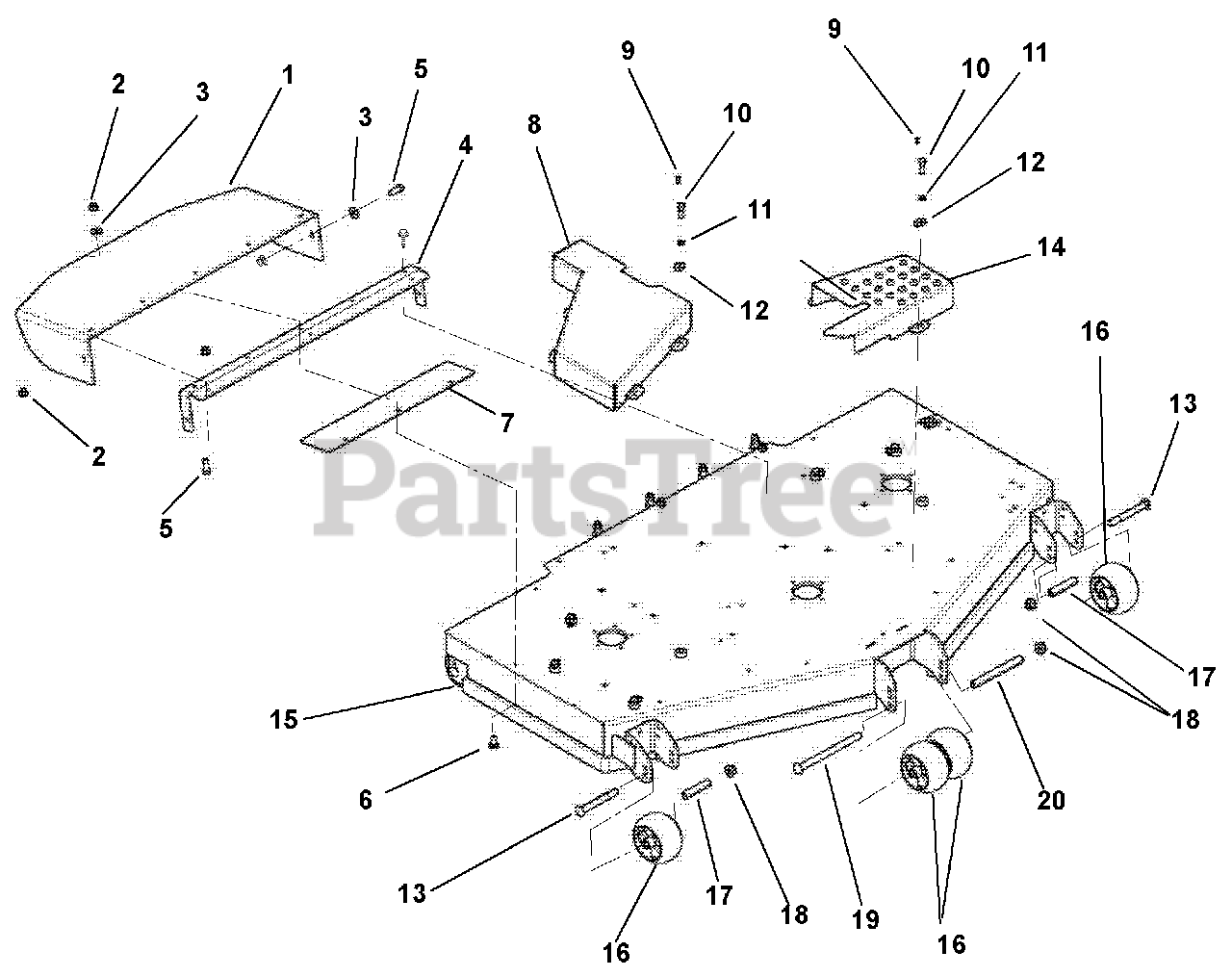

992218 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 019999) Deck, Discharge Chute, Anti-Scalp Rollers & Belt Covers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

Deck, Discharge Chute, Anti-Scalp Rollers & Belt Covers Parts Diagram

  • Title

1

Gravely 04309300

CHUTE, RUBBER DISCHARGE (RD)

$63.99

$

Usually ships in 4-12 days

0

2

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 04309253

BRKT, MOUNT DISCHARGE CHUTE

$64.99

$

Usually ships in 4-12 days

0

5

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 04319051

PLATE, DISCHARGE CHUTE SUPPORT

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 04353351

GUARD, 60" RH SPINDLE (RD)

$115.99

$

Usually ships in 4-12 days

0

9

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, Qty 5

0

10

Gravely 07001625

BLT,HEX.38-16X1.25 GR5 CAPTIVE

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 06308700

WSHR-LK-EXT.391X.628X.036YWZC

$2.49

$

In Stock, only 2 left!

0

12

Gravely 04183000

KEEPER, BOLT

$7.49

$

Usually ships in 4-12 days

0

13

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

14

Gravely 04357551

GUARD, 60" LH SPINDLE (RD)

$73.99

$

Usually ships in 4-12 days

0

15

Gravely 04147453

WMT-60" REAR DISCHARGE DECK

$

$

Not available

16

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$13.99

$

In Stock, Qty 20+

0

17

Gravely 00473700

SPACER, .510X.625X3.35

$19.99

$

In Stock, Qty 20+

0

18

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$7.99

$

In Stock, Qty 20+

0

20

Gravely 00473800

SPACER, .510X.625X6.50

$22.99

$

In Stock, Qty 20+

0
