992218 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 019999) Fuel Tanks & Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

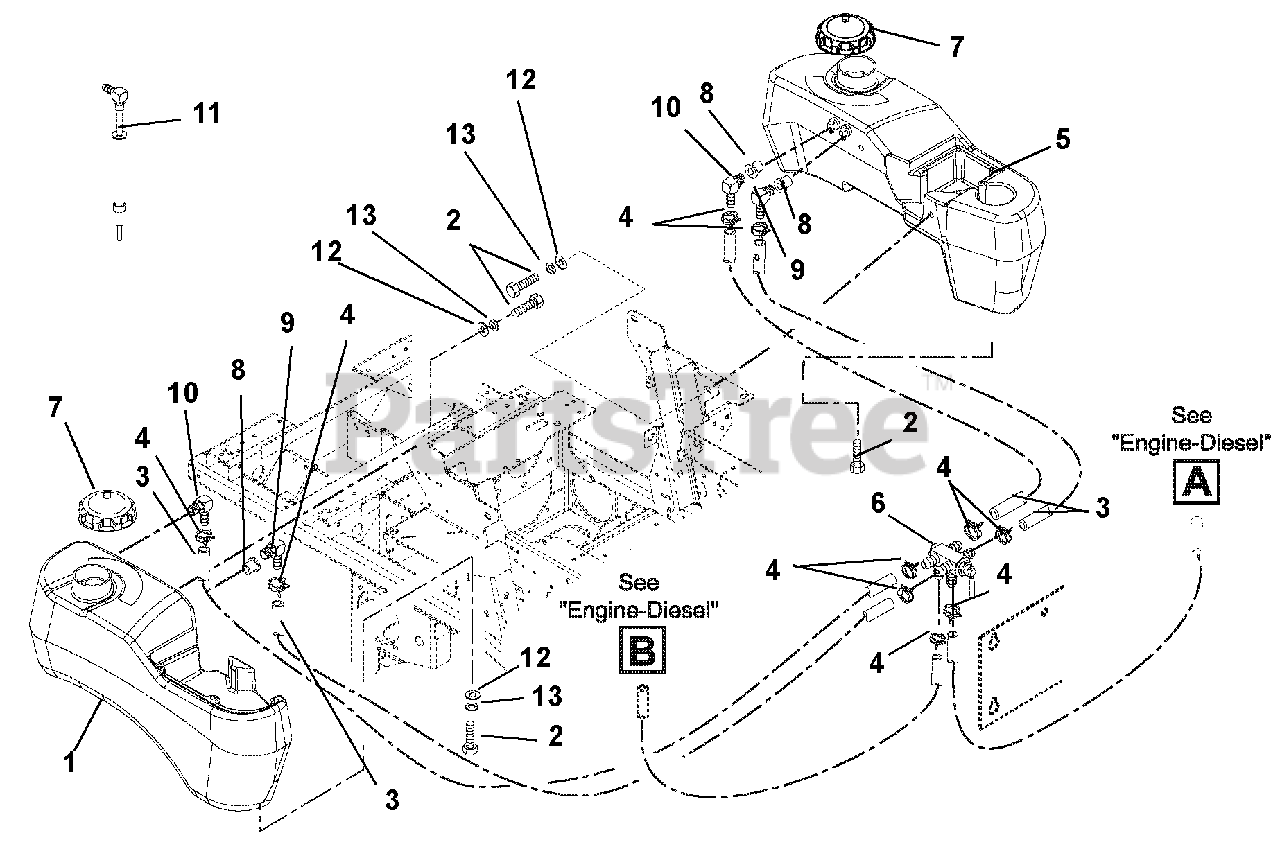

Fuel Tanks & Hoses Parts Diagram

  • Title

1

Gravely 04004800

TANK, RH FUEL

$

$

Not available

2

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 00922600

HOSE,5/16 ID

$

$

Not available

4

Gravely 06947900

CLAMP, HOSE WIRE .520/.550

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 04007000

TANK, LH FUEL

$

$

Not available

6

Gravely 09289600

VALVE, FUEL

$87.99

$

In Stock, only 2 left!

0

7

Gravely 09269100

CAP, FUEL

$35.99

$

Usually ships in 4-12 days

0

8

Gravely 00387300

GROMMET, DAPCO VITON #12240

$9.99

$

In Stock, Qty 20+

0

9

Gravely 21539100

FITTING, TANK ELBOW .31 HOSE

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 21537200

FITTING, TANK (5/16 ELBOW)

$21.99

$

Usually ships in 4-12 days

0

11

Gravely 59207000

26" FUEL LINE KIT-DIESEL & EFI

Note: (Inside Tank)

$84.99

$

Usually ships in 4-12 days

0

12

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0
