992219 (PM 260H RD) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki FX (SN: 020000 - 029999) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki FX

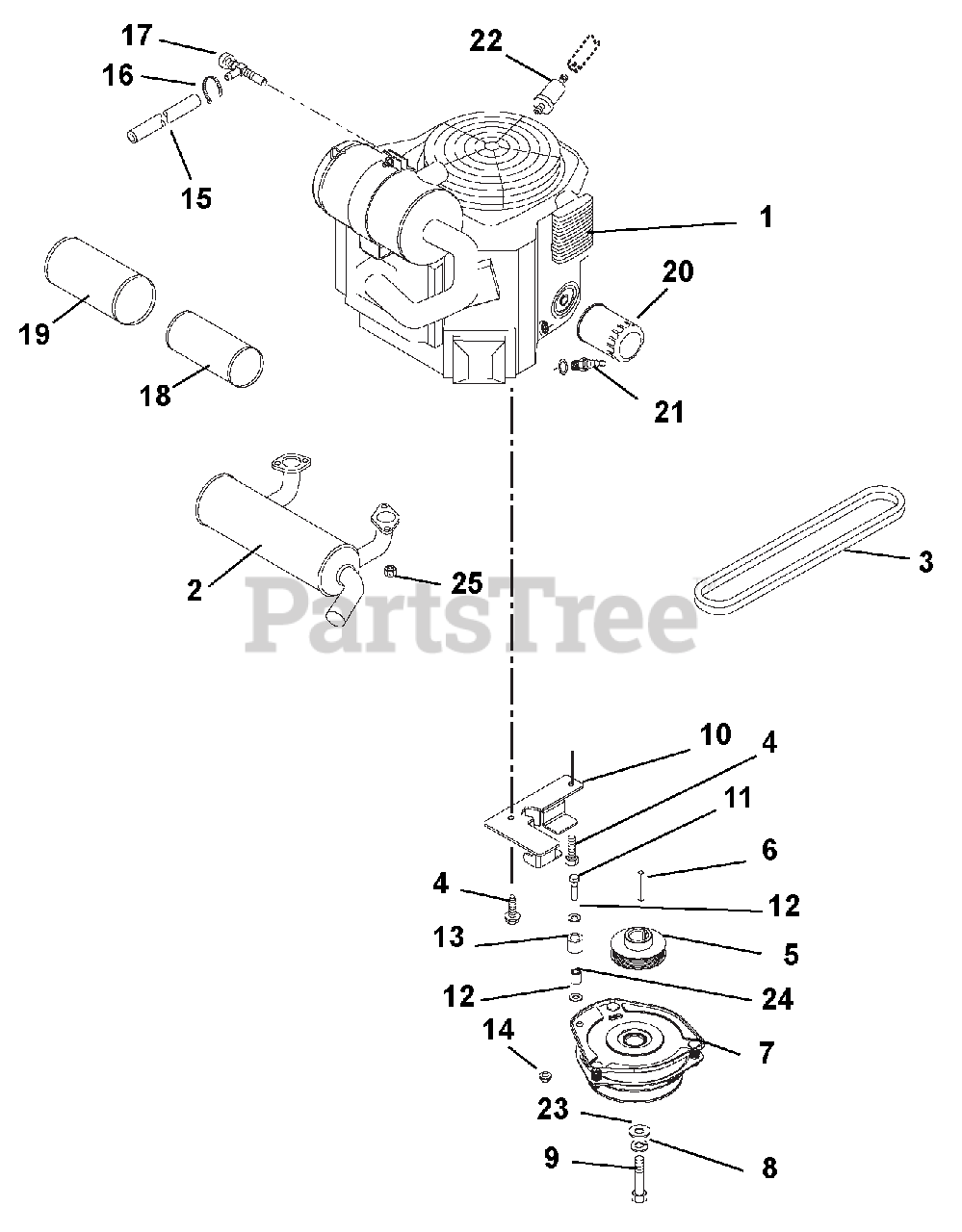

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200328

ENGINE, KAWASAKI FX850 (31HP)

Note: (FX850V)

$

$

Not available

2

Gravely 01057000

MUFFLER - 31HP KAWASAKI VERT.

$290.99

$

Usually ships in 4-12 days

0

3

Gravely 07242000

POLY V-BELT, K-5 RIBS

$56.99

$

In Stock, Qty 11

0

4

Gravely 05900125

BLT-HEX.38-16X1.25FTHG5 EP30YZ
(Superseded to 05901507)

$3.49

$

In Stock, Qty 7

0

5

Gravely 07300041

SHEAVE - POLY-V 1.127 X 3.275

$100.99

$

In Stock, only 4 left!

0

6

Gravely 06600003

KEY-SQ. .25X3.50X.25 SAE

$5.99

$

In Stock, only 2 left!

0

7

Gravely 00447100

CLUTCH, ELE-OGURA GT3.5-VP01R

$558.99

$

In Stock, only 1 left!

0

8

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$3.49

$

In Stock, Qty 19

0

9

Gravely 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

$6.99

$

In Stock, Qty 8

0

10

Gravely 00662251

WMT - CLUTCH ANCHOR - OGURA

$87.99

$

Usually ships in 4-12 days

0

11

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.49

$

In Stock, Qty 10

0

12

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.99

$

In Stock, Qty 8

0

14

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

16

Gravely 07517300

CABLE TIE LG 5-1/2

$1.99

$

Usually ships in 4-12 days

0

17

Gravely 00429000

DRAIN, 1/2" OIL

$43.99

$

In Stock, only 2 left!

0

18

Gravely 21548700

FILTER, INNER - KAW

$28.99

$

In Stock, Qty 20+

0

19

Gravely 21548800

FILTER, OUTER

$28.99

$

In Stock, Qty 20+

0

20

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

21

Gravely 21536100

PLUG, SPARK

$10.99

$

In Stock, Qty 20+

0

22

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

$17.99

$

Usually ships in 4-12 days

0

23

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$8.49

$

In Stock, Qty 20+

0

24

Gravely 08905500

BUSH.,S.407X.625X.813 ST

$14.99

$

In Stock, only 1 left!

0

25

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.99

$

In Stock, Qty 11

0
