992219 (PM 260H RD) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki FX (SN: 041000 - 049999) Wheel Motors, Tires, Brakes, & Front Forks Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki FX

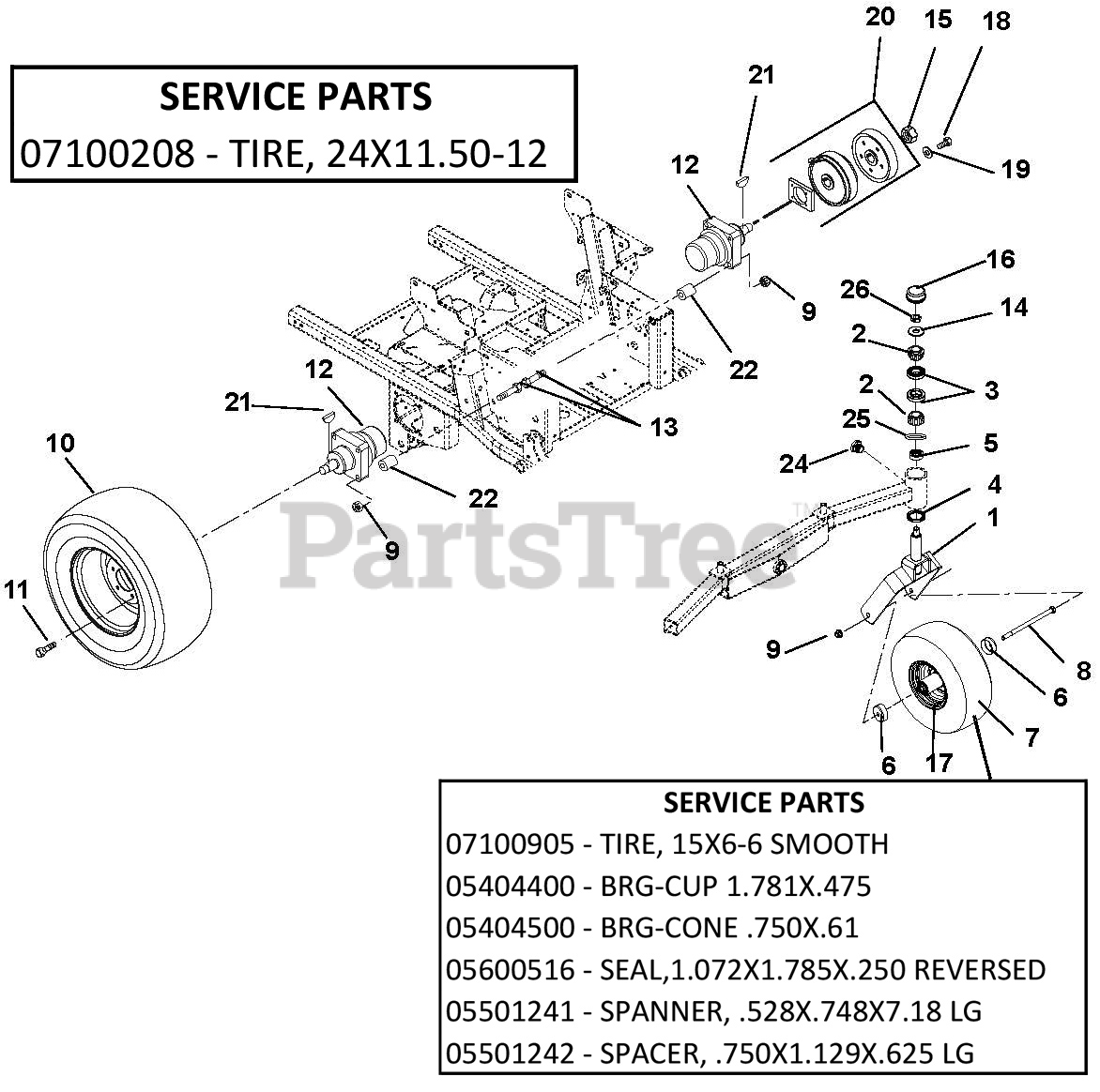

Wheel Motors, Tires, Brakes, & Front Forks Parts Diagram

  • Title

1

Gravely 03758753

WMT - FRONT FORK

$168.99

$

Usually ships in 4-12 days

0

2

Gravely 05404700

BRG-CONE 1.25X.66

$22.99

$

In Stock, Qty 18

0

3

Gravely 05404600

BRG-CUP 2.328X.465

$15.99

$

In Stock, Qty 15

0

4

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$12.99

$

In Stock, Qty 19

0

5

Gravely 04718600

SPACER, FRONT CASTER FORK
(Superseded to 04861500)

$14.99

$

In Stock, Qty 5

0

6

Gravely 09357800

SHIELD, WHEEL BEARING

$12.99

$

In Stock, Qty 20+

0

7

Gravely 07101026

TIRE/WHEEL 15X6.00-6 SMOOTH
(Superseded to 07101109)

$128.99

$

In Stock, Qty 10

0

7

Gravely 07100905

TIRE, 15X6-6 SMOOTH

Note: SERVICE PART

$76.99

$

Usually ships in 4-12 days

0

7

Gravely 05404400

BRG-CUP 1.781X.475

Note: SERVICE PART

$11.99

$

In Stock, Qty 17

0

7

Gravely 05404500

BRG-CONE .750X.61

Note: SERVICE PART

$29.99

$

In Stock, Qty 14

0

7

Gravely 05600516

SEAL,1.072X1.785X.250 REVERSED

Note: SERVICE PART

$25.99

$

In Stock, Qty 20+

0

7

Gravely 05501241

SPANNER, .528X.748X7.18 LG

Note: SERVICE PART

$33.99

$

In Stock, Qty 14

0

7

Gravely 05501242

SPACER, .750X1.129X.625 LG

Note: SERVICE PART

$6.99

$

In Stock, Qty 20+

0

8

Gravely 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

9

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07100207

TIRE/WHEEL ASSY, 24X11.50-12
(Superseded to 07101040)

$300.99

$

Usually ships in 4-12 days

0

10

Gravely 07100208

TIRE, 24X11.50-12
(Superseded to 07101041)

Note: SERVICE PART

$202.99

$

Usually ships in 4-12 days

0

11

Gravely 07000143

BLT-LUG .50-20X1.38 YWZC

$3.99

$

In Stock, Qty 20+

0

12

Gravely 09263100

MOTOR, PARKER WHEEL

$963.99

$

In Stock, only 1 left!

0

13

Gravely 07067300

BOLT, WHEEL MOTOR 1/2-13X5.00

$7.49

$

Usually ships in 4-12 days

0

14

Gravely 06439800

@WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, Qty 10

0

15

Gravely 06500721

NUT-JAM TOPLK .75-16 YWZC
(Superseded to 06500933)

$4.99

$

In Stock, Qty 11

0

16

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, Qty 6

0

17

Gravely 05404400

BRG-CUP 1.781X.475

Note: SERVICE PART

$11.99

$

In Stock, Qty 17

0

17

Gravely 05404500

BRG-CONE .750X.61

Note: SERVICE PART

$29.99

$

In Stock, Qty 14

0

18

Gravely 05981600

BLT-HEX .31-18X1.50 GR8YZ EP30

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 58904300

KIT, BRAKE SERVICE (1-SIDE)

$611.99

$

Usually ships in 4-12 days

0

21

Gravely 06607800

KEY-WDRF .31X1.00 SFT #B

$4.99

$

Usually ships in 4-12 days

0

22

Gravely 05531400

BSHG-SLV .513X.748X2.129

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 09263100

MOTOR, PARKER WHEEL

Note: NOT SHOWN

$963.99

$

In Stock, only 1 left!

0

24

Gravely 07001723

PLUG, .250-28 X .185 HEX HEAD

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 05600515

O-RING,

$2.99

$

In Stock, Qty 11

0

26

Gravely 06536900

NUT-JAM CTRLK .75-16 YWZC

$6.49

$

In Stock, Qty 9

0
