992219 (PM 260H RD) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki FX (SN: 050000 & Above) Hood And Bumper Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki FX

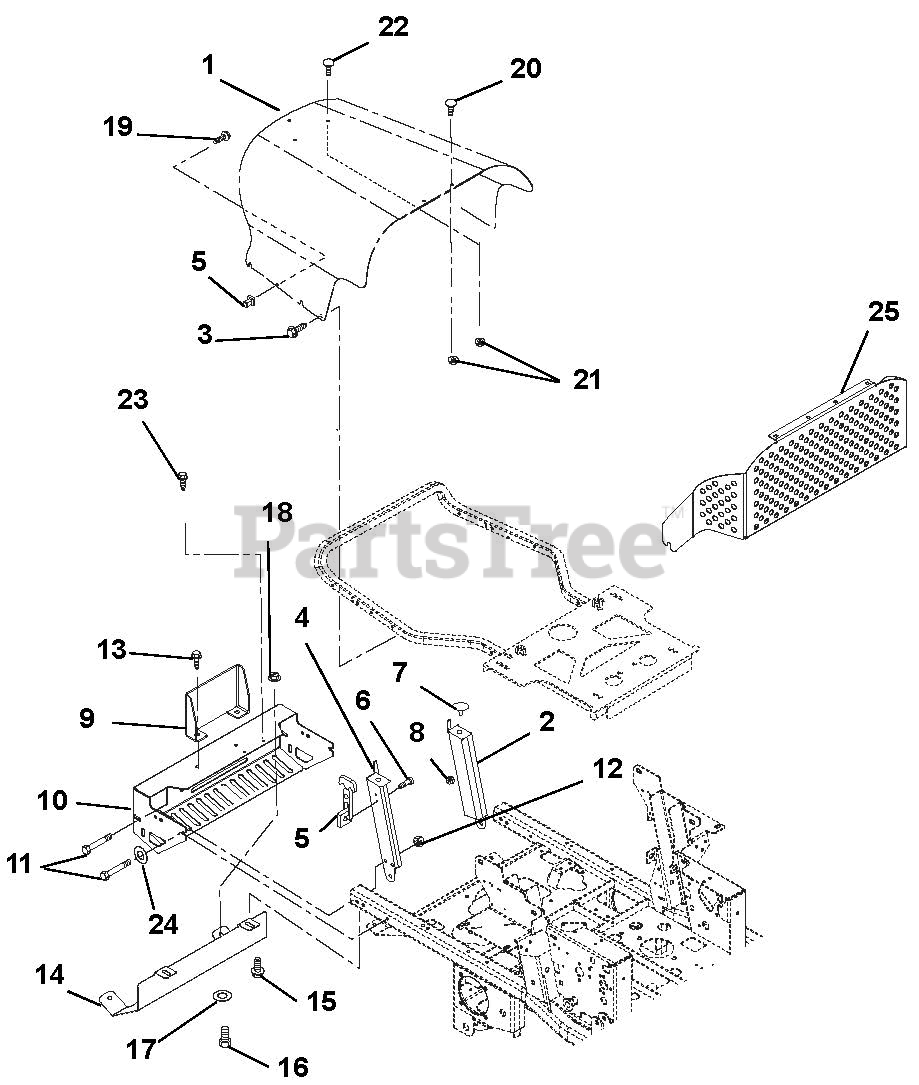

Hood And Bumper Parts Diagram

  • Title

1

Gravely 00678653

Hood

$109.99

$

Usually ships in 4-12 days

0

2

Gravely 09275153

Weldment, Hood Support, Left Hand

$136.99

$

Usually ships in 4-12 days

0

3

Gravely 07415400

Screw, Tapping Hex Washer Head .38-16 x .75
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09227953

Weldment, Hood Support Right Hand

$102.99

$

Usually ships in 4-12 days

0

5

Gravely 09079500

Latch, Rubber

$34.99

$

Usually ships in 4-12 days

0

6

Gravely 06116700

Screw, Machine Hex Washer Head 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 07533600

Button Bumper

$14.99

$

In Stock, only 4 left!

0

8

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 2 left!

0

9

Gravely 09229951

Guard, Muffler

$64.99

$

Usually ships in 4-12 days

0

10

Gravely 04433153

Bumper, Rear

$244.99

$

Usually ships in 4-12 days

0

11

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07415400

Screw, Tapping Hex Washer Head .38-16 x .75
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04266851

Heat Shield

$75.99

$

Usually ships in 4-12 days

0

15

Gravely 07412900

Screw, Tapping Hex Washer Head .38-16 x .50 Thread Rolling YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

16

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

17

Gravely 06435900

Washer, Flat Steel .438 x1.00 x .083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

18

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06118200

Screw, Machine Hex Washer Head 10-24 x 1.50

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

21

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

22

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 07412000

Screw, Tapping Hex Washer Head Thread .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 04267051

Plenum, Hood

$56.99

$

Usually ships in 4-12 days

0
