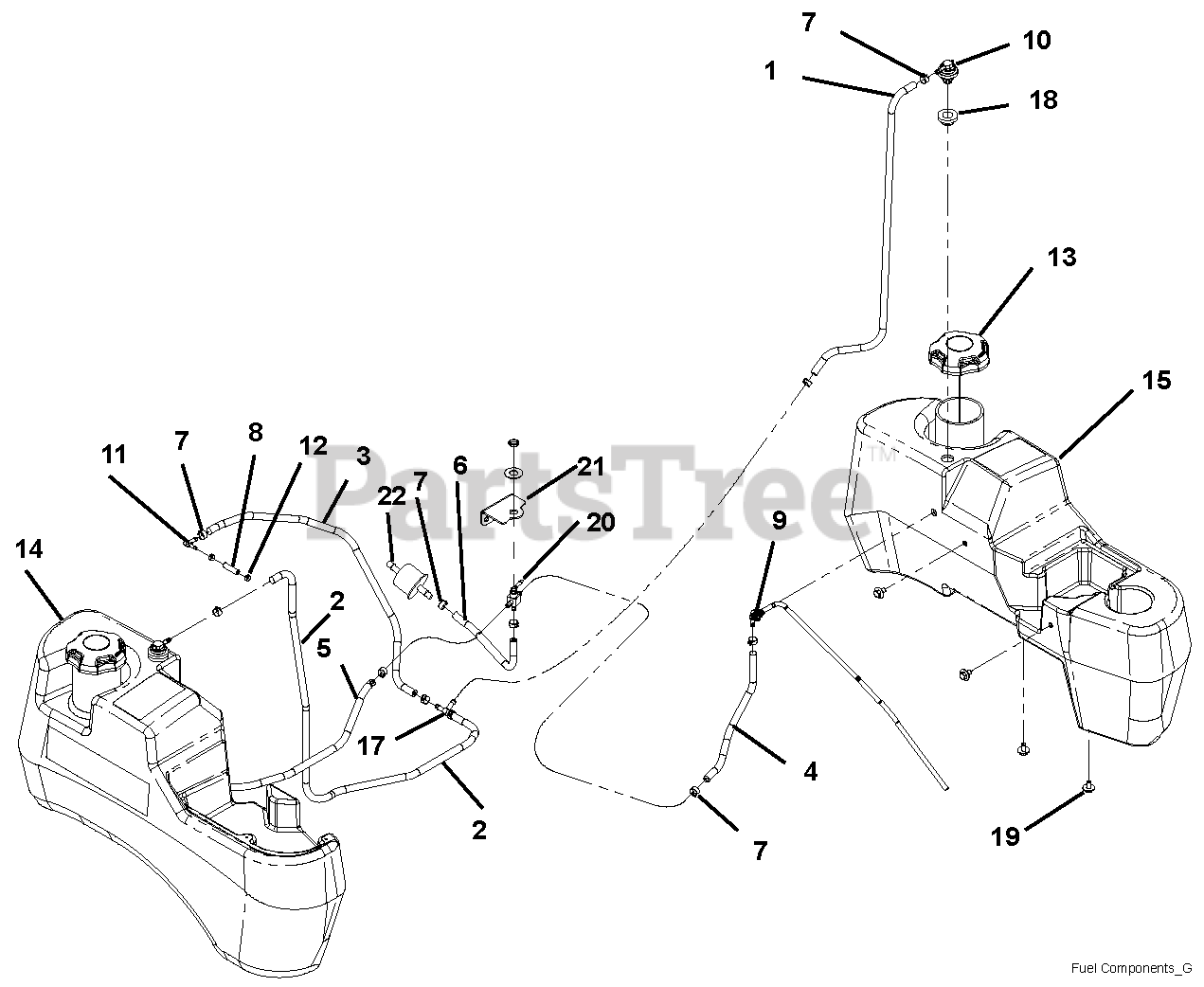

992220 (Pro-Ride 254) - Gravely Pro-Ride 54" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 & Above) Fuel Tanks, 2500-Up Parts Diagram

Pro-Ride 54" Zero-Turn Mower, 27hp Kawasaki

Fuel Tanks, 2500-Up Parts Diagram

  • Title

1

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$1.49

$

In Stock, Qty 20+

0

2

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$1.49

$

In Stock, Qty 20+

0

7

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 12

0

8

Gravely 03375900

Hose, .188 Low-Perm Bulk Gas

$1.49

$

In Stock, Qty 10

0

9

Gravely 03900200

Assembly, Large Tank Fuel Pick-Up
(Superseded to 04320800)

$35.99

$

In Stock, only 1 left!

0

10

Gravely 04068910

Valve, Combination
(Superseded to 05185600)

$18.99

$

In Stock, Qty 10

0

11

Gravely 04097000

Fitting, 3/16 x 1/4 90 Degree Vac

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 04097700

Clamp, Hose, Spring .188

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 04237300

Cap, Fuel, Nonvent Autoclick
(Superseded to 09190300)

$35.99

$

In Stock, Qty 8

0

14

Gravely 04245500

Tank, RH Large Gravely Fuel

$224.99

$

Usually ships in 4-12 days

0

15

Gravely 04245600

Tank, LH Large Gravely Fuel

$

$

Not available

16

NA

Label, EPA Non-Compliant Tank

$

$

Not available

17

Gravely 04307000

Tee, 1/4 HS Run x 1/4 HS Branch

$

$

Not available

18

Gravely 05600439

Grommet, Remote Vent Rev
(Superseded to 04082700)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 6

0

20

Gravely 09233600

Valve, Fuel (Nut and washer shown are included with valve)
(Superseded to 09164400)

Note: (Nut and washer shown are included with valve)

$46.99

$

In Stock, only 2 left!

0

21

Gravely 04309151

Bracket, Valve

$23.99

$

Usually ships in 4-12 days

0

22

Gravely 21538400

Fuel Filter
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0
