992220 (Pro-Ride 254) - Gravely Pro-Ride 54" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 & Above) Hydraulics Parts Diagram

Pro-Ride 54" Zero-Turn Mower, 27hp Kawasaki

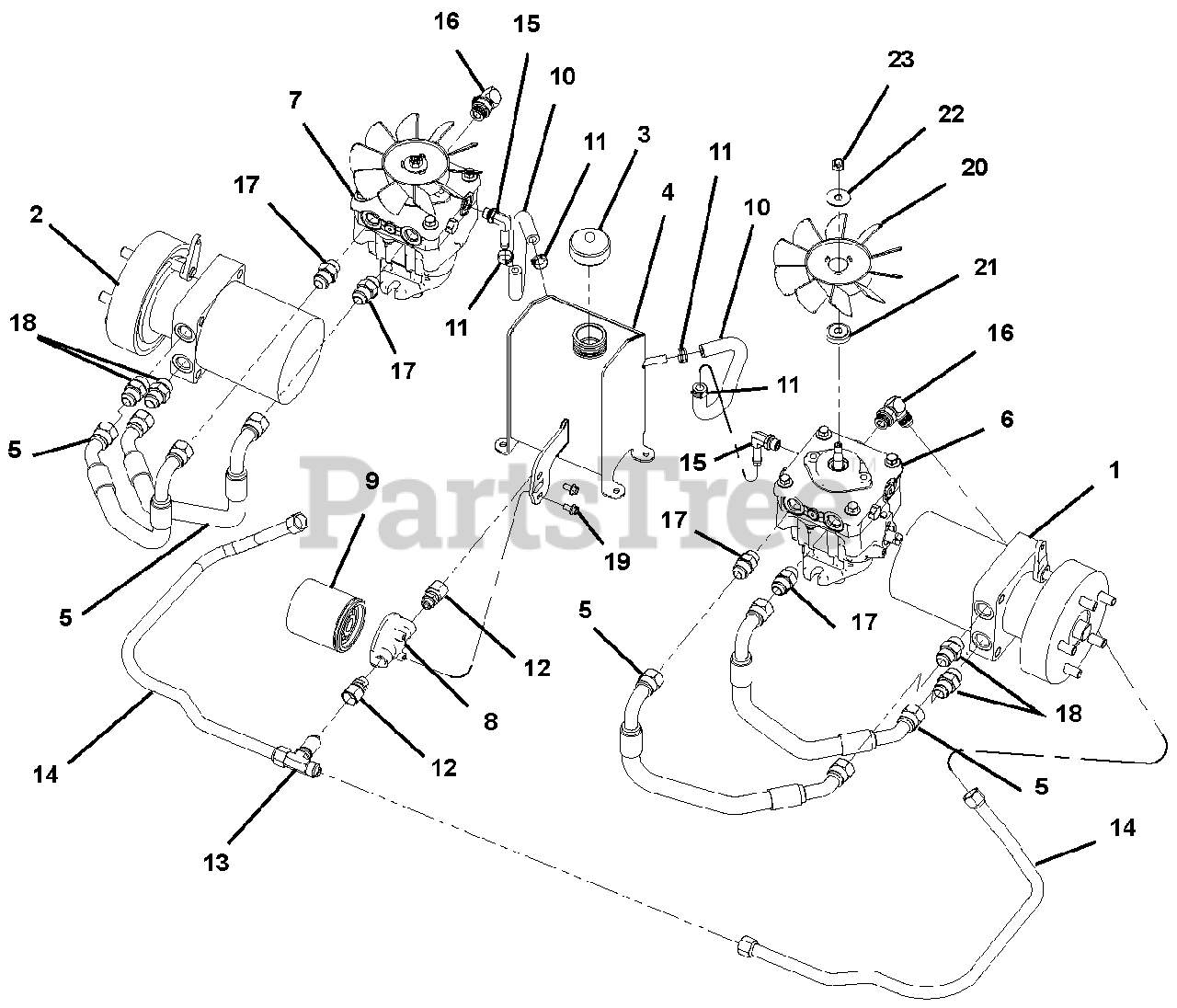

Hydraulics Parts Diagram

  • Title

1

Gravely 00180236

Motor, Left Hand Wheel

$1187.99

$

Usually ships in 4-12 days

0

2

Gravely 00180237

Motor, Right Hand Wheel

$

$

Not available

3

Gravely 00181210

Cap, Oil Reservoir Breather

$17.99

$

In Stock, only 1 left!

0

4

Gravely 03819851

Weldment, Oil Tank

$

$

Not available

5

Gravely 00180652

Hose, Hydraulic 5/8 x 18.75

$144.99

$

Usually ships in 4-12 days

0

6

Gravely 00180831

Pump, LH BDP16A

$1194.99

$

Usually ships in 4-12 days

0

7

Gravely 00180832

Pump, RH BDP16A

$983.99

$

Usually ships in 4-12 days

0

8

Gravely 00180908

Head, Filter

$25.99

$

Usually ships in 4-12 days

0

9

Gravely 00180909

Filter, 25 MICRON

$56.99

$

Usually ships in 4-12 days

0

10

Gravely 00180935

Hose, Hydraulic 3/8 x 12.5 Long

$

$

Not available

11

Gravely 00180947

Clamp, .690 OD Hose PINCH

$

$

Not available

12

Gravely 00181031

Fitting, #6 Male OR x #8 Female 37° JIC

$

$

Not available

13

Gravely 00181032

Fitting, Bulk Head #8 JIC Tee

$

$

Not available

14

Gravely 00181035

Hose, #8 TOC W/ # 8 SWL 37°JIC

$25.99

$

Usually ships in 4-12 days

0

15

Gravely D24028

Fitting, 9/16 MOR x 3/8 Hose 90º

$10.99

$

In Stock, Qty 6

0

16

Gravely D14196

Fitting, HYD Elbow 3/4 O-RING, 3/4JIC

$6.49

$

Usually ships in 4-12 days

0

17

Gravely 00313290

Adapter, 3/4-16MOR x 7/8-14JIC

$10.99

$

Usually ships in 4-12 days

0

18

Gravely 00313392

Adapter, 7/8-14MOR x 7/8-14JIC

$3.99

$

Usually ships in 4-12 days

0

19

Gravely AA963000

Bolt, 1/4-20 x .500 WSH 5

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 00180993

Fan, BDP16 Plastic Cooler

$21.99

$

In Stock, Qty 6

0

21

Gravely 00180994

Hub, BDP16 Fan

$22.99

$

In Stock, only 2 left!

0

22

Gravely 00180995

Washer, .375 x 1.25 x .072 Bellville

$10.99

$

Usually ships in 4-12 days

0

23

Gravely 00964066

Locknut, .38-24 Crown
(Superseded to 06512300)

$3.99

$

Usually ships in 4-12 days

0

NS

Gravely 00181371

Lever, S/O

$

$

Not available

NS

Gravely 00181066

Kit, Motor Seal - DF280 S/O

$

$

Not available
