992221 (Pro-Ride 260) - Gravely Pro-Ride 60" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Fuel Tanks, 101-2499 Parts Diagram

Pro-Ride 60" Zero-Turn Mower, 31hp Kawasaki

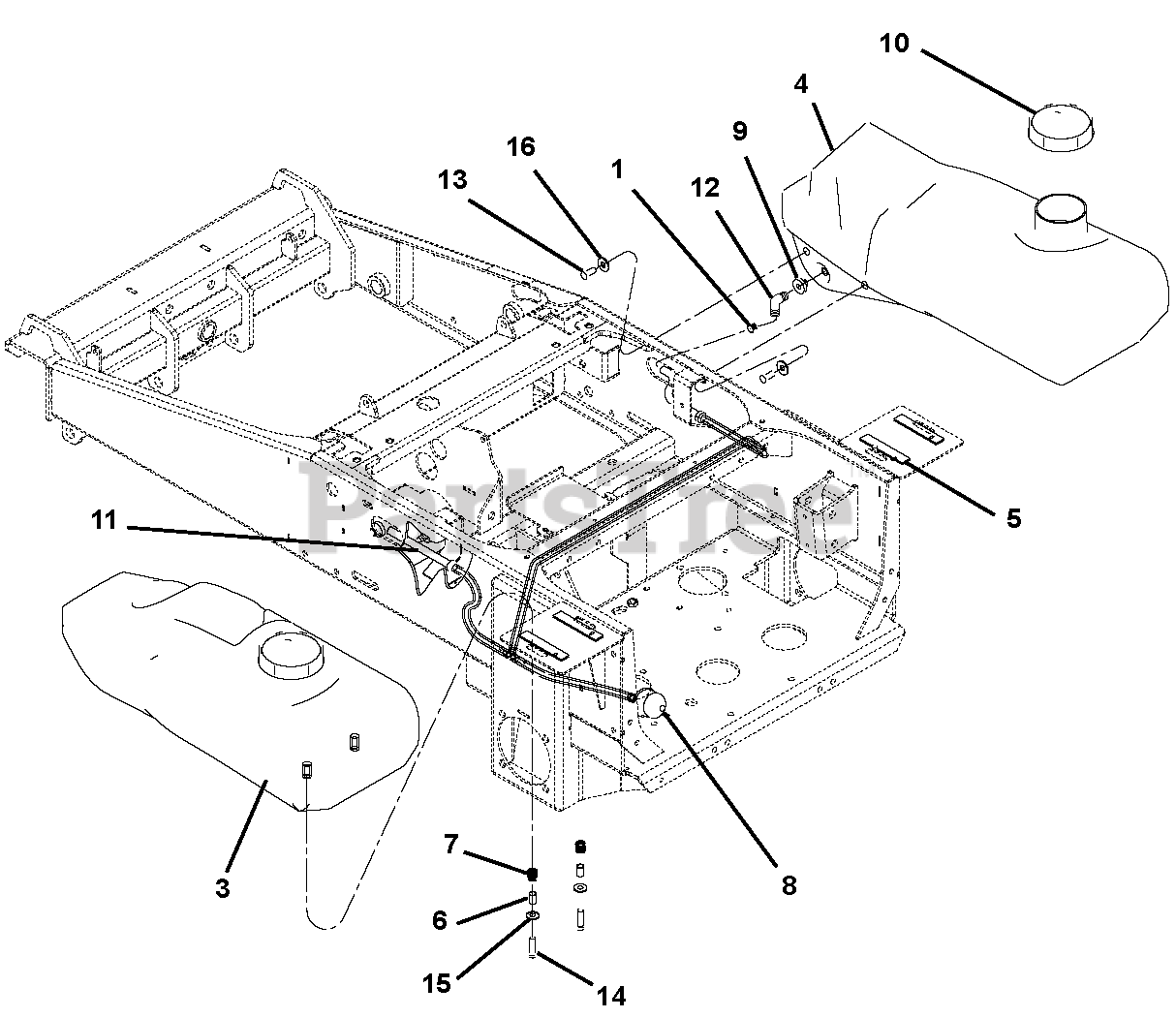

Fuel Tanks, 101-2499 Parts Diagram

  • Title

1

Gravely 00130924

Clamp, 1/2 Spring Hose
(Superseded to 03278800)

$1.49

$

In Stock, Qty 6

0

2

--------

Frame

$

$

Not available

3

Gravely 03793800

Tank, LH Midmount Blank w/Cap

$

$

Not available

4

Gravely 03793900

Tank, RH Midmount Blank w/Cap
(Superseded to 00191392)

$

$

Not available

5

Gravely 00180897

Foam, .125 x .750 x 4.00

$

$

Not available

6

Gravely 00181023

Spacer, Gas Tank Attachment
(Superseded to 03821551)

$29.99

$

Usually ships in 4-12 days

0

7

Gravely 00181027

Spring, Commpression .660 x .067 x .625

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 21538400

Fuel Filter
(Superseded to 21573800)

$12.99

$

In Stock, Qty 10

0

9

Gravely 00181208

Grommet, Tank Fitting Rubber
(Superseded to 00387300)

$7.99

$

In Stock, Qty 10

0

10

Gravely 00181251

Fuel Cap

$23.99

$

In Stock, only 3 left!

0

11

Gravely 00191282

Assembly, Fuel Line w/Checkvalves

$79.99

$

Usually ships in 4-12 days

0

12

Gravely 00191605

Fitting, 90 Degree

$10.99

$

In Stock, only 1 left!

0

13

Gravely 00960045

Bolt, 3/8-16 x .750 Hex
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

14

Gravely 05958000

Bolt, 3/8-16 x 1.25 Hex
(Superseded to 05901724)

$1.49

$

In Stock, Qty 8

0

15

Gravely 06435700

Washer, Flat, Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, only 3 left!

0

16

Gravely 00960702

Washer, .375 REG Flat
(Superseded to 06435900)

$1.49

$

Usually ships in 4-12 days

0
