992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Belts, Idlers and Blades Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

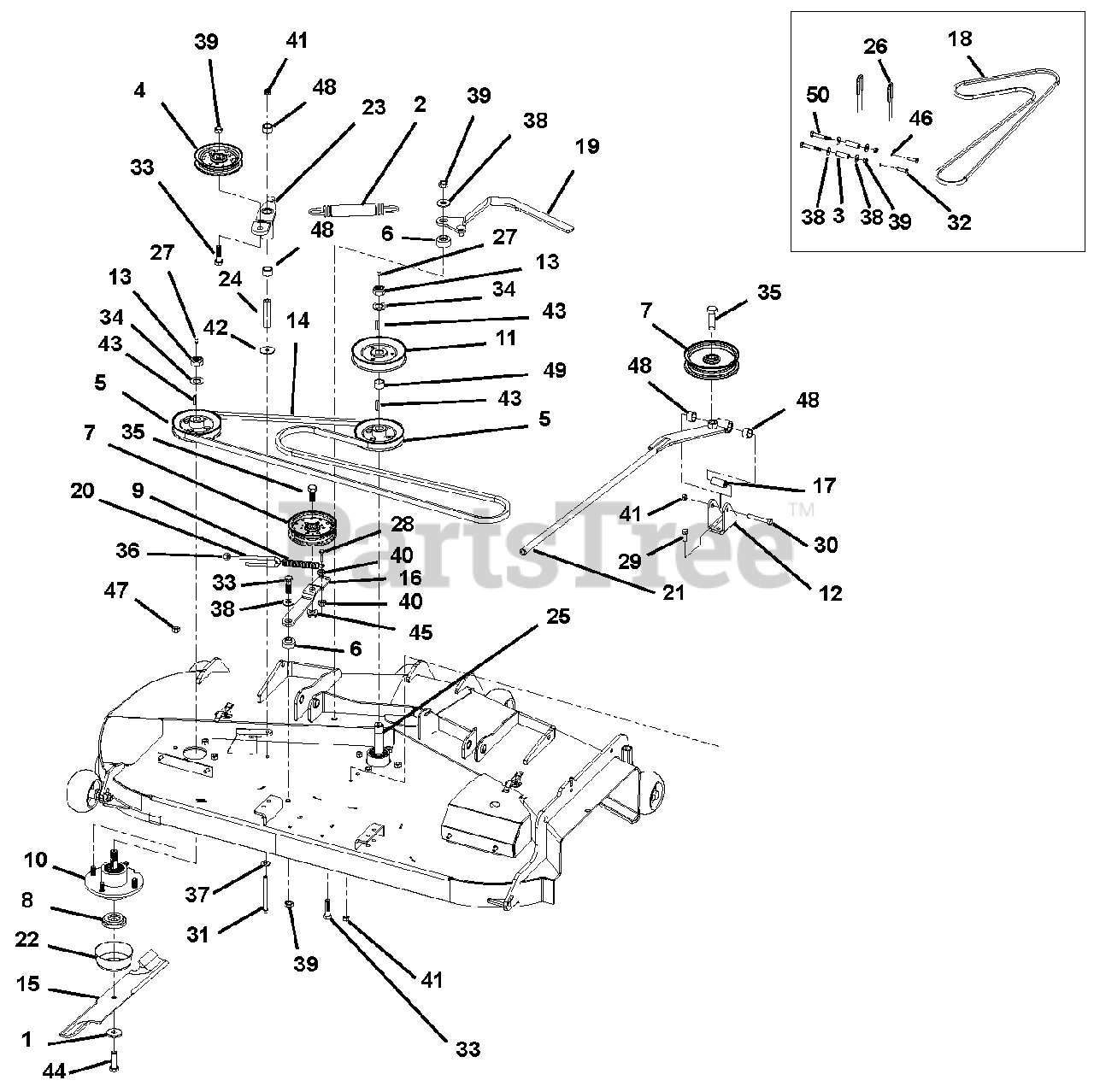

Belts, Idlers and Blades Parts Diagram

  • Title

1

Gravely 00103906

WASHER, M14XM40XM4.5 FLAT Y

$10.99

$

In Stock, only 2 left!

0

2

Gravely 00104657

SPRING, EXT 1.18X.177X7.50 Y

$30.99

$

In Stock, only 1 left!

0

3

Gravely 03856600

TUBE, RD .750 X.125W X 2.469

$20.99

$

Usually ships in 4-12 days

0

4

Gravely 00112614

PULLEY, V-BELT 5.00X.510 W/BRG

$76.99

$

In Stock, only 4 left!

0

5

Gravely 07300011

SHEAVE, 5.00 SPINDLE (1.00ID)
(Superseded to 07331167)

Note: (1.00 ID)

$82.99

$

In Stock, Qty 5

0

6

Gravely AA160100

SPACER, .516 X .750 X .853 Y

$10.99

$

In Stock, only 2 left!

0

7

Gravely 00162146

PULLEY, FLAT 5.00X.635 W/BRG

$79.99

$

In Stock, Qty 14

0

8

Gravely 00162779

SPCR, BLADE

$38.99

$

In Stock, only 2 left!

0

9

Gravely 00162801

SPRING, EXT .750X.125X4.50 Y

$31.99

$

In Stock, only 2 left!

0

10

Gravely 00181917

ASSY, SPINDLE 1"SHORT SHFT S/O

Note: (includes items 27 and 43) (outside spindles)

$455.99

$

In Stock, only 1 left!

0

11

Gravely 00181823

PULLEY, V-BELT 6.57X1.00 W/KEY

Note: (992221)

$90.99

$

In Stock, only 4 left!

0

Gravely 00181911

PULLEY, V-BELT 7.21X1.00 W/KEY

Note: (992222)

$86.99

$

Usually ships in 4-12 days

0

Gravely 07300534

PULLEY, V-BELT 6.00X1.00 W/KEY

Note: (992220)

$85.99

$

Usually ships in 4-12 days

0

12

Gravely 03823051

PLATE, PIVOT ANCHOR BENT

$55.99

$

Usually ships in 4-12 days

0

13

Gravely 00181818

NUT, 1-14 THIN PATTERN NYLOCK

$10.99

$

In Stock, only 2 left!

0

14

Gravely 00112616

BELT, HB 123.0 OC PES OHR

Note: (992221)

$67.99

$

In Stock, Qty 14

0

Gravely 00181711

BELT, HB 131.0 EL AMD

Note: (992222)

$99.99

$

In Stock, only 2 left!

0

Gravely 00181036

BELT, B112

Note: (992220)

$55.99

$

In Stock, only 2 left!

0

15

Gravely 00181026

BLADE, 20.940 X 1.00 LIFT

Note: (992221)

$34.99

$

In Stock, Qty 20+

0

Gravely 00181940

BLADE, 23.00 X 2.5 1.00 LIFT

Note: (992222)

$37.99

$

In Stock, only 4 left!

0

Gravely 00181042

BLADE, 19.000 X 1.00 LIFT

Note: (992220)

$35.99

$

Usually ships in 4-12 days

0

16

Gravely 03799551

ARM, BELT TENSIONER

Note: (992221, 222)

$43.99

$

In Stock, only 2 left!

0

Gravely 03822951

ARM, BELT TENSION 54"

Note: (992220)

$50.99

$

Usually ships in 4-12 days

0

17

Gravely 00181062

SPANNER

$45.99

$

Usually ships in 4-12 days

0

18

Gravely 00181715

BELT, HB 114.9 EL AMD

$91.99

$

In Stock, Qty 20+

0

19

Gravely 03799351

WLDT, TENSION ARM

$51.99

$

Usually ships in 4-12 days

0

20

Gravely 00181194

U-BOLT, RD .63X4.50X3/8-16SP Y

$7.99

$

Usually ships in 4-12 days

0

21

Gravely 03853600

ASSY, OFFSET ARM

Note: (includes item 48)

$152.99

$

Usually ships in 4-12 days

0

22

Gravely 00181288

CAP, SPINDLE

$20.99

$

In Stock, only 2 left!

0

23

Gravely 03853500

ASSY, DECK IDLER

Note: (includes item 48)

$121.99

$

In Stock, only 2 left!

0

24

Gravely 00191347

TUBE, RD .750 X .156 X 3.05

$22.99

$

In Stock, only 1 left!

0

25

Gravely 00181910

ASSY, SPINDLE 1" LONG SHFT S/O

Note: (includes item 27) (center spindle)

$455.99

$

In Stock, only 1 left!

0

26

Gravely 00181485

U-BOLT, RD 1.00X3.00X3/8-16 Y

$12.99

$

In Stock, only 1 left!

0

27

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$4.99

$

In Stock, only 2 left!

0

28

Gravely 00960024

BOLT, 5/16-18X1.25 HEX 5 Y
(Superseded to 05947500)

$3.49

$

In Stock, Qty 12

0

29

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

30

Gravely 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.49

$

In Stock, Qty 20+

0

31

Gravely 05981900

@BLT-HEX .38-16X4.25 GR5 YWZC
(Superseded to 05902024)

$5.99

$

In Stock, only 2 left!

0

32

Gravely 05982100

@BLT-HEX .44-14X1.75 GR5 YWZC
(Superseded to 05901828)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 05970600

@BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$5.49

$

In Stock, Qty 16

0

34

Gravely 00960711

WASHER, 1.062X1.75X0.100 Y

$4.99

$

In Stock, Qty 5

0

35

Gravely 05968700

@BLT-HEX .62-11X1.50 GR5 YWZC

$4.99

$

In Stock, Qty 9

0

36

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.99

$

In Stock, Qty 20+

0

38

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 20+

0

39

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$4.99

$

In Stock, Qty 5

0

40

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

41

Gravely 06508000

NUT-LK-FLG .375-16 PL

$5.49

$

Usually ships in 4-12 days

0

42

Gravely 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.99

$

In Stock, Qty 20+

0

43

Gravely 00966045

KEY, .250 X .250 X 1.00 SQ

$3.99

$

In Stock, Qty 8

0

44

Gravely 05985600

BLT-HEX .56-12X1.75 HEX 8 YWZC

$6.99

$

In Stock, Qty 19

0

45

Gravely 06500509

SRATD FLNG HEX NUT 5/8-1 44412

$5.49

$

In Stock, Qty 16

0

46

Gravely 06530004

NUT-FLANGED WHIZ .438-14 YWZC

$2.99

$

Usually ships in 4-12 days

0

47

Gravely 06500434

HEX NUT 7/16-20 UNF CP 15609

$5.49

$

In Stock, only 3 left!

0

48

Gravely 00105546

BRG, SLV .753X.878X.750

$7.99

$

In Stock, Qty 14

0

49

Gravely 00181822

SPACER, ?1.01 X ?1.25 X .635 Y

$20.99

$

In Stock, only 2 left!

0

50

Gravely 00960122

BOLT, 1/2-13X3.50 HEX 5 Y
(Superseded to 05965800)

$5.99

$

In Stock, only 3 left!

0
